Summary of Contents for UFO UFO-R/UKL2

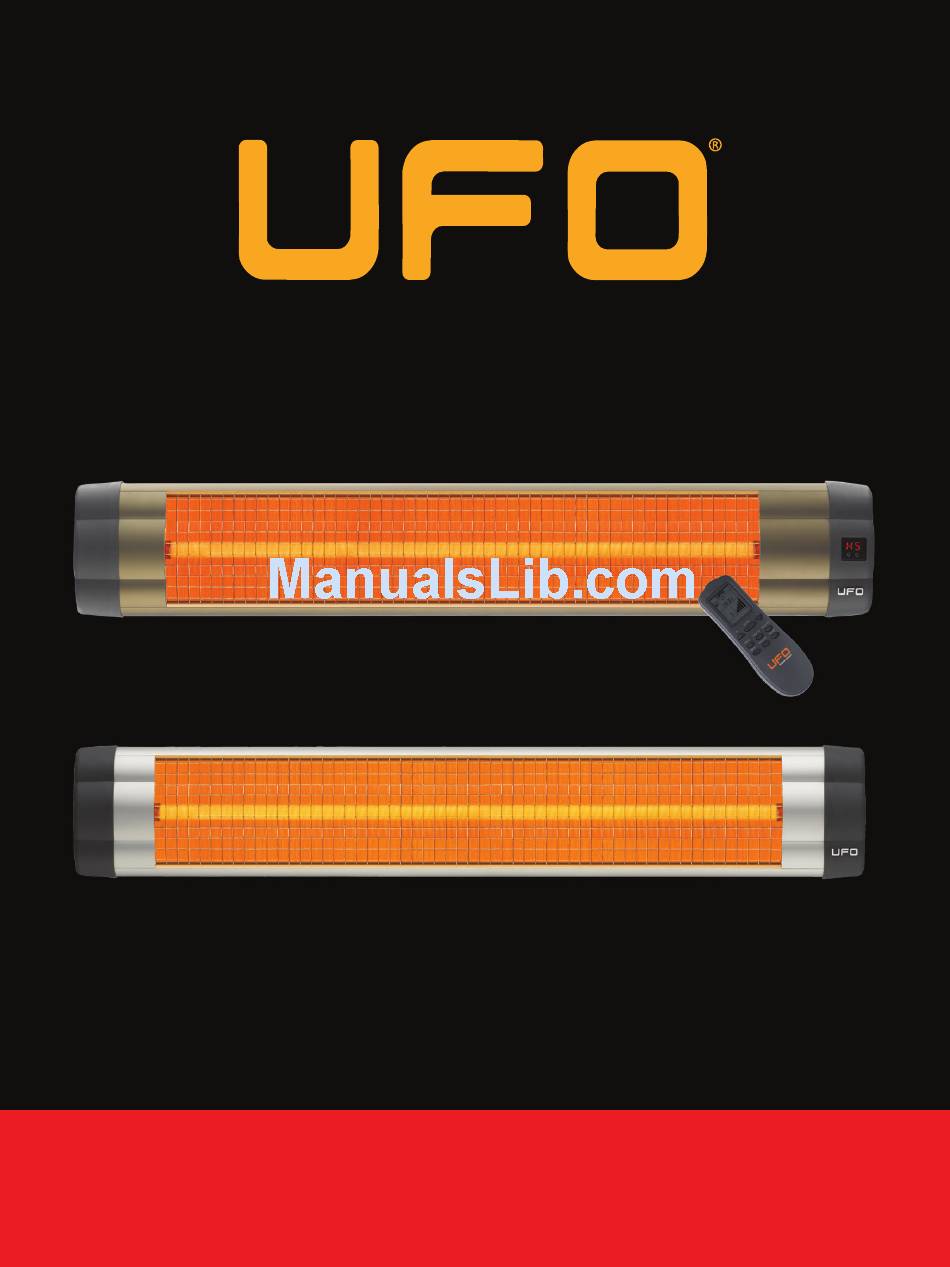

- Page 1 INFRARED TECHNOLOGY UFO user manual WARNING! UFO user manual Do not use the heater in vertical position...
- Page 2 We would like to express our gratitude to you for your appropriate choice and confidence in UFO. This manual has been designed for our UFO Star (UFO-E) and UFO UK (UFO-R) models. Please read this manual thoroughly in order to attain a sustainable satisfaction with your heater.
-
Page 3: Table Of Contents
6.2.2 Definition and Functions of the Indicators on the Remote Control ..12 6.2.3 Operation of the Remote Control ............13 6.2.4 Control through the main module on the heater........15 7. DIFFERENCES AMONG UFO MODELS AND SPECIFICATIONS ......16 8. MAINTENANCE AND CLEANING INSTRUCTIONS ..........17 8.1 MAINTENANCE .................... 17 8.2 CLEANING .................... -
Page 4: Safety Instructions
- The 220~240V heaters are equipped with a NEMA 6-20 power cord and plug and must be connected to a 20A breaker. • Attention! Do not use your UFO heater together with another appliance plugged to the same multiple sockets or connected to the same breaker. -
Page 5: Installation Distances And Safety Clearances
IP34 protection class are insulated and, due to such feature, they can safely be used in exterior environment. UFO products without IP logo are not designed for outdoor use. Thus they should be installed away from rain or snow. -
Page 6: Installation Instructions
3. INSTALLATION INSTRUCTIONS 3.1 Installation Instructions Attention! The appliance must be installed at level on solid surfaces. See pages 4-7 to come up with the most appropriate installation method for your UFO. Figure 2 Figure 1 Figure 3 1. Drill four 8 mm (5/16’’) diameter holes on the wall to the place where the unit will be placed with the distances shown in (Figure-1) 2. -
Page 7: Minimum Installation Distance
3.2 Minimum installation distances Wall installation Table 1 Power 1800- <1800 >2800 (Watts) 2800 40 cm 60 cm 70 cm (16") (24") (28") Ceiling installation Minimum distances from fixtures and other equipments UFO user manual... -
Page 8: Installation Position
Direct your heater towards the most appropriate angle. Do not point your heater to the windows or vacant spaces since infrared heater is designed to directly heat people and objects in line with the unit. WRONG WRONG WRONG RIGHT RIGHT RIGHT UFO user manual... -
Page 9: Application Fields
4. APPLICATION FIELDS Application fields of UFO heaters Residential applications Living room Family room Entrance way Office Workshop Garage Solarium Indoor pool and spa Commercial applications Office Meeting room Entrance way Shopping centre Showrooms Swimming pool Classroom Conservatories Factories and production plants... -
Page 10: Heaters Dimensions And Heating Area
5. HEATERS DIMENSIONS AND HEATING AREA UFO UK (UFO-R) Heating Area Dimensions Volts Hertz Power Weight Models Outdoor Indoor (Hz) (Watts) (kg) (in.) (in.) (in.) Min. 1020 Min. 6 (65) Min. 9 (97) UFO-R/UKL2 Max. 1700 Max. 10 (108) Max. 15 (161) -
Page 11: Operating Instructions
6. OPERATING INSTRUCTIONS 6.1 UFO Star (UFO-E) Heat control by the regulator The regulator adjustment is conducted in accordance with required room temperature. The heater operates constantly when the regulator is in the highest mode. Switch the regulator on the highest mode to heat the cold rooms. When desired room temperature has been attained, the heater may be operated with certain intervals adjusting the regulator. -
Page 12: Ufo Uk (Ufo-R)
Pull out the batteries in case of long terms of disuse to prevent leakage which may impair your remote control. The screen of the remote control starts functioning after inserting the batteries. UFO logo and flashing clock indicator starts appearing on the screen. - Page 13 6.2.1 Definitions and fucntion of the indicators on the remote control Symbol Description Power mode indicator Time settings indicator On time indicator Off time indicator Indicates remaining time to switch off the heater Indicates that “'everyday” function is on Logo UFO user manual...
-
Page 14: Definitions Of The Buttons On The Remote Control
Make the heater operate in preset parameters everyday. 8. Cancel Cancels all settings. 9. LCD (Liquid Cristal Display) Display the settings of the remote control and related indications. Attention! Insert the batteries in the remote control before use. UFO user manual... -
Page 15: Operation Of The Remote Control
Press « Timer On » button to save your settings. Timer Off Settings: Press « Timer Off » button. Press « » button to set hour and minutes. Press « Timer Off » button to save your settings. UFO user manual... - Page 16 • Once you set your On/Off time, such functions will operate in daily set times. • The heater is to be in stand by mode to operate On timer. • Clock and UFO logo keeps functioning in stand by mode. UFO user manual...
-
Page 17: Control Through The Main Module On The Heater
/ reconnect the heater and put it back in a horizontal position. The heater starts functioning in stand by mode after a power outage. LED keeps flashing in case of a program set by remote control. Buzzer signal is given following each command. Power level On/OFF Power mode UFO user manual... -
Page 18: Differences Among Ufo Models And Specifications
7. DIFFERENCE AMONG UFO MODELS AND SPECIFICATIONS Models Star (UFO-E) (UFO-R) INFRARED TECHNOLOGY Naturel Body color Champagne Warranty 3 years ± 8000h Element service life* ± 9000h Plastic cover Holley Outdoor use IP34 Power cord length 2.75 m Remote control... -
Page 19: Maintenance And Cleaning Instructions
1- Before any maintenance or cleaning of your heater, be sure to unplug the power cord for your safety. 2- To clean the reflector or the element of your UFO infrared heaters remove the grid of the unit. To do so, unscrew the plastic cover of the housing using a star screwdriver (Philips). -
Page 20: Technical Service
If the plug lacks power, consult to an electrician. 2. Make sure that the appliance has been installed in accordance with the instructions in the manual. If the installation is inaccurate, consult the technical service. UFO user manual... -
Page 21: Terms Of Warranty
This warranty will become void if the serial number, model number identification, or brand have been wholly or partially removed or erased. PRODUCTEUR UFO Işikla Isitma SIST. SAN. ve TIC. LTD. Şti. San. 1 Bulvari 4. Bölge 9. Cadde 72. Sk. - Page 22 Notes UFO user manual...
- Page 24 SUN Pazarlama Elk. Makina. Tic. Ltd. Şti. Distribué par / Distributed by: 180, 3 Avenue, L’Islet (Québec) G0R 2C0 CANADA Phone: 1 800 463-7043 • 418 247-3947 Fax: 1 800 662-7801 • 418 247-7801 info@ouellet.com • www.ouellet.com...
