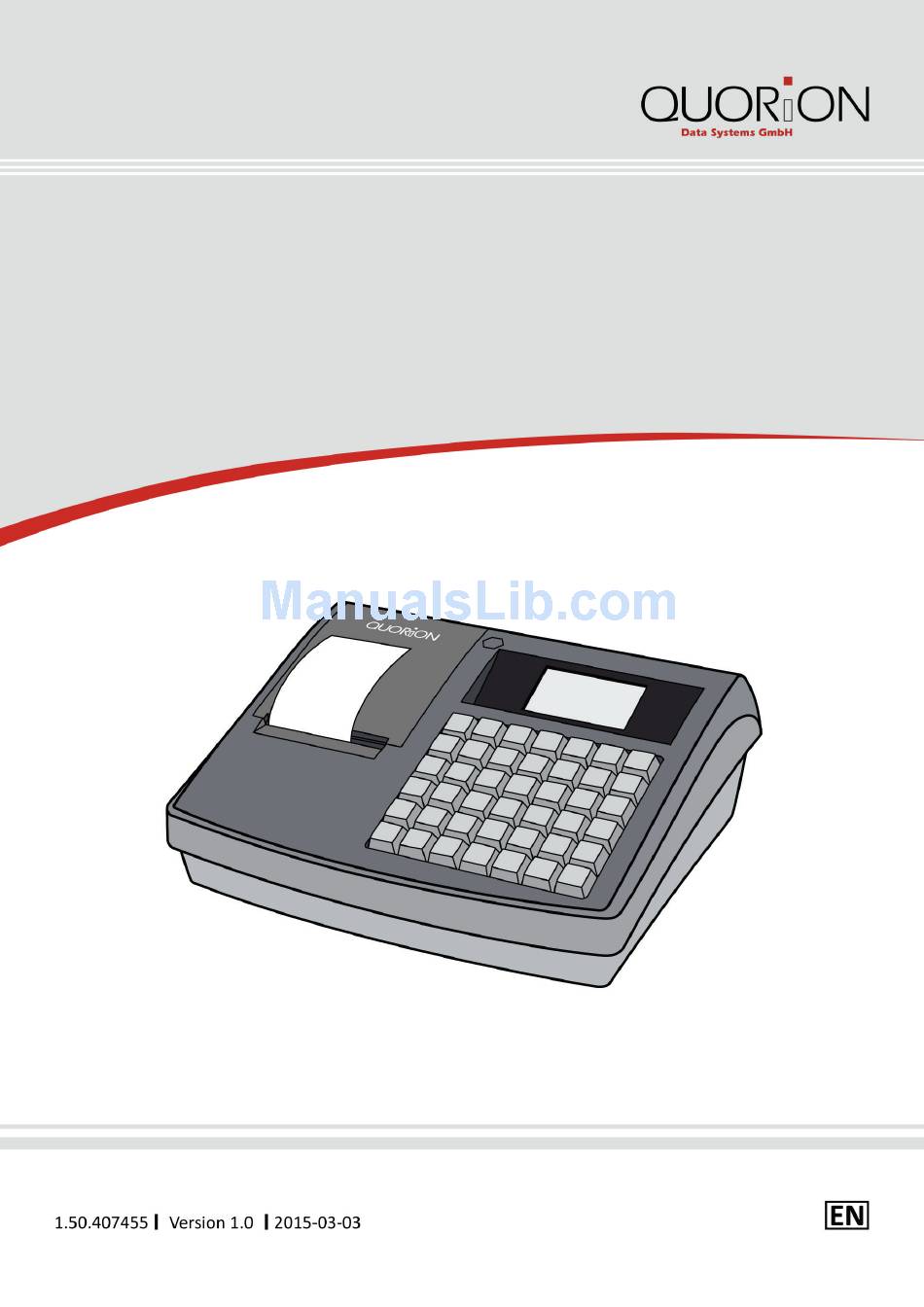

- Page 1 Operating Manual QMP 18...
- Page 2 Original operating manual The information contained in this document is property of QUORiON Data Systems GmbH. Publishing its content, either partially or in full, requires the permission of QUORiON Data Systems GmbH. © 2015 QUORiON Data Systems GmbH Subject to error and modification...
- Page 3 The QUORiON QMP 18 is fully customizable and yet simple to operate. Users can easily adapt it to any type of retail/scanning or hospitality system. Moreover, our dynamic software generates a compatible environment for a wide array of peripheral devices.
-
Page 4: Table Of Contents
Intended Use........................8 General Safety Precautions ..................... 9 CE Declaration of Conformity ..................10 Scope of Delivery ....................11 Product Description .................... 12 Overview QMP 18 ......................12 Type Label ........................13 Technical Data ......................14 Interfaces ........................15 Commissioning ....................16 Connect the POS System to the Power Supply ............... - Page 5 Names of Keys and their Functions ................19 Operating Modes ......................20 Cleaning and Maintenance ................. 21 Decommissioning ....................22 Switching off the POS System ..................22 Disconnect the POS System from the Power Supply ............22 Disposal....................... 23 QMP 18...
-
Page 6: Information On This Document
Information on This Document Information on This Document Validity This document is valid for device type QMP 18. This document is intended for end users. Additional Information Additional information can be found in the support area at www.quorion.com: Category Content Documentation ─... -
Page 7: Pictograms Used
Click the button Operating Mode (C) in the status bar. italic opens the menu Function Mode ─ Menus ─ ─ Dialog boxes 1.3.6 Nomenclature Complete designation Designation in this document QMP 18 POS system (Point Of Sale system)/product QMP 18... -
Page 8: Safety
Any cause of disorder, especially when affecting the safety, must be eliminated immediately! The enclosed documentation is an integral part of this product. The operating manual must be read and observed. Keep this manual and distribute the product only with the manual and the accessories supplied to third parties. QMP 18... -
Page 9: General Safety Precautions
Risk of accident due to electric shock or fire The use of accessories or spare parts that have not been approved by QUORiON as well as inappropriate use of the POS system and its components may result in accidents in which people can be seriously injured or killed. -
Page 10: Ce Declaration Of Conformity
QUORiON Data Systems GmbH. QUORiON Data Systems GmbH confirms herewith that the POS system described in this documentation is in compliance with the fundamental requirement and other relevant provisions of the below-mentioned directives. -
Page 11: Scope Of Delivery
Figure 1: Components included in the scope of delivery Position Quantity Designation Power adapter Cover cap Receipt roll POS system Power cord Key caps Operating manual QMP 18... -
Page 12: Product Description
Product Description Product Description Overview QMP 18 Figure 2: Components QMP 18 Position Designation Printer cover Operator display Power button Keyboard (42 keys) Interfaces Customer display QMP 18... -
Page 13: Type Label
The type label clearly identifies the POS system. The type label is located on the rear side of the housing. You will require the information on the type label, when seeking customer support from your specialized distributor. Figure 3: Type label QMP 18 Position Designation Manufacturer address Symbol indicates separate collection of electrical and electronic equipment. -
Page 14: Technical Data
2,0 kg Power Supply Primary: 100 – 240 V AC, 1.0 A Secondary: 9.5 V DC, 3.0 A Operating Temperature 0°C – + 45°C Storage Temperature - 20°C – + 60°C Humidity Range up to 95% (not condensing) QMP 18... -
Page 15: Interfaces
Product Description Interfaces The QMP 18 is equipped with two RS232, one USB device and one cash drawer interfaces. The RS232 ports are used to connect peripheral devices like scanner, display, QuoriLog etc. The USB port is only prepared for PC communication. It is not to be used with USB devices, like memory sticks, scanners, printers etc. -
Page 16: Commissioning
Connect the POS system to the electrical outlet. The POS system is properly connected to the power supply. Install Receipt Roll Procedure: Open the printer cover. For this purpose fold the printer cover forwards (A) and lift it upwards from the lower brackets (B). QMP 18... - Page 17 The easy load cover locks in place audibly. Close the printer cover. For this purpose insert the printer cover in the lower brackets (F) and fold the printer cover backwards (E). The Receipt roll is properly installed. QMP 18...
-
Page 18: Switching On The Pos System
Commissioning Switching on the POS System Procedure: Switch the POS system on by pressing and holding the power button (A) for 3 seconds. The POS System loads the POS software. QMP 18... -
Page 19: Operation
Names of Keys and their Functions HINT! For detailed description of all operating functions of your POS system with factory settings and information for individual configuration, refer to the operating instructions of the QMP software on www.quorion.com ( Chapter 1.2, p. 6). Key label... -
Page 20: Operating Modes
– – Z – – ─ shows and prints of all reports with clearing Manager – MGR – ─ all sales operations and registrations ─ easy programming Programming – – P – – ─ programming of all functions QMP 18... -
Page 21: Cleaning And Maintenance
HINT! The POS system does not contain any components, which can be serviced or repaired by the user. Please have all maintenance performed by a qualified QUORiON distributor. Unauthorized manipulations may lead to a loss of warranty. To clean your POS system, please use a lint-free dry cloth. -
Page 22: Decommissioning
Switch off the device before disconnecting any peripheral devices. Procedure: Disconnect the POS system from the electrical outlet. Disconnect the power adapter from the POS system. Disconnect the power cord from the power adapter. The POS system is properly disconnected from the power supply. QMP 18... -
Page 23: Disposal
The incorrect disposal of this type of waste can have negative effects on environment and health, due to potential hazardous substances in electrical and electronic devices. Dispose of the device at a suitable collection point. For more details on available collection points, please contact your specialized distributor. QMP 18...
