Fitting The Plinth - Currys Essentials CIR60W10 Instruction & Installation Manual

7. Once alignment is achieved , t the domed
headed nuts.
domed headed nuts
fridge door

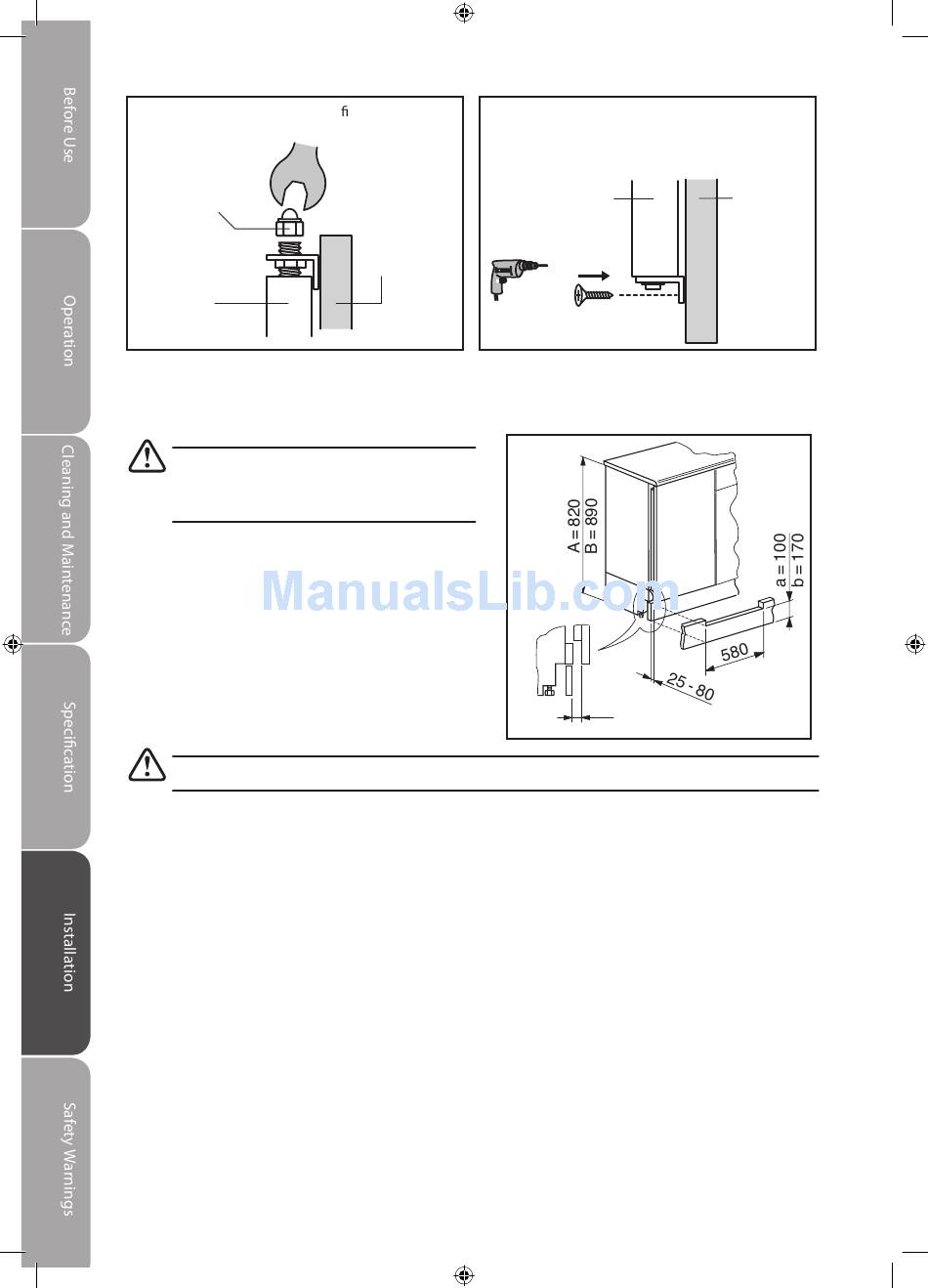

Fitting the plinth

For the efficient operation of the appliance, it
is important that the original ventilation grid
is used.
• For an opening height dimension A=820 mm and
a plinth height dimension a=100 mm, the plinth
may be fitted without adjustments. The same
applies to an opening height dimension B=890
mm and a plinth height dimension b=170 mm.
• For plinth heights greater than a=100 mm, b=170
mm, a cut should be made in the plinth, 580 mm
wide, in the centre of the appliance position,
leaving a remaining height of a=100 mm, b=170
mm. Attach plinth to the kitchen units.
The plinth must be positioned at a minimun distance of 25 mm from the door.
GB-18
Currys Essentials CIR60W10_IB_101006.indd 18
8. Open the fridge door and screw the bottom of
the aesthetic door to the lower connecting
block. Remember to predrill the holes Ø28mm
to a depth of 10mm.
aesthetic door
Ø2.8mm
10mm
fridge door
screw
25
aesthetic door
