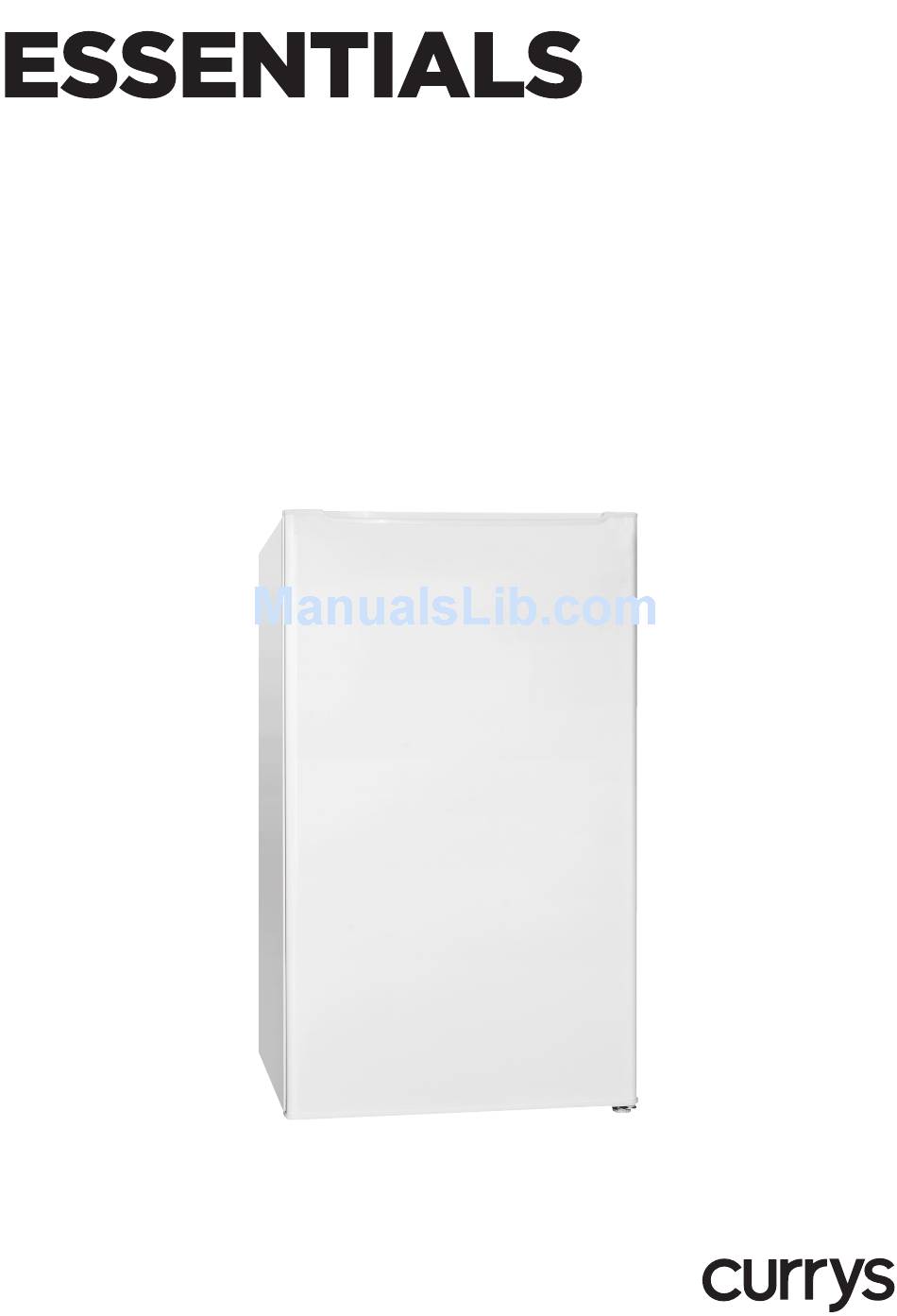

- Page 1 INSTRUCTION MANUAL 50CM UNDERCOUNTER LARDER CUL50W12...
-
Page 3: Table Of Contents
Contents Safety Warnings ............................. 4 Unpacking ..............................6 Installation ..............................7 Location......................................7 Levelling the Unit..................................7 Free Space Requirements ................................7 Reversing the Door Swing ................................. 8 Cleaning Before Use ..................................9 Before Using Your Unit ................................9 Product Overview ............................10 Operation .............................. -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Unpacking
Thank you for purchasing your new Currys Essentials Larder. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Installation
Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 8: Reversing The Door Swing
INSTALLATION Reversing the Door Swing Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. -
Page 9: Cleaning Before Use
INSTALLATION 1 Upper hinge cap 2 Upper screws & upper hinge bracket 3 Plug 4 Lower screws, levelling front leg & lower hinge bracket 5 Levelling front leg 6 Shaft Sleeve * All images are for reference only; please refer to your individual unit for actual item. -
Page 10: Product Overview
Product Overview Internal Light and Thermostat Control Dial Door Glass Shelves Shelves Lower Glass Shelf Salad Bin Levelling Feet... -
Page 11: Operation
Operation Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position 0. This is located on the right side of the cabinet. Connect the mains cable to the mains socket. -
Page 12: Cleaning
Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. •... -
Page 13: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. To change the light bulb (220-240, max. 15W), undo the screw. 3. Press the light bulb cover as shown and slide it backwards. -
Page 14: Specifications
Specifications Model CUL50W12 Fresh Food Storage Compartment 102L Volume Storage Temperature 0 - 8°C, average ≤ 4°C Energy Consumption 0.309kWh / 24h Energy consumption 113 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 16 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
Need help?
Do you have a question about the CUL50W12 and is the answer not in the manual?
Questions and answers
The bulb stopped working and the bulb holder was very black tried new bulb but wont light fridge is still working
If the new bulb does not light in the Currys Essentials CUL50W12 fridge, the issue could be a faulty bulb holder. Other possible causes include a disconnected or damaged power supply, incorrect bulb type, or a defective switch.
This answer is automatically generated
