Summary of Contents for Currys Essentials CIR60W12

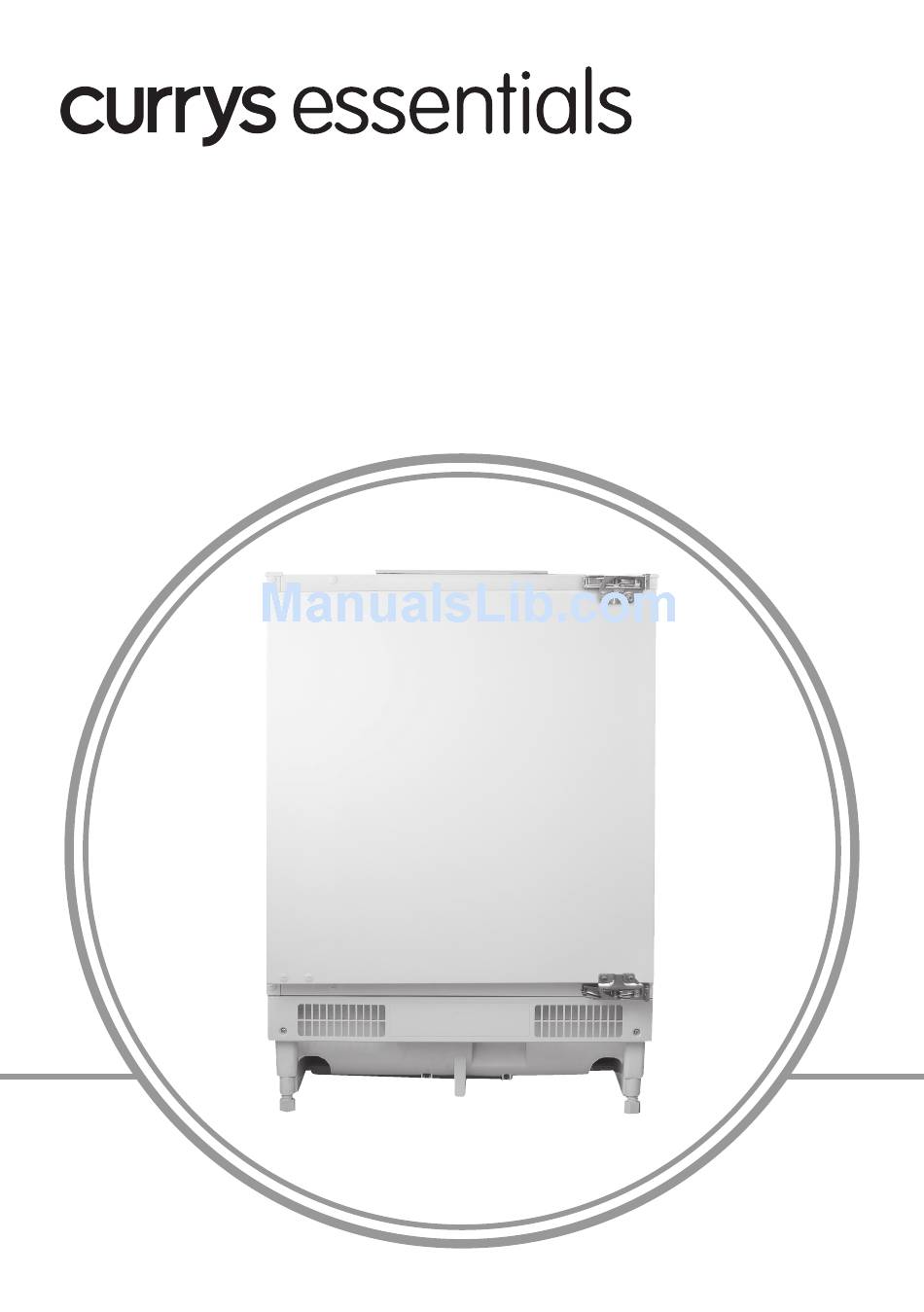

- Page 1 BUILT- IN STANDARD FRIDGE IN S T R U C T I O N / IN STAL L ATI ON MA N UAL C I R 6 0W 12...
-
Page 2: Table Of Contents
Contents Unpacking ............................ 3 Location ..................................4 Reversing the Door Swing ........................... 4 Reversing the Freezer Compartment Door Swing ..................7 Height Regulation ..............................8 Installation of the Unit Under the Worktop ....................8 Fastening the Unit Under the Worktop ......................8 Mounting the Kitchen Cabinet Door .................. -
Page 3: Unpacking
Thank you for purchasing your new Currys Essentials Built-In Standard Fridge. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 4: Location
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 5 INSTALLATION 2. Remove the 4 blanking plates from the outside of the fridge door. 3. With the door closed remove the screws on the outside of the hinges. Start with the top hinge. 4. Open the hinges away from the door. 5.
- Page 6 INSTALLATION 7. Remove the 4 blanking plates from the fridge cabinet. 8. Turn the hinges over and place them on the diagonally opposite corner of the cabinet. Screw them back in place. Replace all the blanking plates on the opposite side of both the cabinet and the fridge door.
-
Page 7: Reversing The Freezer Compartment Door Swing
INSTALLATION Reversing the Freezer Compartment Door Swing 1. Open the freezer compartment door a little way. Using a small screwdriver, press the spring in the opening of the lower door bearing slightly upwards and take the door bearing out complete with the door. -
Page 8: Height Regulation
INSTALLATION Height Regulation min 580 820 - 900 820 - 900 820 = 100 - 170 900 = 180 - 250 25 - 80 Installation of the Unit Under the Worktop Fastening the Unit Under the Worktop Screw the unit to the worktop using the screws provided (3 x ST4.2 screws). -
Page 9: Mounting The Kitchen Cabinet Door
INSTALLATION Mounting the Kitchen Cabinet Door 1. Fit both the double threaded bolts to the top of the fridge door. Leave a gap of 2mm between the double threaded bolt and the top of the fridge door. Double Double Threaded Bolt Threaded Bolt Fridge Door Fridge Door... - Page 10 INSTALLATION 4. Fit the lower connecting blocks to the bottom of the fridge door. Fridge Door Lower Connecting Block Bolt 5. Hang the aesthetic door onto the fridge door. Aesthetic Door Fridge Door 6. Align the door by adjusting the double threaded bolts.
-
Page 11: Fitting The Plinth
INSTALLATION 8. Open the fridge door and screw the Aesthetic Fridge Door bottom of the aesthetic door to the lower Door connecting block. Remember to predrill the holes Ø2.8 mm to a depth of 10 mm. Ø2.8 mm 10mm screw Fitting the Plinth For the efficient operation of the appliance, it is important that the original ventilation grid is used. -
Page 12: Levelling The Unit
INSTALLATION Levelling the Unit To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 13: Product Overview
Product Overview Upper Rack Freezer Chamber Ice Tray Temperature Regulator Adjustable Glass Shelf Hand Rack Salad Bin Cover Salad Bin Lower Rack Ice Tray... -
Page 14: Operation
Operation Switching On Your Unit 1. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest, position 1 is the warmest and position 0 turns the unit off. 2. -
Page 15: Fast Freezing
Fast Freezing Fresh food should be frozen as quickly as possible. Setting the thermostat to position 7 makes your freezer operate at its coldest (approximately -28°C ). It allows you to quickly freeze your food and retain more of the goodness. Freezing will be complete after 24 hours. After 24 hours turn the thermostat back to the position based on the current environment. -
Page 16: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •... -
Page 17: Cleaning
Cleaning Defrosting Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 18: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always press and turn the thermostat control dial to Position 0, then disconnect the mains supply. 2. Hold and unscrew the light bulb cover. 3. Remove the plastic light bulb cover. 4. -
Page 19: Hints And Tips
Hints and Tips Problems Solutions Check that the power supply is not disconnected. Check the thermostat is not set to “0 ”. Check that the plug is inserted correctly into the mains socket. Appliance operation failure Check that the automatic cut-out on the mains line has not tripped or if a fuse has blown. -
Page 20: Specifications
Specifications Model CIR60W12 Fresh Food Storage Compartment 100L Volume Frozen Food Storage Volume Fridge: 0°C - 8°C, average ≤ 4°C Storage Temperature Freezer: ≤ -18°C Energy Consumption 0.506kWh / 24hours Energy consumption 184 kwh per year, based on standard test results for 24 hours. -
Page 21: Normal Energy Consumption
Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, (radiator, oven). oven). -
Page 22: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Check that the voltage marked on the rating label matches your main voltage. - Page 24 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Adjustable Glass Shelf 9210500713 Salad Bin Cover 9210200424 Salad Bin 9210100143 Egg Tray 21049 Ice Tray 21033 Bottom Wire Rack 9210500718 Upper &...
