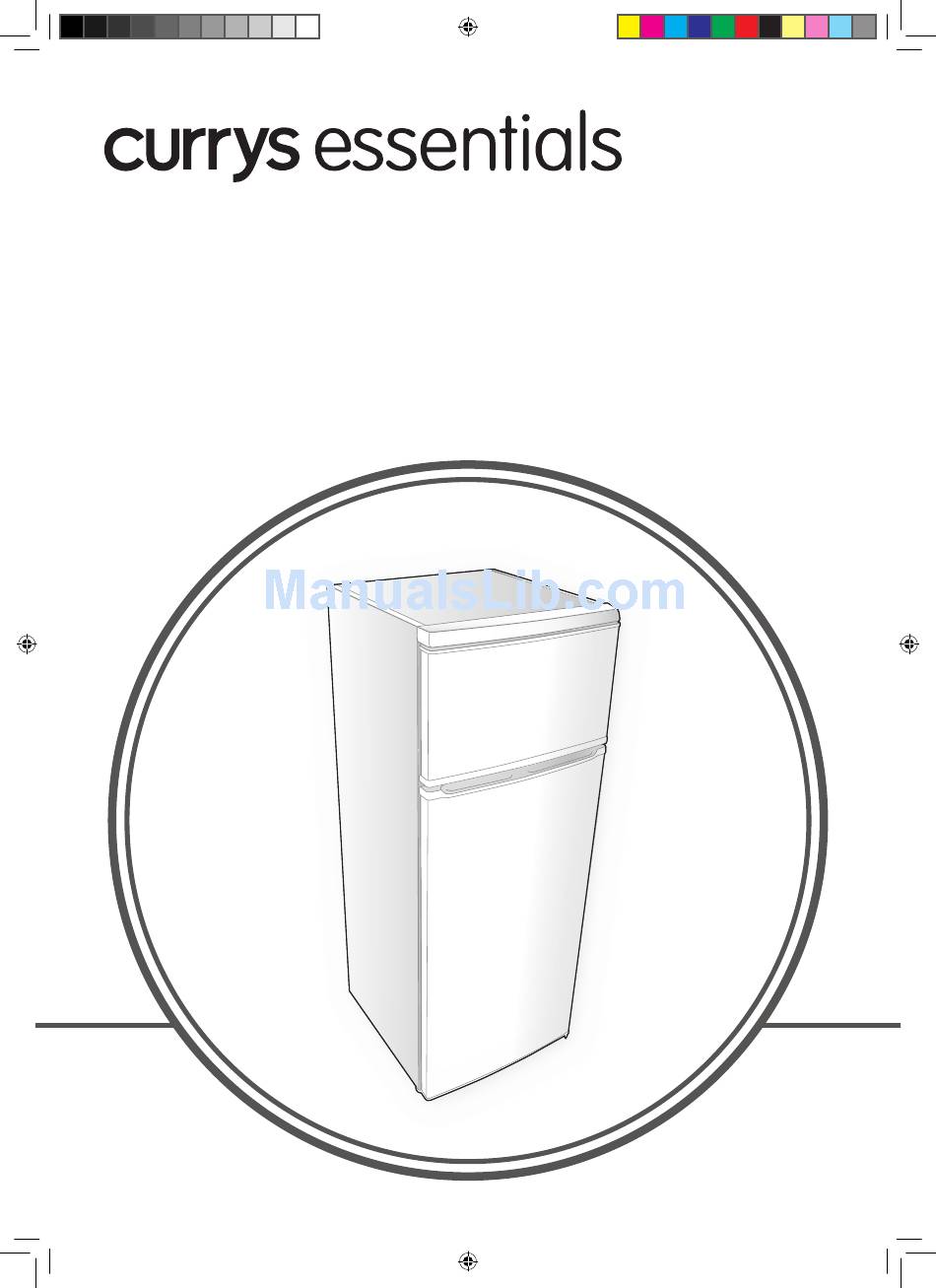

- Page 1 FRIDGE FREE ZER I N ST R U C T I O N MA NUA L C 5 5 T W 1 1 C55TW11_IB_final110325.indd 1 25/03/2011 10:50 PM...
- Page 2 C55TW11_IB_final110325.indd 2 25/03/2011 10:50 PM...
-
Page 3: Table Of Contents
Contents Contents ............................3 Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................8 Cleaning Before Use .............................. 8 Before Using Your Unit ............................8 Product Overview ........................9 Operation ........................... 10 Switching Your Unit On .............................10 Adjusting the Temperature ..........................10 Noises Inside the Unit! ............................11... -
Page 4: Unpacking
Thank you for purchasing your new Currys Essentials Fridge Freezer. You must spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You must read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator (must be at least 50 cm away.) Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Carefully remove the doors by pulling the middle hinge and doors towards you to release the hinge. The top door may need lifting to allow this. Lower the top door off the top hinge pin, Lift the bottom door off the lower hinge pin.
- Page 7 INSTALLATION 7. Swap the top bushing and top bushing cap of the fridge door. The top bushing key must be in the correct position to allow it to be inserted correctly. (If needed, you can use the bushing cap that can be found in the instruction manual bag).
-
Page 8: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. -
Page 9: Product Overview
Product Overview Freezer Door Freezer Shelf Thermostat and Fridge Door Shelf Control Dial Cover Fridge Glass Fridge Door Shelves Shelves Vegetable drawer cover Vegetable Drawer Lower Fridge Door Shelf Egg Tray Ice Tray C55TW11_IB_final110325.indd 9 25/03/2011 10:50 PM... -
Page 10: Operation
Operation Switching Your Unit On 1. Connect the mains cable plug to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are six settings, of which position 5 is the coldest and position 0 turns the unit off. -
Page 11: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 12: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. • Consider how you will want to cook the food before freezing it. -
Page 13: Cleaning
Cleaning Defrosting Frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (supplied). The fridge compartment defrosts automatically during operation. The defrost water is collected by the drain hole at the rear of the fridge (check regularly to ensure the drain hole is not blocked) to the vaporization tray and evaporates. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. Hold both sides of the cover by the fixing clips (top and bottom), sqeeze lightly to release the clips and move away from the side. -
Page 15: Specification
Specification Model C55TW11 Overall Dimension (W x D x H) 540 x 600 x 1440 mm Total Gross Volume 235L Fresh Food Storage Compartment 187L Volume Frozen Food Storage Volume Fridge: Automatic defrost. Defrosting Type Freezer: Manual defrost. Freezer: ≤ -18 °C, Storage Temperature Fridge: 0-8 °C, average ≤... -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • This unit is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;... - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 18 C55TW11_IB_final110325.indd 18 25/03/2011 10:51 PM...
- Page 19 C55TW11_IB_final110325.indd 19 25/03/2011 10:51 PM...
- Page 20 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Fridge Glass Shelf 47003799 Freezer Shelf 47004533 Vegetable Drawer Cover 45001876 Vegetable Drawer 42005036 Egg Tray 42006319 Ice Tray 42031617 Middle Hinge Screw Cap (Big) 42032778...
