Summary of Contents for Currys Essentials C155C

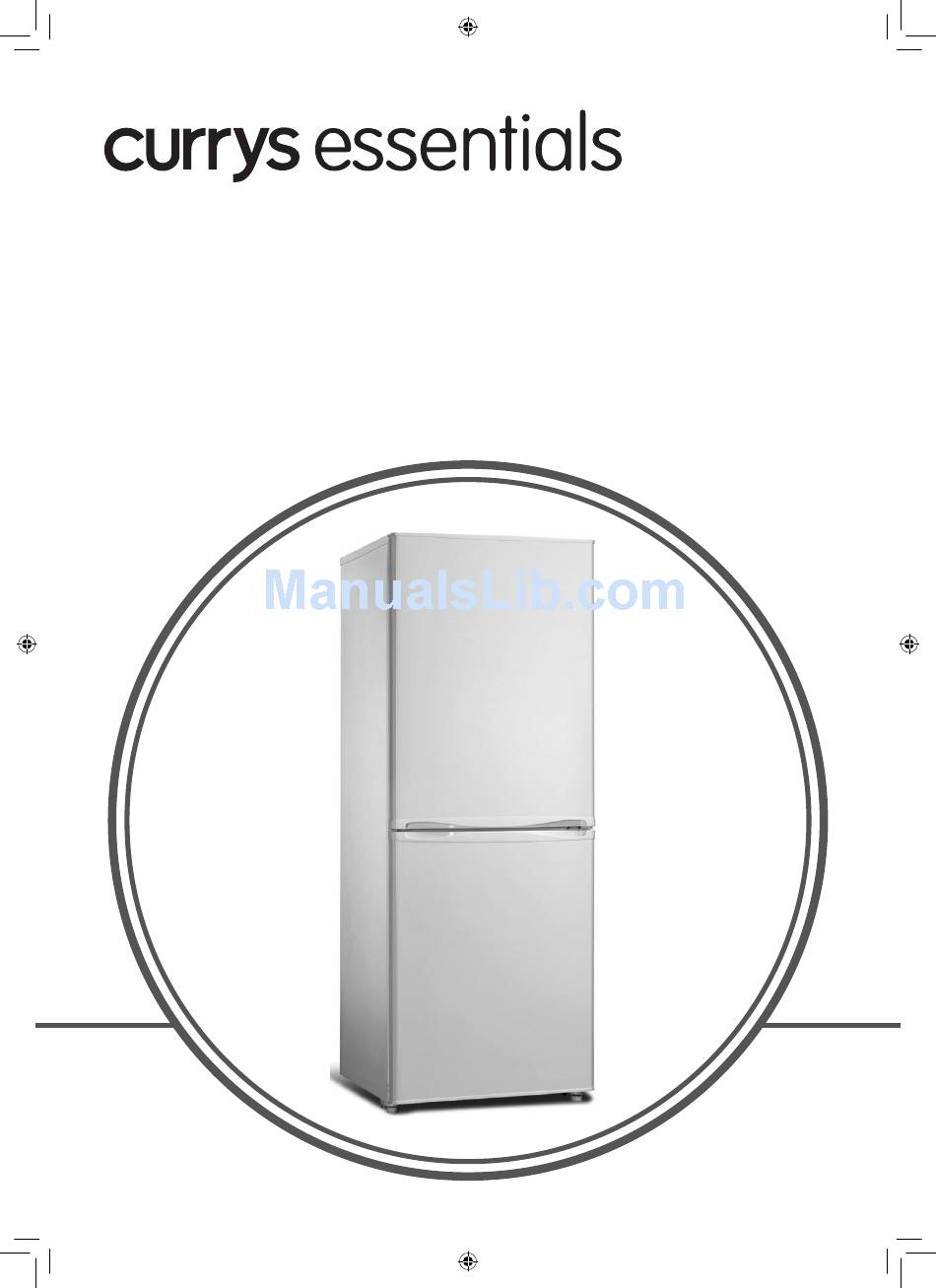

- Page 1 FRIDGE FREE ZER I N ST R U C T I O N MA NUA L C 1 5 5 C W10 C155CW10_IB_final110316.indd 1 16/03/2011 6:02 PM...
- Page 2 C155CW10_IB_final110316.indd 2 16/03/2011 6:02 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................9 Cleaning Before Use .............................. 9 Before Using Your Unit ............................9 Product Overview ........................10 Operation ........................... 11 Switching On Your Unit ............................11 Adjusting the Temperature ..........................11 Noises Inside the Unit ............................12 Shopping for Chilled Foods ..........................12... -
Page 4: Unpacking
Thank you for purchasing your new Currys Essentials Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Lift the top cover away from the unit. 3. Remove the left hinge cover. Insert the right hinge cover. Remove 4. Undo the screws, lift the hinge bracket up and take it off. 5. Remove the bolt with a screwdriver and screw 180°...
- Page 7 INSTALLATION 9. Remove the bottom hinge adaptor from Underside view of the freezer door the freezer door. Move the adaptor to screw unscrew the opposite side. Ensure it is securely located. Insert Remove 10. Tilt the unit carefully. 2 people are required to tilt the unit during the door reversing process.
- Page 8 INSTALLATION 14. Place the fridge door back on. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. 15. Insert the hinge bracket and screw it to the top of the unit.
-
Page 9: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 10: Product Overview
Product Overview Fridge Door Thermostat and Bulb Glass Shelves Door Shelves Salad Bin Freezer Drawers Freezer Door Adjustable Feet Ice Tray Egg Tray C155CW10_IB_final110316.indd 10 16/03/2011 6:02 PM... -
Page 11: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest and position 0 turns the unit off. -
Page 12: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 13: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. • Consider how you will want to cook the food before freezing it. -
Page 14: Cleaning
Cleaning Defrosting Frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper. Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 15: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply. 2. Use a flat bladed screwdriver to gently prise the translucent light cover away. 3. -
Page 16: Specification
Specification Model C155CW10 Overall Dimension (W x D x H) 494 x 555 x 1426mm Total Gross Volume 151L Fresh Food Storage Compartment 100L Volume Frozen Food Storage Volume Defrosting Type Manual Defrost Freezer: ≤ -18 °C, Storage Temperature Fridge: 0-8 °C, average ≤ 4°C Energy Consumption 0.69kWh/24h Energy Grading... -
Page 17: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. • Keep ventilation openings in the unit enclosure clear of obstructions. - Page 18 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 19 C155CW10_IB_final110316.indd 19 16/03/2011 6:02 PM...
- Page 20 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Adjustable Glass Shelf B0691.5-1 Salad Bin B0112.5-6 Small Freezer Drawer B0691.5-3 Large Freezer Drawer B0691.5-2 Egg Tray B0234.5-1 Ice Tray B08120.5-3 Plastic Scraper...
