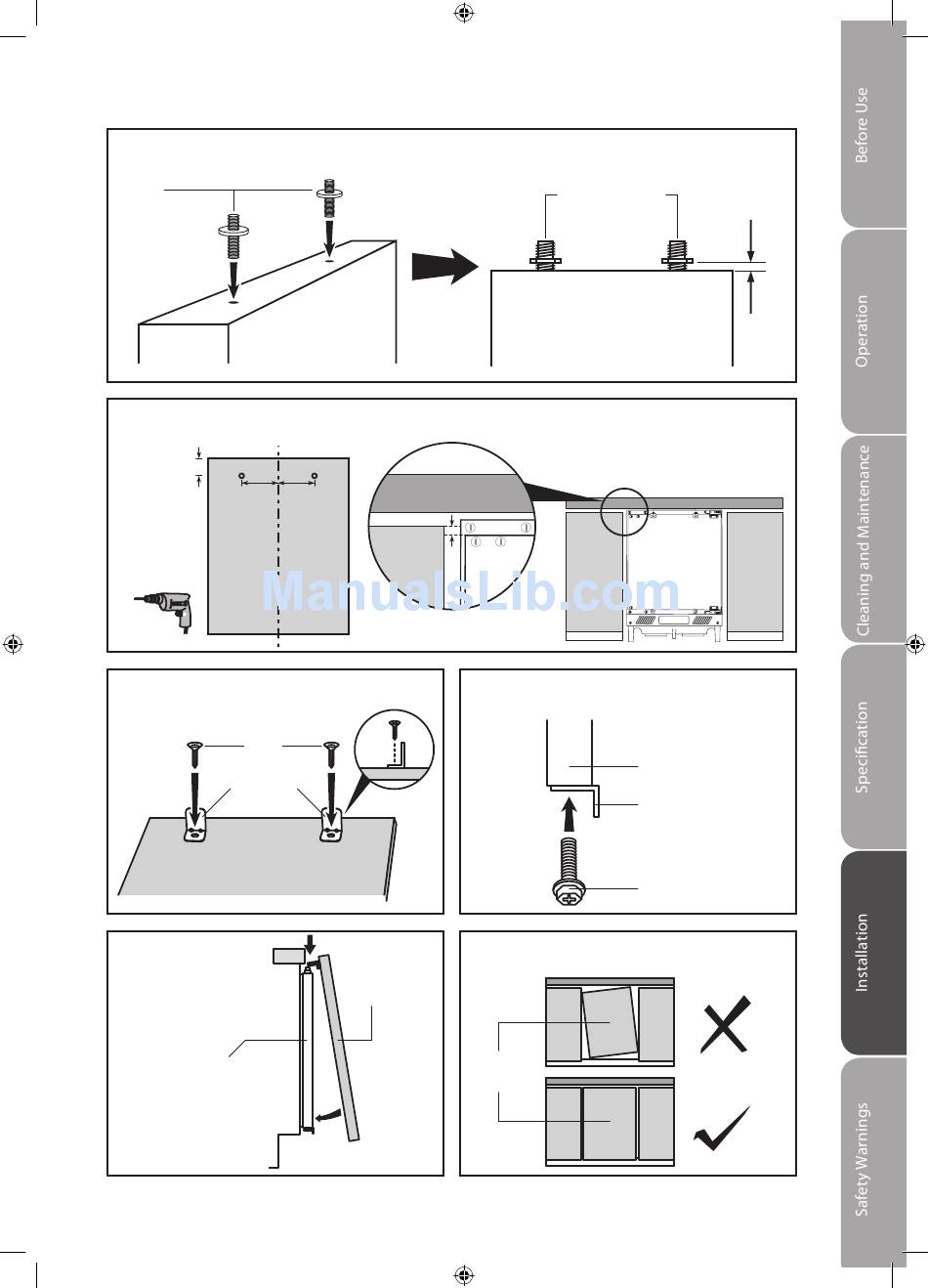

Mounting the kitchen cabinet door
5.
1. Fit both the double threaded bolts to the top of the fridge door. Leave a gap of 2mm between the
double threaded bolt and the top of the fridge door.
double
threaded bolt
2. Drill the holes on the inside of the aesthetic door according to the dimension diagram shown below.
Only drill to a depth of 10mm.
A+9.5mm
Ø2.8mm
10mm depth
aesthetic
door
3. Fit the upper connecting blocks after drilling
holes.
aesthetic door
5. Hang the aesthetic
door onto the
fridge door.
fridge door
7. Once alignment is achieved , t the domed
headed nuts.
Currys Essentials CIR60W10_IB_101006.indd 17
fridge door
130mm 130mm
screw
upper
connecting
block
aesthetic door
double threaded bolt
fridge door
A: the distance between the top of the fridge door to
the top of the adjacent cabinet door.
A
fridge
door
4. Fit the lower connecting blocks to the bottom
of the fridge door.
6. Align the door by adjusting the double
threaded bolts.
aesthetic
door
8. Open the fridge door and screw the bottom of
the aesthetic door to the lower connecting
block. Remember to predrill the holes Ø28mm
to a depth of 10mm.
2mm
fridge door
lower connecting
block
bolt
