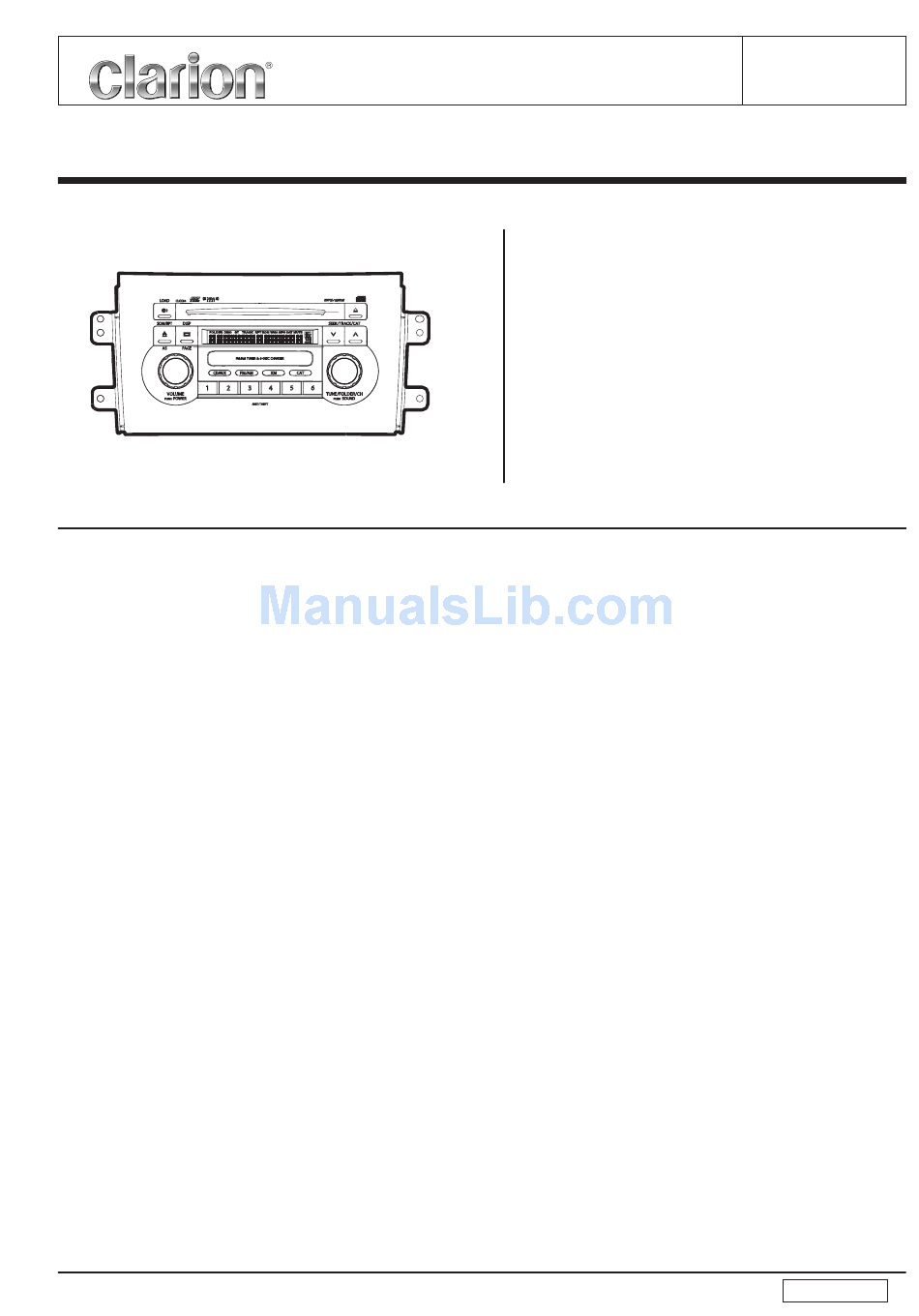

Clarion PS-2808K-A Service Manual

SPECIFICATIONS

Radio section
Tuning system: PLL Frequeency synthesizer sys-
tem
Receive range: AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity: AM
FM
Auto tuning stop sensitivity:
AM
FM
FM Separation: More than 20dB
CD section
Disc: 12cm Disc
Separation: More than 55dB
S/N ratio: More than 70dB(JIS-A)
Distortion: Less than 0.3%(20kHz-LPF)
MP3/WMA section
MP3 sampling rate: 11.025kHz to 48kHz
MP3 bit rate: 8kbps to 320kbps/VBR
WMA bit rate: 48kbps to 192kbps
Logical format: ISO9660 level 1,2
JOLIET or Romeo
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Service Manual
530kHz to 1710kHz
87.75MHz to 107.9MHz
1st 10.71 +0.2/-0.2MHz
2nd 450 +3/-3kHz
10.7 +0.2/-0.2MHz
Less than 39dBu
(at 20dB S/N)
Less than 15dBu
(at 30dB S/N)
42 +6/-6dBu
24 +6/-6dBu
- 1 -
SUZUKI Automobile Genuine
AM/FM TUNER CD COMBI
PS-2808K-A
Model
(Genuine No.39101-80J40-CZT)
ID No.CLCC04
General
Rated Voltage : DC 13.2V
Quiting Output: More Than 12Wx4 (10% Dist.)
Output)
Back-up consumption: Less than 5mA
Dimensions(mm): 248.4(W)x141.5(H)x176.9(D)
Weight: approx.1.8kg
NOTE
* We cannot supply PWB with component parts in
principle. When a circuit on PWB has failure , please
repair it by component parts base.
Parts which are not mentioned in service manual are
not supplied.
* Specifications and design are subject to change without
notice for further improvement.
* WMA is the abbreviation of Windows Media Audio, an
audio file format developed by Microsoft Corporation.
* This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
license from MSLGP.
COMPONENTS
PS-2808K-A
1. Main unit
Published by Service Dept.
298-XXXX-00 Dec.2006
Printed in Japan
More Than 16Wx4 (Max
--------------- 1
PS-2808K-A
