SPECIFICATIONS

Radio section
Tuning system:
PLL frequency synthesizer system
Receive range:
AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity:
AM
FM
Auto tuning stop sensitivity:
AM
FM
CD section
Disc:
12cm Disc
Separation:
More than 55dB
S.N ratio:
More than 70dB (JIS-A)
MP3 / WMA mode
MP3 Sampling rate:
11.025kHz to 48kHz
MP3 bit rate:
8kbps to 320kbps/VBR
WMA bit rate:
48kbps to 192kbps
Logical format:
ISO9660 level 1,2
JOLIET or Romeo
530kHz to 1710kHz
87.75MHz to 107.9MHz
10.71 +0.2 / -0.2 MHz (1st)
450 +3 / -3 MHz (2nd)
10.7 +0.2 / -0.2 MHz
Less than 34dBu
(at 20dB S/N)
Less than 15dBu
(at 30dB S/N)
32 +6/-6 dBu (DX)
24 +6/-6 dBu (DX)

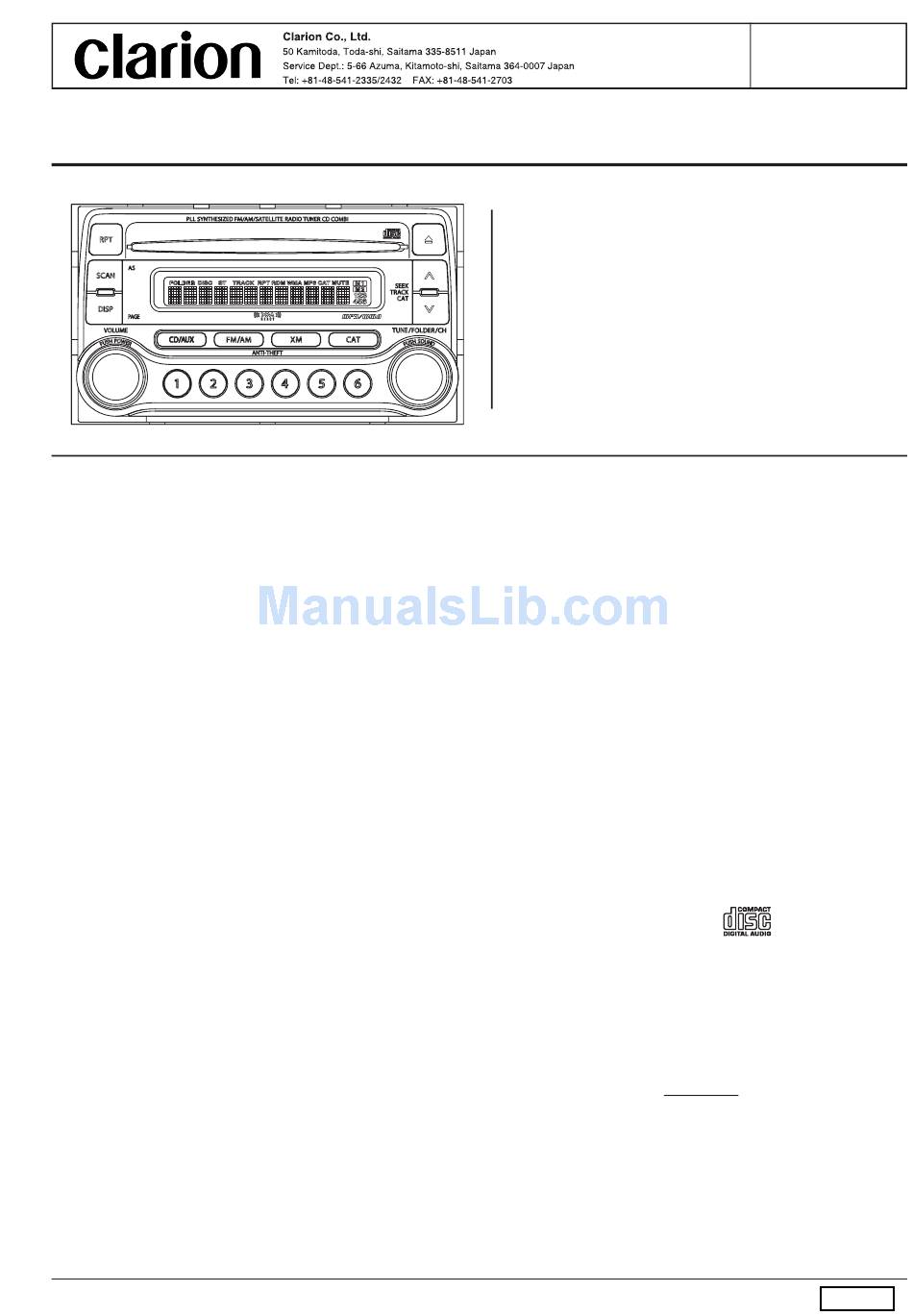

Service Manual
SUZUKI Automobile Genuine
AM/FM TUNER CD COMBI
PS-2760D
Model
(Genuine No. 39101-54J00-000)
General
Rated Voltage:
Tone control:
Output:
Back up consumption:
Dimensions(mm):
Weight:
NOTE
* We cannot supply PWB with component parts in principle. When
a circuit on PWB has failure, please repair it by component parts
base. Parts which are not mentioned in service manual are not
supplied.
* Specifications and design are subject to change without notice for
further improvement.
* Use only compact discs bearing the
heart-shaped, octagonal, or other specially shaped compact discs.
some CDs recorded in CD-R/CD-RW mode may not be usable.
* This product includes technology owned by Microsoft Corporation
and cannot be used or distributed without a license from MSLGP.
COMPONENTS
PS-2760D-A
Main unit
-1-
Published by Service Dept.
298-6266-00 JUL.2005X
Printed in P.R.C.
DC 13.2V
BASS 7 +12 / -12 dB (100Hz)
TREBLE 0 +12 / -12 dB (10Hz)
More Than 16Wx4 (Max Practical)
25Wx4 (Max Output)
Less than 12mA
178(W)x100(H)x155.3(D)
1.8kg
mark. Do not play
1
PS-2760D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-2760D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarion PS-2760D

  • Page 1: Specifications

    Published by Service Dept. 298-6266-00 JUL.2005X Printed in P.R.C. Service Manual SUZUKI Automobile Genuine AM/FM TUNER CD COMBI PS-2760D Model (Genuine No. 39101-54J00-000) SPECIFICATIONS Radio section Tuning system: PLL frequency synthesizer system General Receive range: 530kHz to 1710kHz Rated Voltage: DC 13.2V...
  • Page 2: To Engineers In Charge Of Repair Or Inspecti- On Of Our Products

    Ensure for safety reasons there is no possibility of secondary ploblems around the repaired spots. If extended damage is caused due to negligence of repair, the legal responsibility shall be with the repairing company. PS-2760D...
  • Page 3 : O : The segment signal output. pin 99: KS IN 2 : IN : Key scan input. pin 31: SEG 45 : O : The segment signal output. pin100: KS IN 1 : IN : Key scan input. PS-2760D...
  • Page 4 29: GS1-SO/IX6-TX : O : 1-CD Serial data output. 6-CD Serial data output. pin 86: E VOL 2L : IN : Pulse signal input from the rotary encod- pin 30: GS1-CK/IX6-RX :I/O: 1-CD clock output. 6-CD Serial data input. PS-2760D...
  • Page 5: Block Diagram

    DRIVER (ECC) FAN8047G3 (MPEG audio decode) (WMA decode) 3.3V (CD-DA ESP) 3.3V IC102 Transistor CD DSP IC10 5V 3.3V LOGIC TC94A15F FLASH ROM SN74 C139 MBM29DL800BA (Digital servo) (8Mbit) (DF/DAC) Regulator 3.3V 1.6V LOGIC SN74HCT08 ACC8V J3 20pin ACC5V PS-2760D...
  • Page 6: Main Section

    Main section PS-2760D...
  • Page 7: Exploded View Parts List

    716-0878-00 IT SCREW(M2.6X5) 373-1072-01 DIAL CVR 714-2603-81 MACHINE SCREW(M2.6X6) 716-0778-00 WAVE SCREW(2X6) 286-6224-15 SETPLATE 929-0301-84 CD MECH MODULE 345-5579-00 CUSHION RUBBER 331-3463-01 MECH BRKT 345-5384-00 CUSHION 816-2651-50 FLAT WIRE 285-1960-00 GUIDE LABEL 335-7621-00 WIRE SUPPORT 800-0207-60 VINYL-COAT-WIRE 309-0795-02 ESCUTCHEON PLATE PS-2760D...
  • Page 8 CD mechanism section: 929-0301-84 PS-2760D...
  • Page 9 621-0619-20 POWER GEAR D 816-2591-00 EXTENSION LEAD (Yellow) 621-0620-20 THREAD GEAR A 816-2592-00 EXTENSION LEAD (Blue) 621-0621-20 THREAD GEAR B 816-2593-00 EXTENSION LEAD (Purple) 621-1726-20 ROLLER SLEEVE 816-2624-50 FLAT WIRE 621-0623-23 LS-HOLDER --------------- LED PWB 621-0624-22 GUIDE RAIL --------------- CD PWB PS-2760D...
  • Page 10: Electrical Parts List

    C641 168-1022-55 1000pF K J202 074-1192-20 SOCKET(20P) R206 116-2291-15 1/4W 2.2 ohm 168-1022-55 1000pF K 074-1194-00 SOCKET(Ce NET) 116-2291-15 1/4W 2.2 ohm C642 J301 R207 C643 168-1022-55 1000pF K J801 074-4007-20 SOCKET(20P) R209 119-0000-05 1/10W 0 ohm JW PS-2760D -10-...
  • Page 11 R904 119-0000-05 1/10W 0 ohm JW 039-2697-00 PWB(WITHOUT LCD901 379-1335-52 INDICATOR(LCD) 119-0000-05 1/10W 0 ohm JW COMPONENT) R905 PL901 017-0429-20 8V 105mA R906 119-0000-05 1/10W 0 ohm JW PL902 017-0420-38 14V 40mA R907 119-0000-05 1/10W 0 ohm JW PS-2760D -11-...
  • Page 12 LED PWB (B4) section: CD mechanism REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION 001-7058-90 AN1105W-RR 060-4015-90 PS1192H 013-7413-50 LIMIT 001-7058-90 AN1105W-RR 060-4015-90 PS1192H 039-1944-21 PWB(WITHOUT 074-1138-60 10P 013-7414-50 CHUCKING COMPONENT) PS-2760D -12-...
  • Page 13 N.C. BUS (+) ILL+ N.C. R-ch (+) R-ch (-) SYS-ACC BUS (-) L-ch (-) ILL + 14 V 9 10 To J902 of Switch PWB(B2) To J901 of Switch PWB(B2) (page 15) (page 15) PS-2760D -13-...
  • Page 14 PRINTED WIRING BOARD 2/3 Main PWB (B1) section 2/2 Switch PWB (B2) section Switch PWB (B2) COMPONENT SIDE SOLDER SIDE Main PWB (B1) Caution: SOLDER SIDE: Parts on the solder side seen from the solder side are indicated. PS-2760D -14-...
  • Page 15 SOLDER SIDE : Parts on the soider side seen from the solder side are indicated. COMPONENT SIDE : Part on the component side seen from the component side are indicated. SOLDER SIDE LED PWB-B(B4) SOLDER SIDE Blue LED PWB-A(B4) Yello Purol PS-2760D -15-...
  • Page 16 CIRCUIT DIAGRAM 1/5 MAIN PWB(B1) section To 2/2 page 17 To 2/2 page 17 PS-2760D -16-...
  • Page 17 CIRCUIT DIAGRAM 2/5 Main PWB(B1) section 2/2 PS-2760D -17-...
  • Page 18 CIRCUIT DIAGRAM 3/5 Switch PWB(B2) section PS-2760D -18-...
  • Page 19 CIRCUIT DIAGRAM 4/5 CD PWB(B3) section 1/2 CD MECHANISM PS-2760D -19-...
  • Page 20 CIRCUIT DIAGRAM 5/5 CD PWB (B3) section 2/2 LED PWB(B4) section CD MECHANISM CD PWB (B3) LED PWB-B(B4) LED PWB-A(B4) SPD-MOTOR-ASSY SMA-182-100 POW-MOTOR-ASSY SMA-183-100 To PICK UP ASSY PS-2760D -20-...
