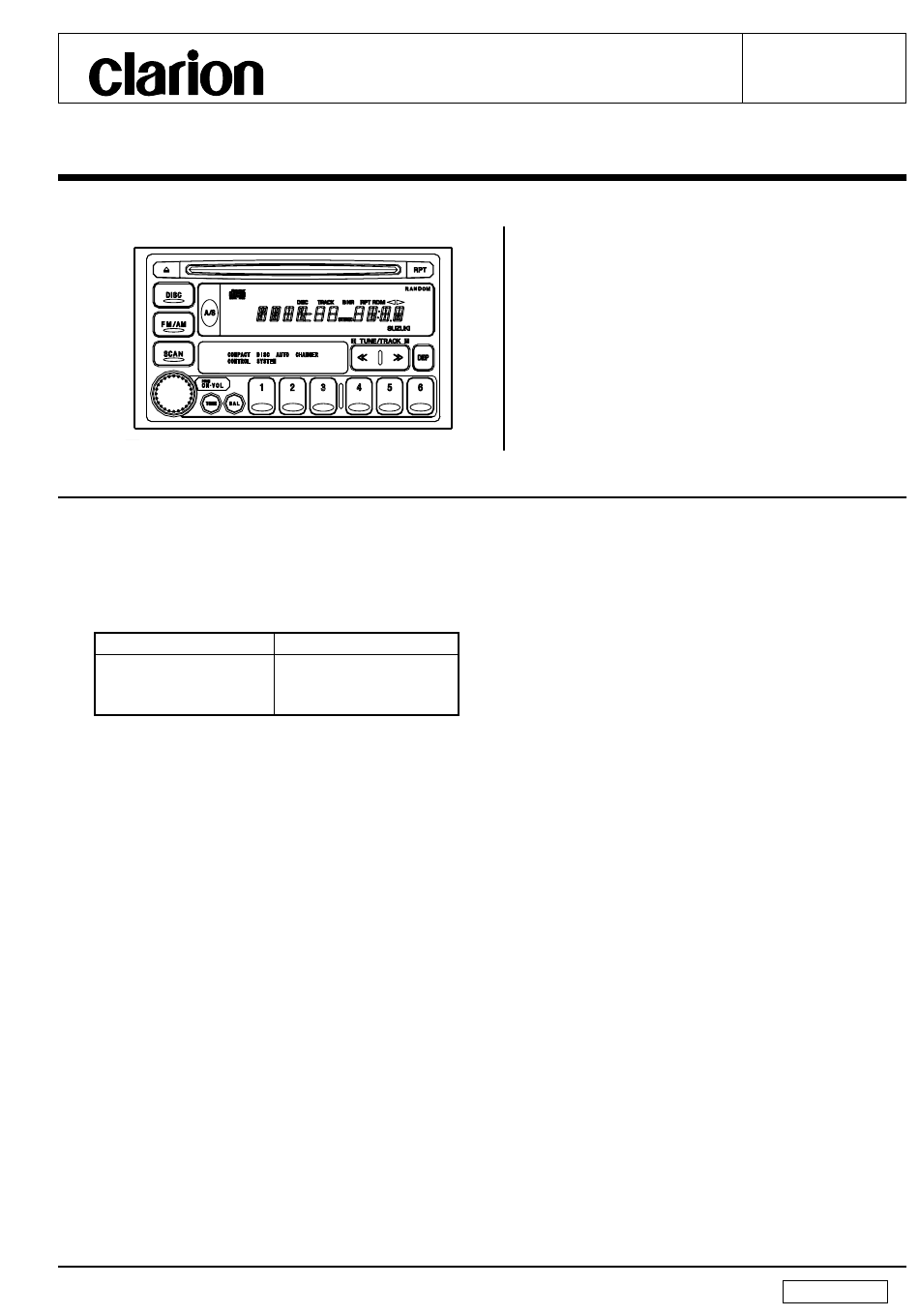

Clarion PS-2429D Service Manual

■ ORIGINAL SERVICE MANUAL
This additional service manual is designed to be used to-
gether with service manual of PS-2375D,I/PS-2376D,I/PS-
2377D,I.
Original model
PS-2375D,I
PS-2376D,I
PS-2377D,I
SPECIFICATIONS
■
Radio section
Tuning system: PLL Frequency synthesizer system
Receive range: AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity: AM
FM
Separation: FM
Auto tuning stop sensitivity:
AM
FM
CD section
Disc: Compact disc(8cm/12cm)
Separation: More than 50dB
S/N ratio: More than 60dB
Distortion: Less than 1.0%(at 20kHz LPF)
General
Load impedance: 4
Power output: 16W
Clarion Co., Ltd.
22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
Manual No.
298-5854-00
530kHz to 1,710kHz
87.75MHz to 107.9MHz
450 ± 3kHz
10.7 ± 0.2MHz
Less than 34dB μ
(at 20dB S/N)
Less than 15dB μ
(at 30dB S/N)
More than 20dB(at 1kHz)
32 6dB
± μ
26 6dB
± μ
Ω
× 4(MAX)
Service Manual
SUZUKI Automobile Genuine
AM/FM Stereo CD Deck
PS-2429D
Model
(Genuine No.39101-65DE0-000)
Power supply voltage: DC13.2V(10.8V to 15.6V)
Back-up consumption: Less than 4mA
Dimensions(mm):
Weight:
Specifications and design are subject to change without
※
notice for further improvement.
NOTE
■
We cannot supply PWB with component parts in principle.
When a circuit on PWB has failure , please repair it by com-
ponent parts base. Parts which are not mentioned in ser-
vice manual are not supplied.
COMPONENTS
■
PS-2429D-A/PS-2429D-B
Main unit
To engineers in charge of repair or
■
inspection of our products.
Before repair or inspection, make sure to follow
the instructions so that customers and Engineers
in charge of repair or inspection can avoid suf-
fering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent charac-
teristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
product liability (PL) shall not be our responsibility in cases
where an accident or failure is as a result of unspecified
parts being used.
- 1 -
Published by Service Dept.
298-5908-00 Apr.2001 P
Printed in Japan
Negative ground
186(W) 106(H) 156.5(D)
× ×
2.13kg
−−−−−
PS-2429D
1
