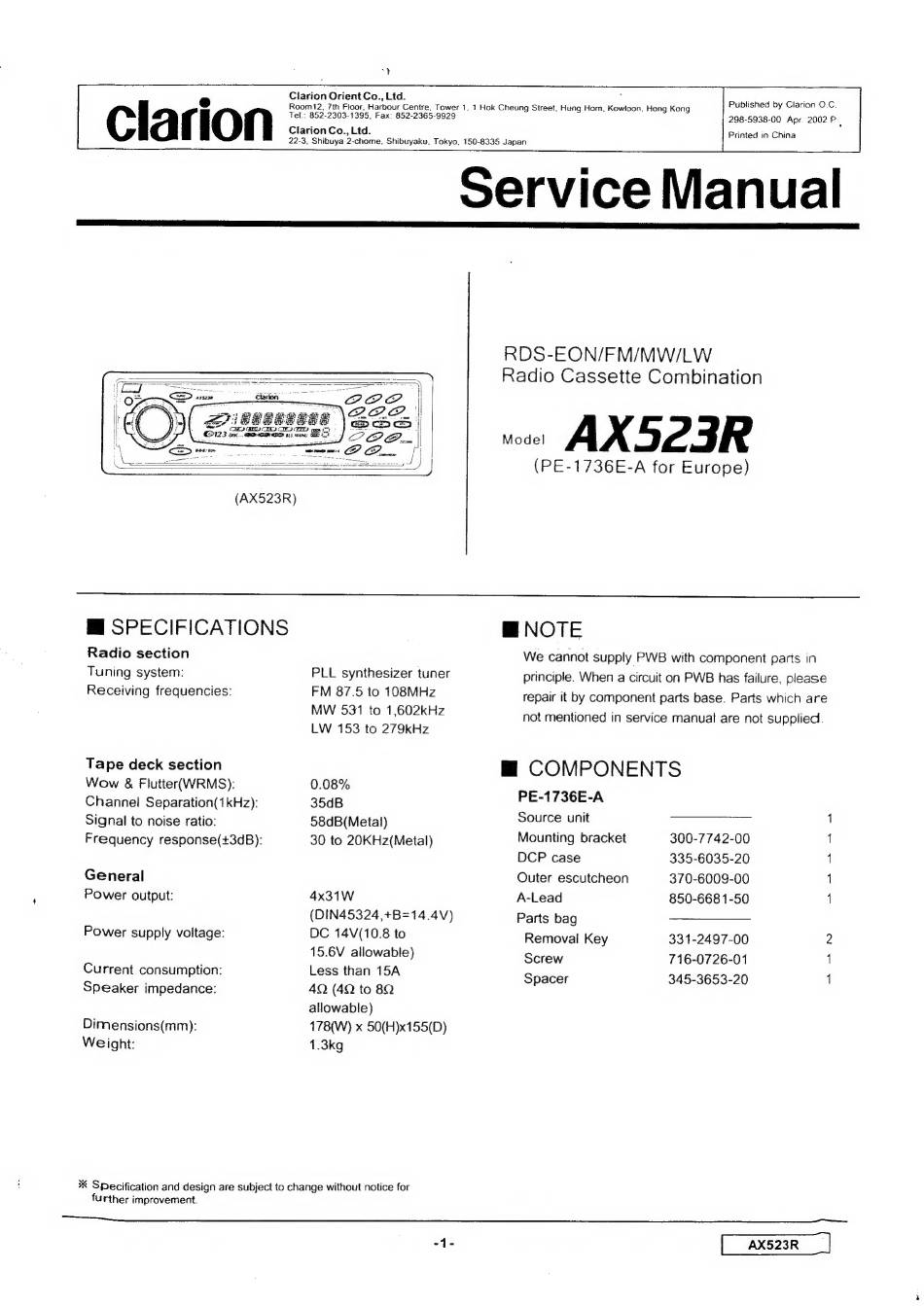

Clarion AX523R Service Manual

Clarion
"4
Clarion Orient Co., Ltd.
Room12, 7th Floor, Harbour Centre, Tower 1, 1 Hok Cheung Street, Hung Hom, Kowloon, Hong Kong
Tel.: 852-2303-1395, Fax: 852-2365-9929
Clarion Co., Ltd.
22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Published by Clarion O.C.
298-5938-00 Apr. 2002 P .
Printed in China
Service Manual
(AX523R)
M@ SPECIFICATIONS
Radio section
Tuning system:
Receiving frequencies:
Tape deck section
Wow & Flutter(WRMS):
Channel Separation(1kHz):
Signal to noise ratio:
Frequency response(+3dB):
General
Power output:
Power supply voitage:
Current consumption:
Speaker impedance:
Dimensions(mm):
Weight:
PLL synthesizer tuner
FM 87.5 to 108MHz
MW 531 to 1,602kHz
LW 153 to 279kHz
0.08%
35dB
58dB(Metal)
30 to 20KHz(Metal)
4x31W
(DIN45324,+B=14.4V)
DC 14V(10.8 to
15.6V allowable)
Less than 15A
4Q (4Q to 8Q
allowable)
178(W) x 50(H)x155(D)
1.3kg
*€ Specification and design are subject to change without notice for
further improvement.
RDS-EON/FM/MW/LW
Radio Cassette Combination
we AX523R
(PE-1736E-A for Europe)
MNOTE
We cannot supply PWB with component parts in
principle. When a circuit on PWB has failure, please
repair it by component parts base. Parts which are
not mentioned in service manual are not supplied.
@ COMPONENTS
PE-1736E-A
Source unit 1
Mounting bracket 300-7742-00 1
DCP case 335-6035-20 1
Outer escutcheon 370-6009-00 1
A-Lead 850-668 1-50 {
Parts bag —————
Removal Key 331-2497-00 2
Screw 716-0726-01 {
Spacer 345-3653-20 1
