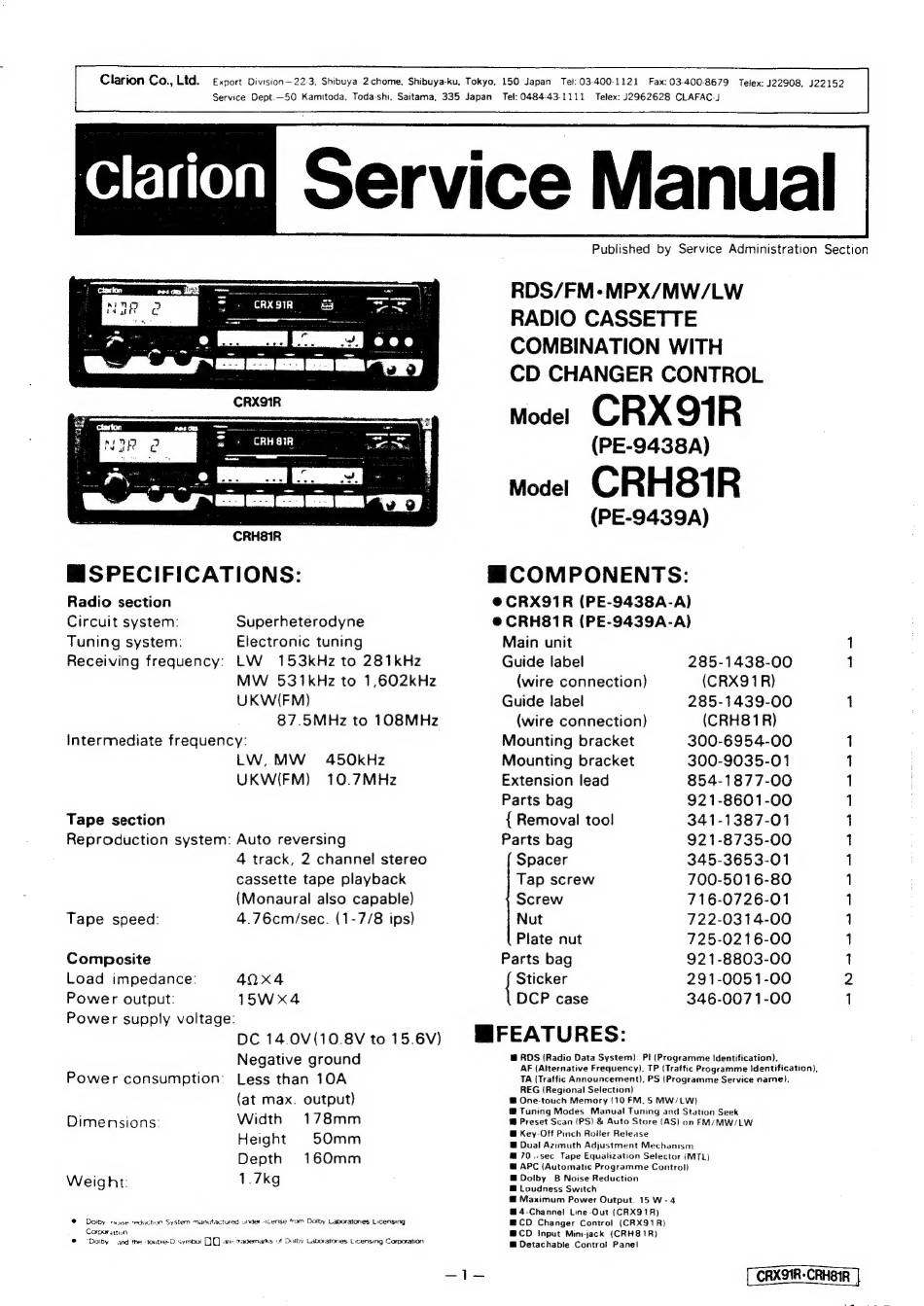

Clarion CRX91R Service Manual

Clarion Co., Ltd.
Export Division—22.3, Shibuya 2-chome, Shibuya-ku, Tokyo, 150 Japan Tei: 03-400-1121 Fax: 03-400-8679 Telex: J22908, J22152
Service Dept.—50 Kamitoda, Toda-shi, Saitama, 335 Japan Tel: 0484-43-1111 Telex: J2962628 CLAFAC.J
MSPECIFICATIONS:
Radio section
Circuit system:
Tuning system:
Receiving frequency:
Superheterodyne
Electronic tuning
LW 153kHz to 281kHz
MW 531kHz to 1,602kHz
UKW(FM)
87.5MHz to 108MHz
Intermediate frequency:
LW,MW_ 450kHz
UKW(FM) 10.7MHz
Tape section
Reproduction system: Auto reversing
4 track, 2 channel stereo
cassette tape playback
(Monaural also capable)
Tape speed: 4.76cm/sec. (1-7/8 ips)
Composite
Load impedance: 40x4
Power output: 15Wx4
Power supply voltage:
DC 14.0V(10.8V to 15.6V)
Negative ground
Power consumption: Less than 10A
(at max. output)
Dimensions: Width 178mm
Height 50mm
Depth 160mm
Weight: 1.7kg
© Dolby nese duction System nanutactured under ivense from Dolby Laboratones Licensing
Corpor ation
© "Dolby and the Joubie-D symbo! J) we trademarks of Doiby Laboratories Licensing Corporation
Published by Service Administration Section
RDS/FM-MPX/MW/LW
RADIO CASSETTE
COMBINATION WITH
CD CHANGER CONTROL
Model CRX91R
(PE-9438A)
Model CRH81R
(PE-9439A)
MCOMPONENTS:
@ CRX91R (PE-9438A-A)
@ CRH81R (PE-9439A-A)
Main unit 1
Guide label 285-1438-00 1
(wire connection) (CRX91R)
Guide !abel 285-1439-00 1
(wire connection) (CRH81R)
Mounting bracket 300-6954-00 1
Mounting bracket 300-9035-01 1
Extension lead 854-1877-00 1
Parts bag 921-8601-00 1
{ Removal too! 341-1387-01 1
Parts bag 921-8735-00 1
Spacer 345-3653-01 1
Tap screw 700-5016-80 1
Screw 716-0726-01 1
Nut 722-0314-00 1
Plate nut 725-0216-00 1
Parts bag 921-8803-00 1
{ Sticker 291-0051-00 2
DCP case 346-007 1-00 1
MFEATURES:
@ RDS (Radio Data System): Pl (Programme Identification),
AF (Alternative Frequency), TP (Traffic Programme Identification},
TA (Traffic Announcement), PS (Programme Service name),
REG (Regional Selection)
® One-touch Memory (10 FM, 5 MW/LW)
@ Tuning Modes Manual Tuning and Station Seek
® Preset Scan (PS) & Auto Store {AS} on FM/MW/LW
@ Key-Off Pinch Roller Release
B@ Dual Azimuth Adjustment Mechanism
@70..sec Tape Equalization Selector (MTL)
@ APC (Automatic Programme Control)
@ Dolby B Noise Reduction
B Loudness Switch
@ Maximum Power Output. 15 W-4
#8 4-Channel Line -Out (CRX91R}
@CD Changer Control (CRX91R}
BCD Input Mins-jack (CRH81R)
@ Detachable Control Panel
CRXGIR-CRHBIA |
