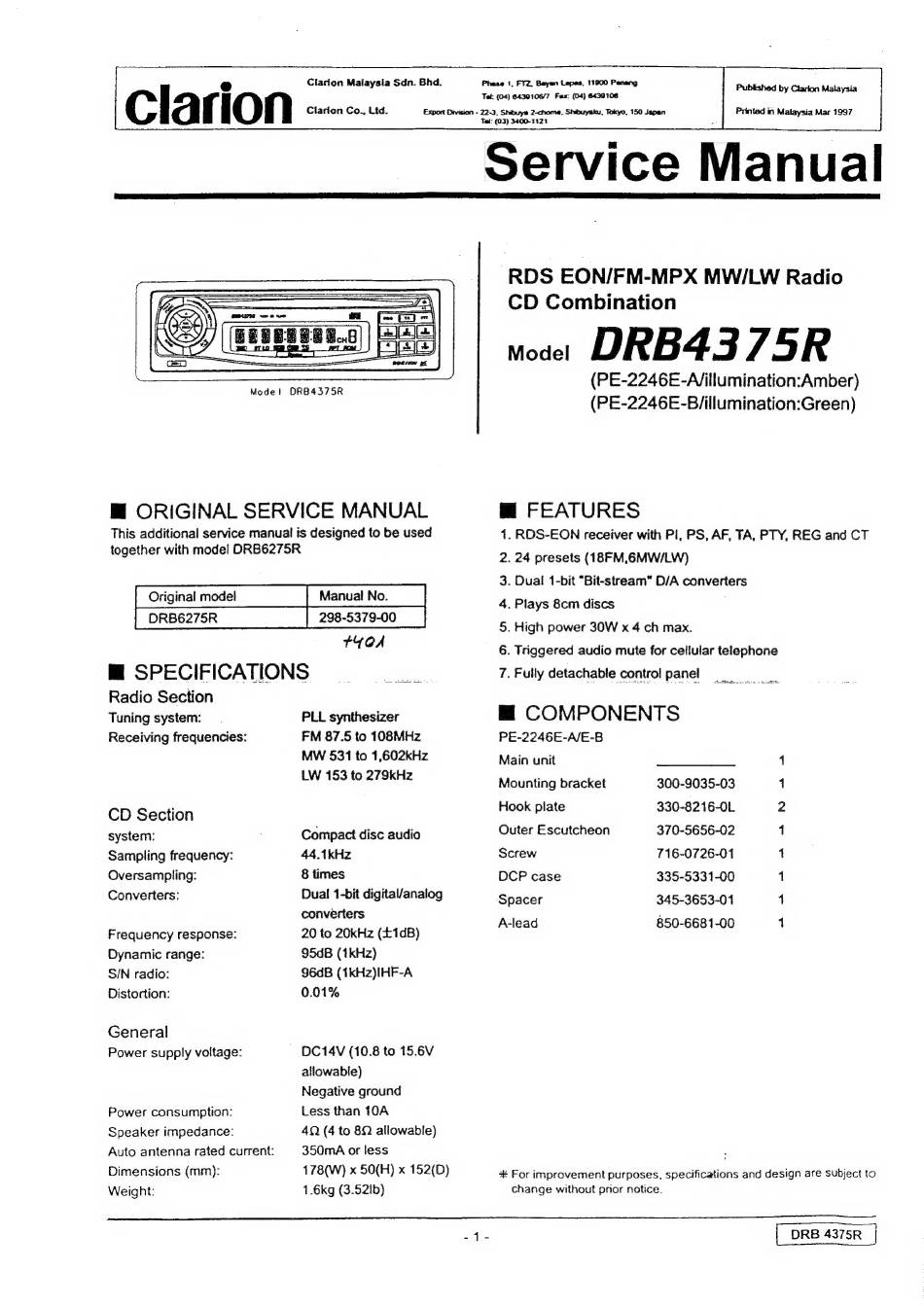

Clarion DRB4375R Service Manual

Clarion Malaysia Sdn. Bhd. Phase 1, FTZ, Bayan Lepas, 11900 Penang Published by Malaysia
e
Tet: (04) 6430106/7 Fax: (04) 6430108
i Clarion Co., Ltd. Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Printed in Malaysia Mar 1997
Tel: (03) 3400-3121 a
S M |
RDS EON/FM-MPX MW/LW Radio
CD Combination
Model DRB43 75R
(PE-2246E-A/illumination:Amber)
(PE-2246E-B/illumination:Green)

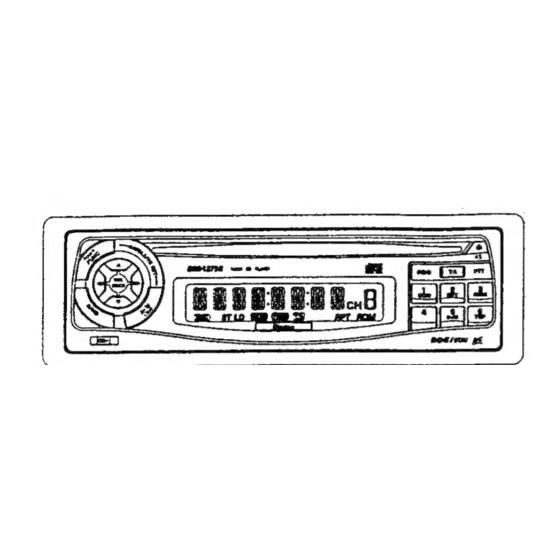

Model DRB4375R
HM ORIGINAL SERVICE MANUAL mM FEATURES
This additional service manual is designed to be used 1. RDS-EON receiver with PI, PS, AF, TA, PTY, REG and CT
together with model ORB6275R 2. 24 presets (18FM,6MW/LW)
3. Dual 1-bit "Bit-stream" D/A converters
t4OA 6. Triggered audio mute for cellular telephone
M SPECIFICATIONS =. 7. Fully detachable control panel es
Radio Section
Tuning system: PLL synthesizer @ COMPONENTS
Receiving frequencies: FM 87.5 to 108MHz PE-2246E-A/E-B
MW 531 to 1,602kHz Main unit 1
DS atone Mounting bracket 300-9035-03 1
CD Section Hook plate 330-8216-0L 2
system: Compact disc audio Outer Escutcheon 370-5656-02 1
Sampling frequency: 44.1kHz Screw 716-0726-01 1
Oversampling:
8 times
DCP case
335-5331-00
1
Converters:
Dual 1-bit digital/analog
Spacer
345-3653-04
4
reall A-lead 850-6681-00 1
Frequency response: 20 to 20kHz (£1dB)
Dynamic range: 95dB (1kHz)
SIN radio: 96dB (1kHz)IHF-A
Distortion: 0.01%
General
Power supply voltage: DC14V (10.8 to 15.6V
allowable)
Negative ground
Power consumption: Less than 10A
Speaker impedance: 4Q (4 to 89 allowable)
Auto antenna rated current:
350mA or less
Dimensions (mm): 178(W) x 50(H) x 152(D) + For improvement purposes, specifications and design are subject to
Weight: 1.6kg (3.52Ib) change without prior notice.
=i [ DRB 4375R |
