Connecting Peripheral Equipment

Equipment
Video equipment
Note
• Depending on specifications of video equipment or HDMI to DVI digital cable, the signal transmission may not work properly.
(The HDMI specification does not support all connections to video equipment that has HDMI digital output terminal using
HDMI to DVI digital cable.)
• For details on compatibility for connection, see support information on DVI connection provided by the video equipment
manufacturer.
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the monitor, use a commercially available cable
that fits in the monitor terminal you want to connect.
• The monitor does not support RGBC signals via the Euro-scart.
16

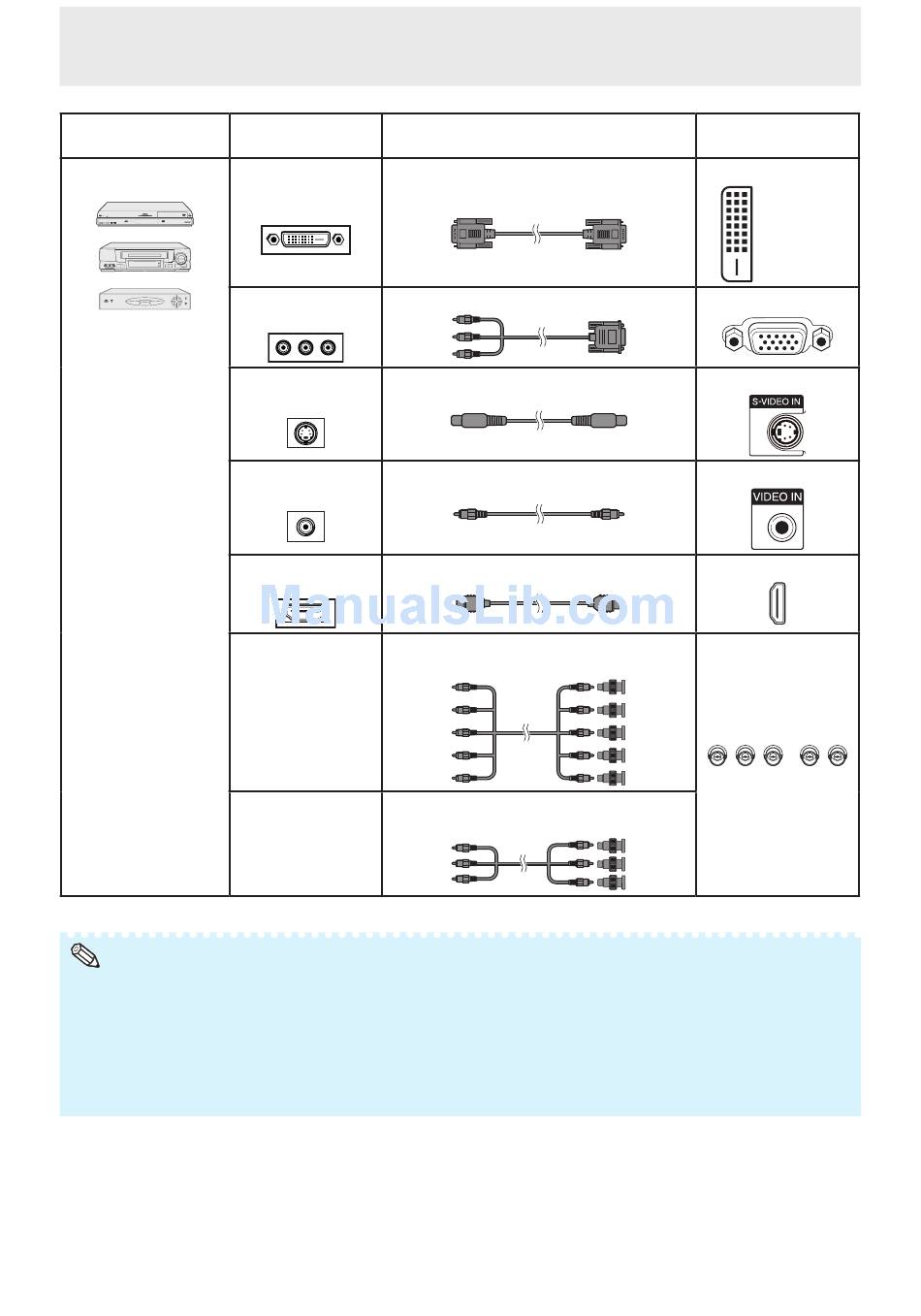

Terminal on connected
equipment
DVI digital output DVI Digital cable
terminal
Component video 3 RCA to mini D-sub 15 pin cable
output terminal
S-video output S-video cable
terminal
Video output Video cable
terminal
HDMI output HDMI cable
terminal
RGB output 5 RCA RGB cable
terminal BNC to RCA adaptors
Component BNC to RCA adaptors
video output Component video cable
terminal
Cable (commercially available)
Terminal on the
monitor
DVI IN
DVI-D
(HDCP)
COMPUTER IN 1
S-VIDEO IN
VIDEO IN
HDMI
COMPUTER IN 2
