Specifications

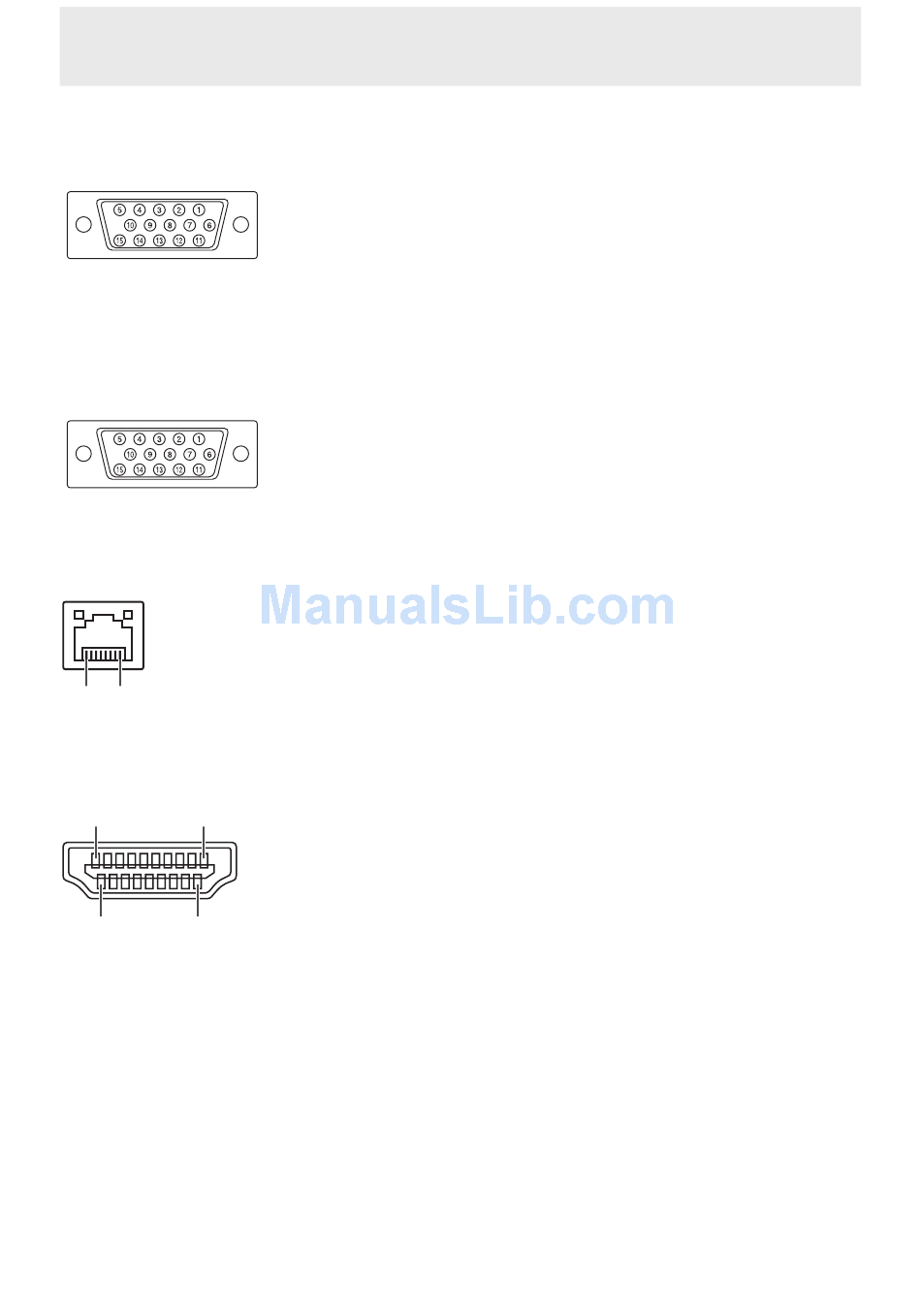

RGB/COMPONENT input terminal: mini D-sub 15 pin
RGB/COMPONENT output terminal: mini D-sub 15 pin
LAN terminal: LAN (RJ-45)
8 ... 1
HDMI terminal
1
19
2
18
50
Pin No.
Signal
1
Video input (red)
2
Video input (green/sync on green)
3
Video input (blue)
4
Not connected
5
Not connected
6
Earth (red)
7
Earth (green/sync on green)
8
Earth (blue)
Pin No.
Signal
1
Video input (red)
2
Video input (green/sync on green)
3
Video input (blue)
4
Not connected
5
Not connected
6
Earth (red)
7
Earth (green/sync on green)
8
Earth (blue)
Pin No.
Signal
1
TX+
2
TX-
3
RX+
4
Pin No.
Signal
1
T.M.D.S data 2+
2
T.M.D.S data 2 shield
3
T.M.D.S data 2-
4
T.M.D.S data 1+
5
T.M.D.S data 1 shield
6
T.M.D.S data 1-
7
T.M.D.S data 0+
8
T.M.D.S data 0 shield
9
T.M.D.S data 0-
10
T.M.D.S clock+
Pin No.
9
+5 V power
10
GND
11
Not connected
12
DDC data
13
Horizontal sync signal: TTL level
14
Vertical sync signal: TTL level
15
DDC clock
Pin No.
9
Not connected
10
GND
11
Not connected
12
Not connected
13
Horizontal sync signal: TTL level
14
Vertical sync signal: TTL level
15
DDC clock
Pin No.
Signal
5
6
RX-
7
8
Pin No.
11
T.M.D.S clock shield
12
T.M.D.S clock-
13
CEC
14
Reserved
15
SCL
16
SDA
17
DDC/CEC ground
18
+5V power
19
Hot plug detection
Signal
Signal
Signal
