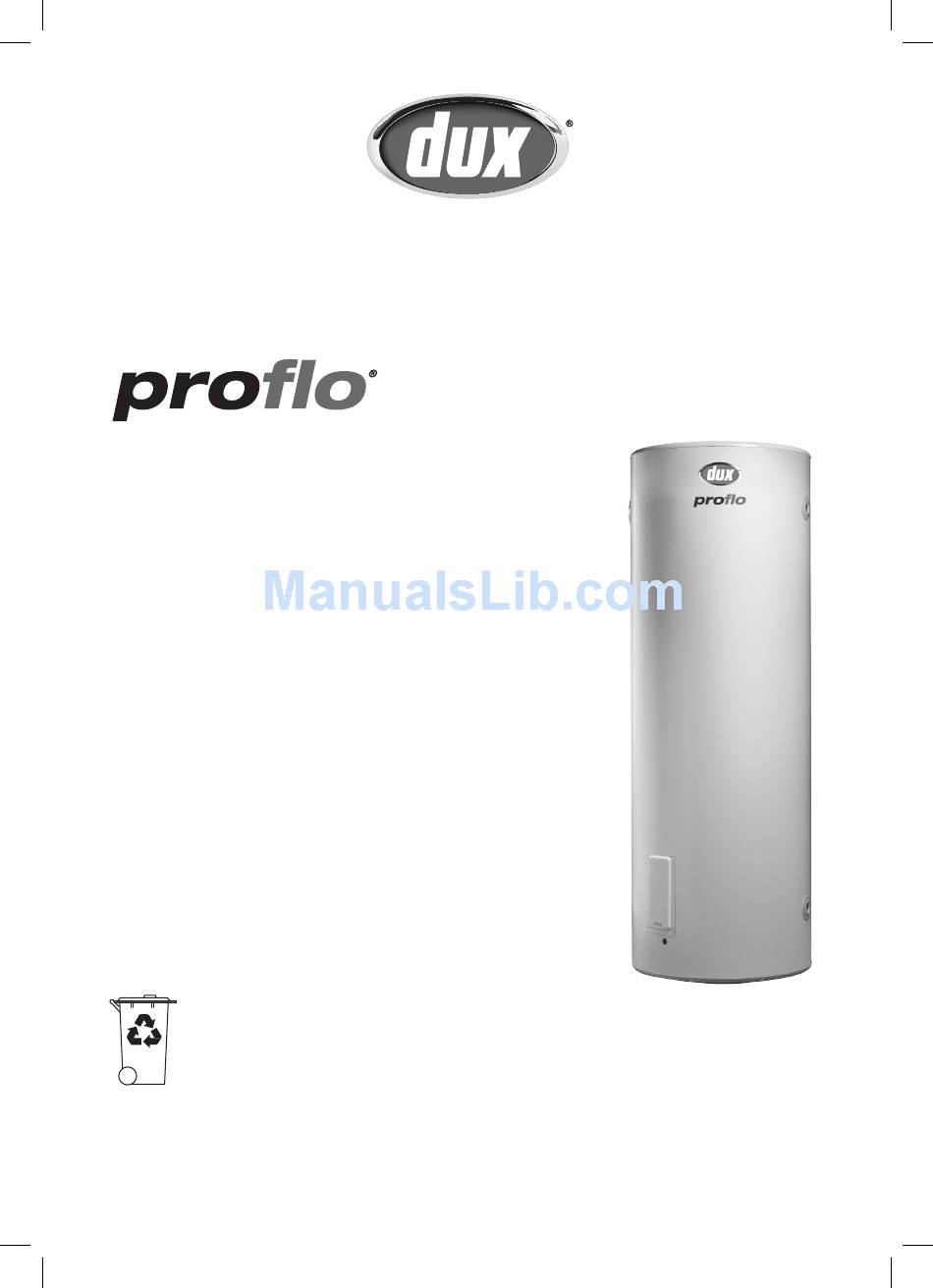

Owner's Manual

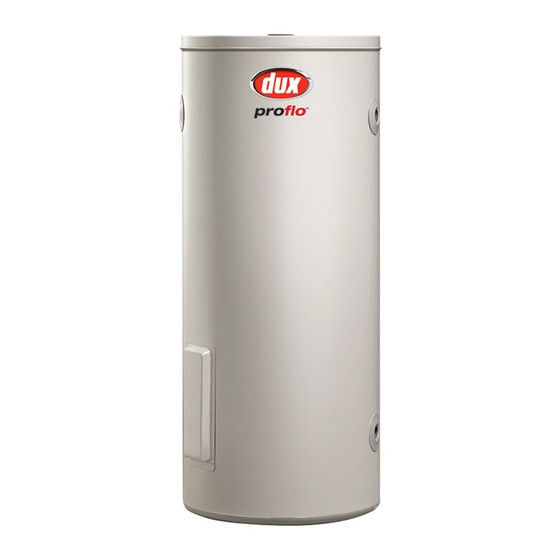

Electric Storage Water Heaters
Standard Models:
80F118G, 80F124G, 80F136G
125S118, 125S136, 160S124, 160S136
250S136, 315S136, 315S236, 315S248
400S136, 400S236
An 'H' at the end of the model number indicates that the
water heater is fitted with a hard-water anode.
Installation Details
Owner's Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.
Specifications and materials may change without notice.
Effective for all Proflo electric storage water heaters manufactured and sold after 1st January 2012.
H0421
0421
Rev. K
Advertisement
Table of Contents
Related Manuals for Dux ProFlo series
Summary of Contents for Dux ProFlo series
-
Page 1: Installation Details
Owner’s Manual Electric Storage Water Heaters Standard Models: 80F118G, 80F124G, 80F136G 125S118, 125S136, 160S124, 160S136 250S136, 315S136, 315S236, 315S248 400S136, 400S236 An ‘H’ at the end of the model number indicates that the water heater is fitted with a hard-water anode. Installation Details Owner’s Information Warranty... -
Page 2: Table Of Contents
Owner’s Manual – Proflo Electric Storage Water Heaters Contents Installation Details Plumbing Connections Electrical Connection Specifications Operating Instructions Safety Information Service Information Troubleshooting Warranty © Dux Manufacturing Limited 2012. All rights reserved. H0421 0421 Rev. K... -
Page 3: Installation Details
Owner’s Manual – Proflo Electric Storage Water Heaters Installation Details Installation Requirements Water Supply Pressure This water heater must be installed This water heater is designed for direct by a licensed tradesperson, and in connection to water supply pressures of: accordance with: 80, 125 and 160 litre models: •... - Page 4 Owner’s Manual – Proflo Electric Storage Water Heaters Installation Details Location The product must be installed on a The water heater should be located as flat, solid supporting surface. close as possible to the most frequently A properly drained overflow tray must used hot water outlet.
-
Page 5: Plumbing Connections
Owner’s Manual – Proflo Electric Storage Water Heaters Plumbing Connections Pressure & Temperature Relief The PTR Valve should be checked for Valve adequate performance or replaced at The Pressure & Temperature Relief Valve intervals not exceeding 5 years, or less in is supplied loose with the water heater. - Page 6 Owner’s Manual – Proflo Electric Storage Water Heaters Plumbing Connections Hot Water Connection Temperature Protection The hot water pipe should be connected Water heaters can produce very hot to either of the RP¾/20 sockets marked water. To reduce the risk of scald injury, "OUTLET"...
-
Page 7: Electrical Connection
Owner’s Manual – Proflo Electric Storage Water Heaters Electrical Connection This water heater is designed for Danger: The operation of the thermal single phase 240V A.C. supply cut-out indicates a possibly dangerous only. The electrical connection must situation. Do NOT reset the thermal comply with Local Supply Authority cutout until the water heater has been Regulations and AS/NZS 3000. -
Page 8: Specifications
Owner’s Manual – Proflo Electric Storage Water Heaters Specifications Nominal Dimensions Tank Size 125L 160L 250L 315L 400L Total Height (A) 1090 1345 1445 1765 1705 Total Diameter (B) Outlet Height (C) 1120 1210 1530 1445 Inlet Height (D) Electrical Entry (E) Specifications 125L 160L... -
Page 9: Operating Instructions
Water Quality To dissipate this gas safely it is recom- Your Dux water heater has been mended that a hot tap be turned on for manufactured to suit water conditions of several minutes at a sink, basin or bath, most Australian metropolitan supplies. -
Page 10: Safety Information
Turn off the electricity supply and licensed tradesperson. contact Dux on 1300 365 115. The electrical power supply switch must be turned off and the fuse removed or the circuit breaker isolated at the main electrical supply switchboard before the water heater electrical cover is removed. -
Page 11: Service Information
It is attach a water supply hose to recommended that this service be the heater. Turn on the water carried out by your local Dux agent. supply. The service should include the following: vii. Flush the heater until clear water appears. -
Page 12: Troubleshooting
If after checking the following points etc. for leakage and replace if the problem has not been identified, necessary. please contact Dux on 1300 365 115. • Is there a leaking hot water pipe or dripping hot water tap? A small leak... - Page 13 20L per day This may be caused by excessive water supply pressure, a faulty PTR Valve or a faulty thermostat. Turn off the electricity supply and contact Dux on 1300 365 115. High Electricity Bills • Is the Pressure & Temperature...
-
Page 14: Warranty
Warranty: parts other than those manufactured • 7 Years tank warranty. or approved by Dux are not covered by • 1 year parts and labour. this Warranty. The benefits provided to you by the... - Page 15 If Dux fails to meet a guarantee under Contact Details: the ACL, your remedy for such failure Dux Manufacturing Limited may be limited to any one or more of the...
-
Page 16: Preventative Maintenance
Please take a moment to fill out your details for warranty Electric Storage Water Heaters registration at: www.dux.com.au/warranty For advice, repairs and service, call: or use your smartphone to scan this code: 1300 365 115 (Australia) 0800 729 389 (New Zealand)
