Owner's Manual

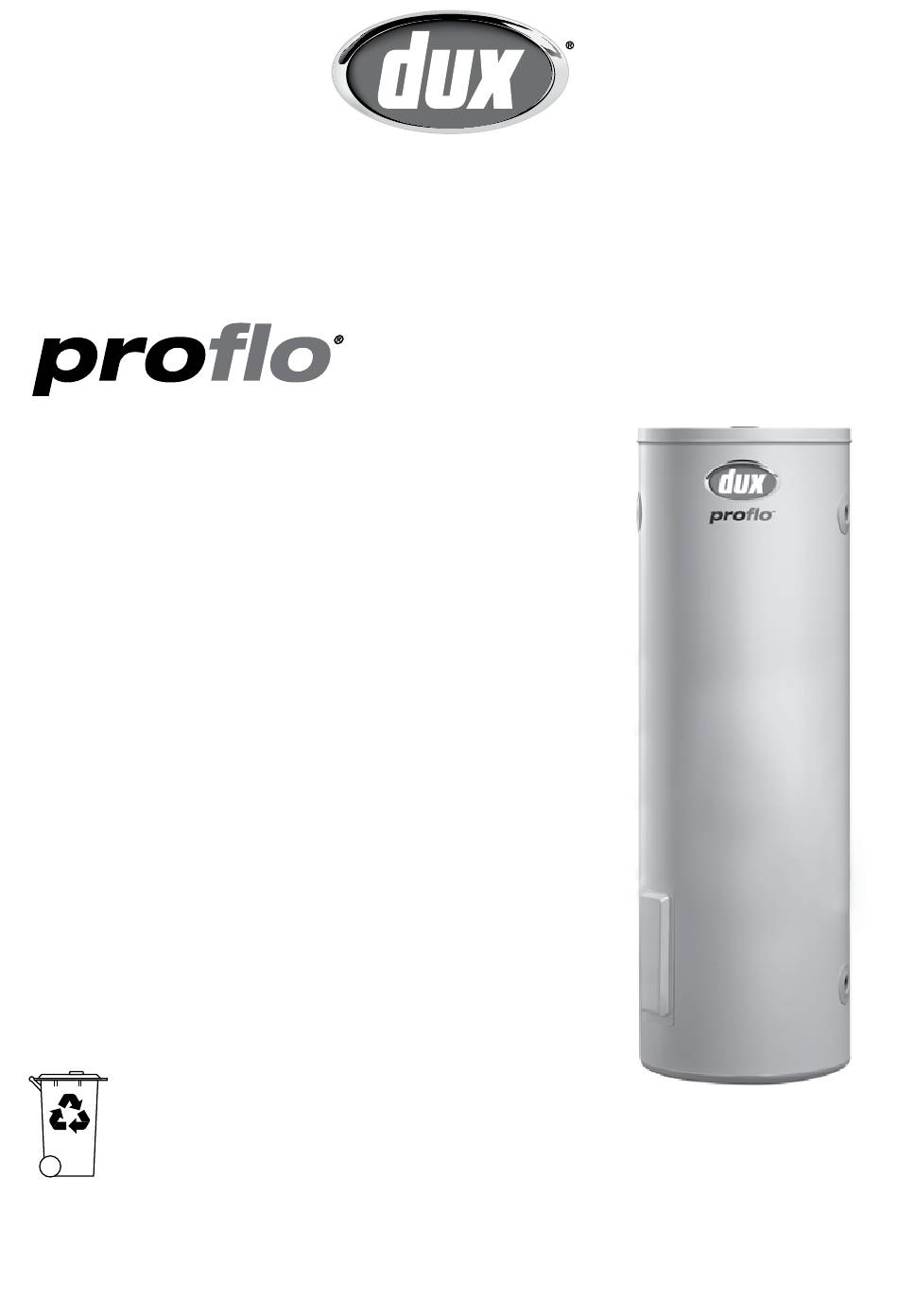

Electric Storage Water Heaters
Standard Models:
80T118, 80T124, 80T136, 125T118,
125T136, 125X118, 125X136 160T124,
160T136, 250T136, 315T136, 315T236,
315T248, 400T136, 400T236
An 'H' at the end of the model number indicates that the
water heater is fitted with a hard-water anode.
Installation Details
Owner's Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.
Specifications and materials may change without notice.
Effective for the above model numbers of Proflo electric storage water heaters manufactured and
sold after 1st October 2018.
H0421
0421
Rev. Q
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dux proflo 125X118
Summary of Contents for Dux proflo 125X118
- Page 1 Owner’s Manual Electric Storage Water Heaters Standard Models: 80T118, 80T124, 80T136, 125T118, 125T136, 125X118, 125X136 160T124, 160T136, 250T136, 315T136, 315T236, 315T248, 400T136, 400T236 An ‘H’ at the end of the model number indicates that the water heater is fitted with a hard-water anode. Installation Details Owner’s Information Warranty...
- Page 2 Owner’s Manual – Proflo Electric Storage Water Heaters Important Safety Information WARNING – THIS APPLIANCE To dissipate this gas safely it is MAY DELIVER WATER AT HIGH recommended that a hot tap be turned on TEMPERATURE. REFER TO THE for several minutes at a sink, basin or bath, PLUMBING CODE OF AUSTRALIA but not a dishwasher, clothes washer or (PCA), LOCAL REQUIREMENTS...
- Page 3 Turn off the water heater and contact Dux The water heater must not be operated After Sales and Service. unless this device is fitted and in working OVER-TEMPERATURE ENERGY order.
- Page 4 Satisfy Solution for the PCA and a Verification Refer to local regulations before installing the Method for Clause G12 of the NZBC. Other water heater in a roof space. methods of compliance are available. Dux recommends that installations conform with WATER HEATER SUPPORT: AS/NZS 3500.4.
-
Page 5: Table Of Contents
Owner’s Manual – Proflo Electric Storage Water Heaters Contents Important Safety Information Installation Requirements Plumbing Connections Specifications Filling and Draining Electrical Connection System Maintenance Considering a Service Call? Warranty © Dux Manufacturing Limited 2020. All rights reserved. H0421 0421 Rev. Q... -
Page 6: Plumbing Connections
Owner’s Manual – Proflo Electric Storage Water Heaters Plumbing Connections Relief Valve: Hot Water Connection: The Pressure & Temperature Relief (PTR) Valve The hot water pipe is to be connected to either is supplied either inside the electrical cover of of the RP¾”(DN20) sockets marked “OUTLET”... - Page 7 Incoloy heating element. Please water supply line between the non-return valve consult Dux After Sales and Service for advice and the water heater. if required. Cold Water Connection:...
-
Page 8: Specifications
Owner’s Manual – Proflo Electric Storage Water Heaters Specifications 80L - 400L 125L Narrow Diameter Nominal Dimensions Tank Size 125L 125L 160L 250L 315L 400L Narrow Diameter Total Height (A) 1090 1300 1315 1445 1765 1705 Total Diameter (B) Outlet Height (C) 1115 1095 1210... -
Page 9: Filling And Draining
Owner’s Manual – Proflo Electric Storage Water Heaters Filling and Draining Filling the Water Heater: Draining the Water Heater: The water heater must be filled with water Turn off the electricity supply to the before turning on the electrical supply. water heater. -
Page 10: Electrical Connection
Owner’s Manual – Proflo Electric Storage Water Heaters Electrical Connection General: Connect the active and neutral wires to the This water heater is designed for single phase terminal block and the earth wire to the earth tab 240V a.c. supply only. The electrical connection (located on the right hand side). -
Page 11: System Maintenance
This service should only be carried out by safely and efficiently. a licensed tradesperson. We recommend your local Dux Service Agent. Your water heater warranty is not conditional on completing the regular In locations where the water has Total servicing recommended in this manual. -
Page 12: Considering A Service Call
• Is the water heater the correct size for the requirements? Sizing details are contact Dux After Sales and Service. available from your Dux supplier. • Is there a leaking hot water pipe or dripping hot water tap? A small leak can waste a large quantity of hot water. -
Page 13: Warranty
Conditions apply (see instructions or statutory requirements; below). • faulty plumbing or water supply During this period Dux will repair or replace including excessive pressure; any failed component or where necessary, • faulty power supply; in the absolute discretion of Dux, replace •... - Page 14 The Australian Consumer Law (“ACL”): outside the metropolitan area of a capital city Our goods come with guarantees that and is more than 100km from a Dux office cannot be excluded under the Australian or Dux agent, the Owner will be responsible Consumer Law.
- Page 15 Warranty claims can be placed by Dux Manufacturing Limited completing the following steps: Lackey Road Moss Vale, NSW, 2577 • Contact Dux on one of the numbers Australia listed below. 1300 365 115 (Australia) • Select the “Service” option followed by the “Hot Water”...
- Page 16 Please take a moment to fill out your details for warranty Electric Storage Water Heaters registration at: www.dux.com.au/warranty For advice, repairs and service, call: or use your smartphone to scan this code: 1300 365 115 (Australia) 0800 729 389 (New Zealand)
