Owner's Manual

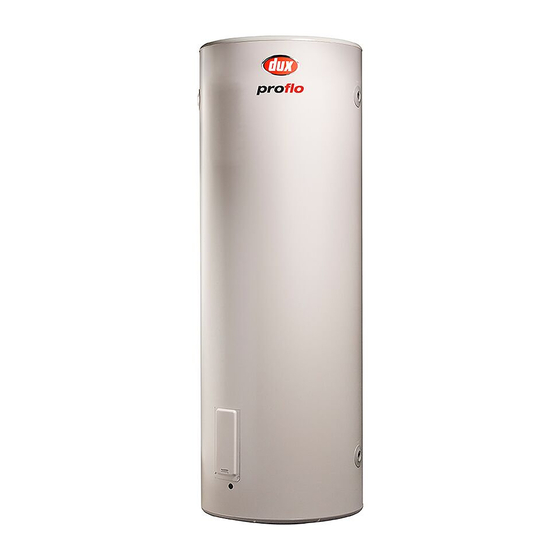

Electric Storage Water Heaters
Standard Models:
80T118, 80T124, 80T136, 125T118,
125T136, 160T124, 160T136, 250T136,
315T136, 315T236, 315T248
400T136, 400T236
An 'H' at the end of the model number indicates that the
water heater is fitted with a hard-water anode.
Installation Details
Owner's Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.
Specifications and materials may change without notice.
Effective for the above model numbers of Proflo electric storage water heaters manufactured and
sold after 1st October 2016.
H0421
0421
Rev. N
Advertisement
Table of Contents
Related Manuals for Dux ProFlo 80T118
Summary of Contents for Dux ProFlo 80T118
-
Page 1: Installation Details

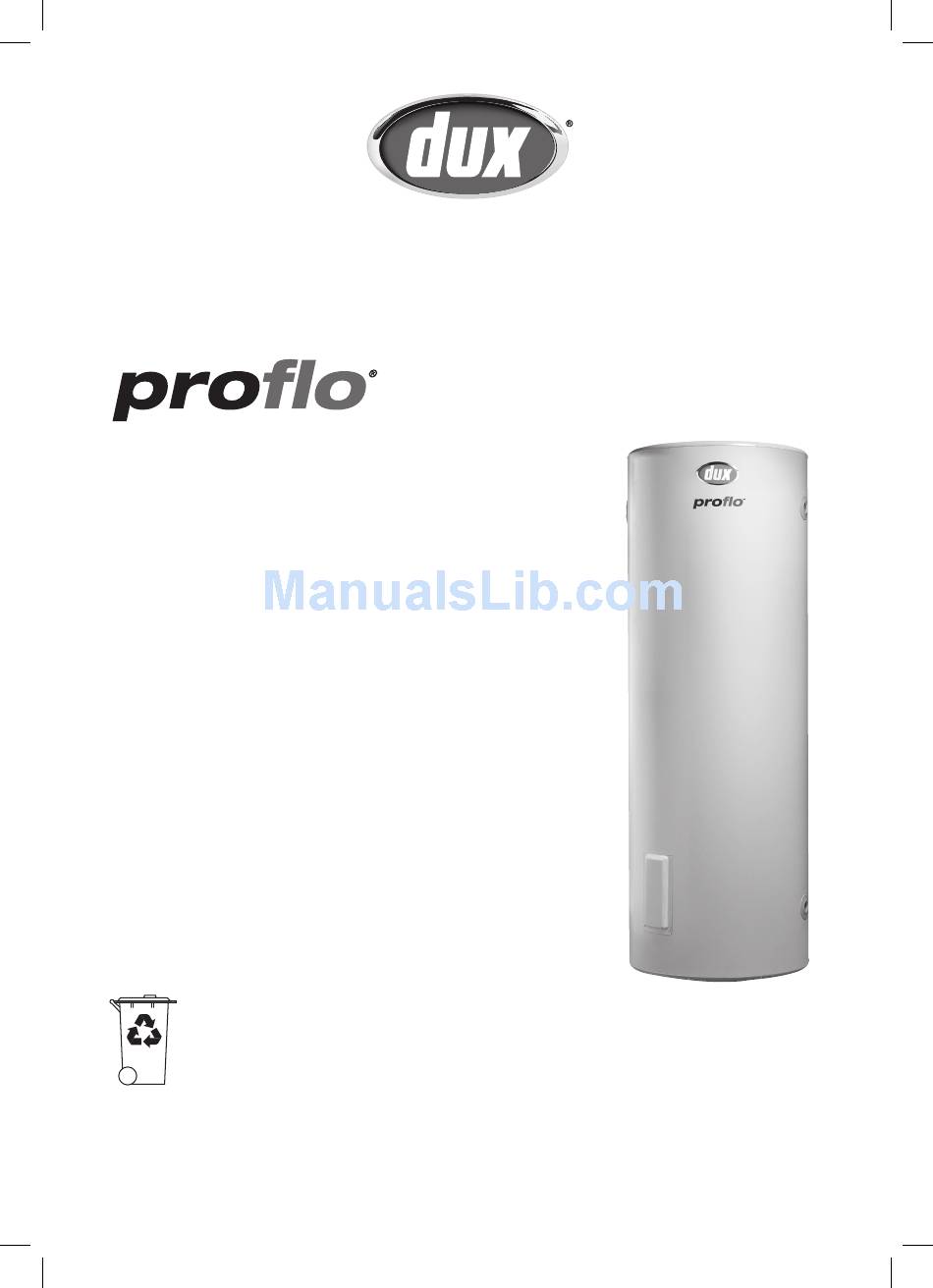

Owner’s Manual Electric Storage Water Heaters Standard Models: 80T118, 80T124, 80T136, 125T118, 125T136, 160T124, 160T136, 250T136, 315T136, 315T236, 315T248 400T136, 400T236 An ‘H’ at the end of the model number indicates that the water heater is fitted with a hard-water anode. Installation Details Owner’s Information Warranty... -
Page 2: Table Of Contents
Owner’s Manual – Proflo Electric Storage Water Heaters Contents Installation Requirements Plumbing Connections Specifications Filling and Draining Electrical Connection Safety Information System Maintenance Considering a Service Call? Warranty © Dux Manufacturing Limited 2016. All rights reserved. H0421 0421 Rev. N... -
Page 3: Installation Requirements
Owner’s Manual – Proflo Electric Storage Water Heaters Installation Requirements General: Location: This water heater must be installed The water heater should be located as by a licensed tradesperson, and in close as possible to the most frequently accordance with: used hot water outlet. -
Page 4: Plumbing Connections
Owner’s Manual – Proflo Electric Storage Water Heaters Plumbing Connections Relief Valve: The PTR Valve is not intended to enable The Pressure & Temperature Relief (PTR) connection of the water heater to Valve is supplied inside the electrical cover supplementary energy sources such as of the water heater. -
Page 5: H0421 0421 Rev. N
Note for New Zealand, South Australia replaced with a low power density Incoloy and Western Australia: heating element. Please consult Dux After It is a requirement in these locations that Sales and Service for advice if required. an expansion control valve be fitted on the cold water supply line between the non-return valve and the water heater. -
Page 6: Specifications
Owner’s Manual – Proflo Electric Storage Water Heaters Specifications Nominal Dimensions Tank Size 125L 160L 250L 315L 400L Total Height (A) 1090 1315 1445 1765 1705 Total Diameter (B) Outlet Height (C) 1095 1210 1530 1445 Inlet Height (D) Specifications 125L 160L 250L... -
Page 7: Filling And Draining
Owner’s Manual – Proflo Electric Storage Water Heaters Filling and Draining Filling the Water Heater: Draining the Water Heater: The water heater must be filled with 1. Turn off the electricity supply to the water before turning on the electrical water heater. -
Page 8: Electrical Connection
Owner’s Manual – Proflo Electric Storage Water Heaters Electrical Connection General: Connect the active and neutral wires to This water heater is designed for single the terminal block and the earth wire to phase 240V a.c. supply only. The the earth tab (located on the right hand electrical connection must comply with side). -
Page 9: Safety Information
This may be caused settings remain correct. by excessive water supply pressure, a faulty PTR Valve or a faulty thermostat. Turn off the water heater and contact Dux After Sales and Service. H0421 0421 Rev. N... - Page 10 Owner’s Manual – Proflo Electric Storage Water Heaters Safety Information Electrical Safety: Not Using Hot Water? This water heater is designed for single If the water heater is not used for two phase 240V a.c. supply only. The weeks or more, a quantity of hydrogen electrical connection must comply with (which is highly flammable) may Local Supply Authority Regulations and...
-
Page 11: System Maintenance
This service should only be carried efficiently. out by a licensed tradesperson. We recommend your local Dux Service Six Month Service: Agent. This service may be carried out by the In locations where the water has Total owner. -
Page 12: Considering A Service Call
PTR Valve may indicate a problem with inexpensive flow control valve can the water heater. Turn off the water easily be fitted to the shower outlet. heater and contact Dux After Sales and • Is the water heater the correct size Service. -
Page 13: Warranty
All components of the water heater are heater itself and the components supplied covered by a 1 year parts and labour with the water heater by Dux. The warranty warranty. The storage tank is covered for does not cover components supplied by up to a further 9 years against failure. - Page 14 The original commencement date If Dux fails to meet a guarantee under the continues to apply. ACL, your remedy for such failure may be limited to any one or more of the following: Consequential Losses: •...
- Page 15 Warranty claims can be placed by Dux Manufacturing Limited completing the following steps: Lackey Road Moss Vale, NSW, 2577 • Contact Dux on one of the numbers Australia listed below. 1300 365 115 (Australia) • Select the “Service” option followed by the “Hot Water”...
-
Page 16: Preventative Maintenance
Please take a moment to fill out your details for warranty Electric Storage Water Heaters registration at: www.dux.com.au/warranty For advice, repairs and service, call: or use your smartphone to scan this code: 1300 365 115 (Australia) 0800 729 389 (New Zealand)
