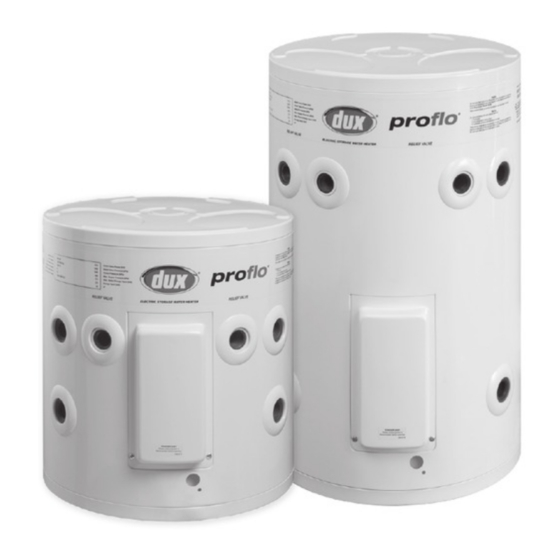

Dux Proflo 25S124 Owner's Manual

25l and 50l electric storage water heater

Hide thumbs

Table Of Contents

Quick Links

Owner's Manual

25L and 50L Electric Storage Water Heater

Models:

25S124, 25S136, 25S124P,

50S124, 50S136, 50S124P

Installation Details

Owner's Information

Warranty

For advice, repairs and service, call:

1300 365 115 (Australia)

0800 729 389 (New Zealand)

Carefully remove all packaging and

transit protection from the heater before

installation. Dispose of the packaging

responsibly using re-cycling facilities

where they exist.

Specifications and materials may change without notice.

Effective for the above model numbers of electric storage water heaters manufactured and

sold after 1st August 2020.

028299

Rev. B

Table of Contents

Need help?

Do you have a question about the Proflo 25S124 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dux Proflo 25S124

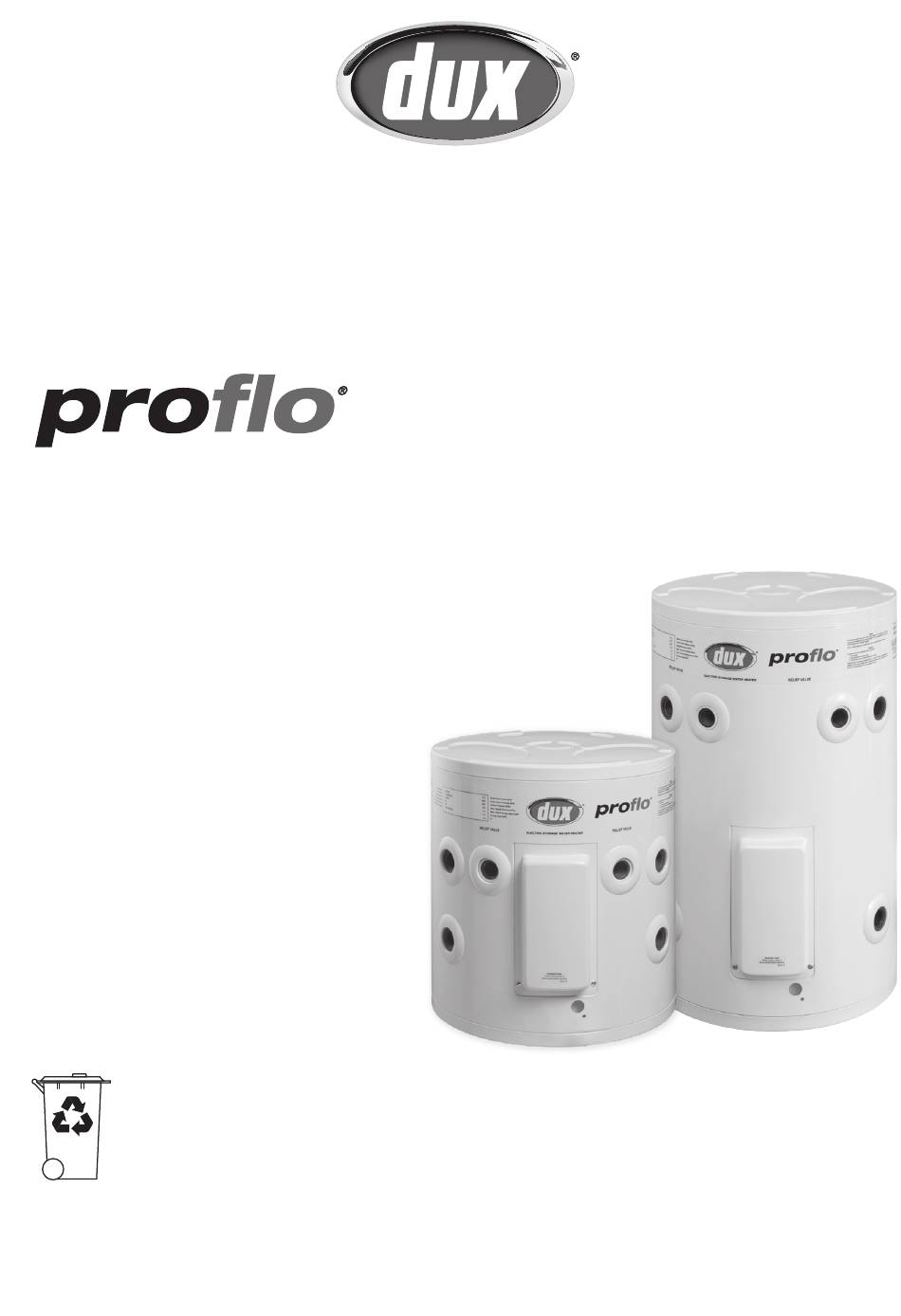

Page 1 Owner’s Manual 25L and 50L Electric Storage Water Heater Models: 25S124, 25S136, 25S124P, 50S124, 50S136, 50S124P Installation Details Owner’s Information Warranty For advice, repairs and service, call: 1300 365 115 (Australia) 0800 729 389 (New Zealand) Carefully remove all packaging and transit protection from the heater before installation.
Page 2: Important Safety Information
Owner’s Manual – Proflo 25/50 Litre Water Heater Important Safety Information WARNING – THIS APPLIANCE recommended that a hot tap be turned on MAY DELIVER WATER AT HIGH for several minutes at a sink, basin or bath, TEMPERATURE. REFER TO THE but not a dishwasher, clothes washer or PLUMBING CODE OF AUSTRALIA other appliance.
Page 3 This device must not be tampered with a faulty thermostat. or removed. Replacement of this device Turn off the water heater and contact Dux must only be carried out by a licensed After Sales and Service. tradesperson or the manufacturer.
Page 4 Satisfy Solution for the PCA and a Verification Refer to local regulations before installing the Method for Clause G12 of the NZBC. Other water heater in a roof space. methods of compliance are available. Dux recommends that installations conform with WATER HEATER SUPPORT: AS/NZS 3500.4.
Page 5: Table Of Contents
Owner’s Manual – Proflo 25/50 Litre Water Heater Contents Important Safety Information Installation Requirements Plumbing Connections Specifications Filling and Draining Electrical Connection System Maintenance Considering a Service Call? Warranty © Dux Manufacturing Limited 2020. All rights reserved. 028299 Rev. B...
Page 6: Plumbing Connections
Owner’s Manual – Proflo 25/50 Litre Water Heater Plumbing Connections Relief Valve: Refer to AS/NZS 3500.4 for guidance on these The Pressure & Temperature Relief (PTR) Valve, types of installations. along with a brass reducer, is supplied loose with the water heater. Hot Water Connection: The hot water pipe is to be connected to either The PTR Valve rating is 1,000 kPa.
Page 7 0.80, the electrical heating element should be replaced with a low power density Incoloy heating element. Please consult Dux After Sales and Service for advice if required. Cold Water Connection: The water heater is intended to be permanently connected to the water supply main, and not connected by a hose-set.
Page 8: Specifications
Owner’s Manual – Proflo 25/50 Litre Water Heater Specifications Nominal Dimensions Specifications Total Height (A) Storage Capacity (L) Total Width (B) Hot Water Delivery (L) Outlet Height (C) Net Weight Empty (kg) Inlet Height (D) Element Sizes (kW) 2.4, 3.6 2.4, 3.6 Electrical Entry (E) Relief Valve:...
Page 9: Filling And Draining
Owner’s Manual – Proflo 25/50 Litre Water Heater Filling and Draining Filling the Water Heater: Draining the Water Heater: The water heater must be filled with water Turn off the electricity supply to the before turning on the electrical supply. water heater.
Page 10: Electrical Connection
Owner’s Manual – Proflo 25/50 Litre Water Heater Electrical Connection General: The electrical cover may be removed by This water heater is designed for single undoing the two screws at the bottom of the phase 240V a.c. supply only. The electrical cover and sliding the cover downwards to connection must comply with Local Supply disengage the top edge.
Page 11: System Maintenance
Owner’s Manual – Proflo 25/50 Litre Water Heater System Maintenance Regular servicing will help to extend the life Five Year Service: of the water heater, and keep it operating This service should only be carried out by a safely and efficiently. licensed tradesperson.
Page 12: Considering A Service Call
• Is there a leaking hot water pipe or contact Dux After Sales and Service. dripping hot water tap? A small leak can waste a large quantity of hot water. Replace faulty tap washers and arrange for your plumber to rectify any leaking pipe work.
Page 13: Warranty
Conditions apply (see below). • alterations or repair of the water heater During this period Dux will repair or replace any other than by an accredited and licensed failed component or where necessary, in the service agent or technician;...
Page 14 If Dux fails to meet a guarantee under the ACL, The original commencement date continues to your remedy for such failure may be limited to apply.
Page 15 Warranty claims can be placed by completing Dux Manufacturing Limited the following steps: Lackey Road Moss Vale, NSW, 2577 • Contact Dux on one of the numbers listed Australia below. 1300 365 115 (Australia) • Select the “Service” option followed by the “Hot Water”...
Page 16 Please take a moment to fill out your details for warranty Electric Storage Water Heaters registration at: www.dux.com.au/warranty For advice, repairs and service, call: or use your smartphone to scan this code: 1300 365 115 (Australia) 0800 729 389 (New Zealand)

This manual is also suitable for:

Proflo 25s136 Proflo 25s124p Proflo 50s124 Proflo 50s136 Proflo 50s124p
