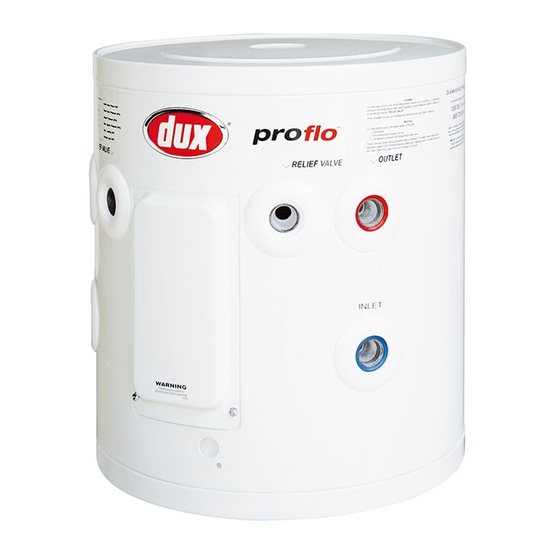

Owner's Manual
25L and 50L Litre Electric Storage Water Heater
Models:
25W124, 25W136, 25W124P,
50W124, 50W136, 50W124P
Installation Details
Owner's Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.
Specifications and materials may change without notice.
Effective for all Proflo electric storage water heaters manufactured and sold after 1st Feb 2009.
H3699
3699
Rev. F
Advertisement
Table of Contents
Related Manuals for Dux Proflo 25W124
Summary of Contents for Dux Proflo 25W124

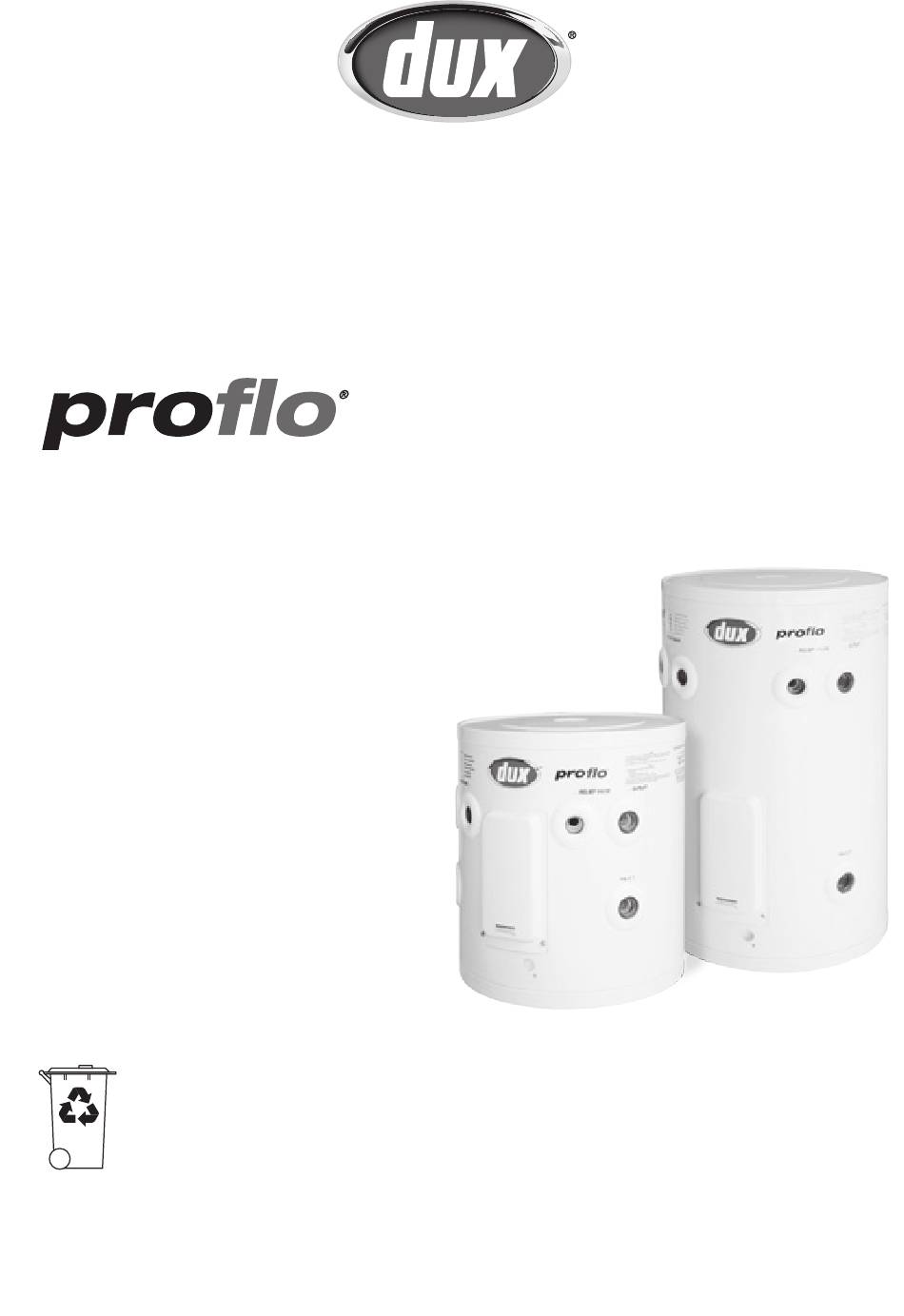

- Page 1 Owner’s Manual 25L and 50L Litre Electric Storage Water Heater Models: 25W124, 25W136, 25W124P, 50W124, 50W136, 50W124P Installation Details Owner’s Information Warranty For advice, repairs and service, call: 1300 365 115 (Australia) 0800 729 389 (New Zealand) Carefully remove all packaging and transit protection from the heater before installation.
-
Page 2: Table Of Contents
Owner’s Manual – Proflo 25/50 Litre Water Heater Contents Welcome To Dux Hot Water Installation Details Plumbing Connections Electrical Connection Specifications Operating Instructions Safety Information Service Information Troubleshooting Warranty Warranty Card © Dux Manufacturing Limited 2011. All rights reserved. H3699 3699 Rev. F... -
Page 3: Welcome To Dux Hot Water
– safely, economically, and for many years to come. To be upfront about it, we want Dux to be your brand of choice. So you can depend on us to provide more than just a hot water system. -
Page 4: Installation Details
Owner’s Manual – Proflo 25/50 Litre Water Heater Installation Details Installation Requirements Water Supply Pressure This water heater must be installed This water heater is designed for direct by a licensed tradesperson, and in connection to water supply pressures accordance with •... - Page 5 Owner’s Manual – Proflo 25/50 Litre Water Heater Installation Details We recommend a plinth be installed Location The water heater should be located as under the water heater where the water heater is subjected to wet close as possible to the most frequently used hot water outlet.
-
Page 6: Plumbing Connections
Owner’s Manual – Proflo 25/50 Litre Water Heater Plumbing Connections Pressure & Temperature Relief blocked. It is normal for the PTR valve Valve to leak a small amount of water during The Pressure & Temperature Relief Valve heating cycles. is supplied loose with the water heater. Danger Please refer to the specifications Failure to operate the relief valve easing... - Page 7 Owner’s Manual – Proflo 25/50 Litre Water Heater Plumbing Connections Hot Water Connection Temperature Protection The hot water pipe should be connected Water heaters can produce very hot to either of the RP¾/20 sockets marked water. To reduce the risk of scald injury, OUTLET at the top of the unit.
-
Page 8: Electrical Connection
Owner’s Manual – Proflo 25/50 Litre Water Heater Electrical Connection This water heater is designed for Danger: The operation of the thermal single phase 240V A.C supply only. cut-out indicates a possibly dangerous The electrical connection must situation. Do NOT reset the thermal comply with Local Supply Authority cutout until the water heater has been Regulations and AS/NZS3000. -
Page 9: Specifications
Owner’s Manual – Proflo 25/50 Litre Water Heater Specifications Nominal Dimensions 25W1 50W1 Specifications 25W1 50W1 Total Height (A) Storage Capacity (L) Total Width (B) Hot Water Delivery (L) Outlet Height (C) Net Weight Empty (kg) Inlet Height (D) Element Sizes (kW) 2.4, 3.6 2.4, 3.6 Electrical Entry (E) -
Page 10: Operating Instructions
Dux supplier. use of the appliance by a person Water can also be very corrosive, the responsible for their safety. -
Page 11: Safety Information
Owner’s Manual – Proflo 25/50 Litre Water Heater Safety Information Important Warning For safe performance, this water heater The PTR Valve and its drain outlet pipe is fitted with: must not be sealed or blocked. It is normal for the PTR valve to leak a small 1. -
Page 12: Service Information
Turn carried out by your local Dux agent. on the water supply. The service should include the following: vii. Flush the heater until clear water appears. -
Page 13: Troubleshooting
For example, if you have the problem has not been identified, a 315 litre storage tank and you please contact Dux on 1300 365 115. are using 450 litres of water it is possible that there will be certain... - Page 14 This may be caused by excessive water supply pressure, a faulty Pressure & Temperature Relief Valve or a faulty thermostat. Turn off the electricity supply and contact your Dux Hot Water. High Electricity Bills • Is the Pressure & Temperature...
-
Page 15: Warranty
Replacement Guarantee warranty will commence one (1) month If an inner cylinder fails on a Dux hot after the date of manufacture (refer to water unit within a further four (4) years the data label on the Unit). - Page 16 If Dux fails to meet a guarantee implied accidental damage, abuse, misuse, by the ACL, your remedy for such failure maltreatment, abnormal stress or strain,...
- Page 17 Dux, to make the Unit accessible for repair or replacement. As required by legislation, including under the ACL, any claims for damage...
-
Page 18: Warranty Card
Privacy Act Amendment (2000): If and whenever warranty service is required, your personal details will be given to an Authorised Dux Service Agent only for the express purpose of carrying out the arranged warranty service work agreed by you the client and Dux Manufacturing Limited. - Page 19 Owner’s Manual – Proflo 25/50 Litre Water Heater H3699 3699 Rev. F...
- Page 20 Owner’s Manual – Proflo 25/50 Litre Water Heater 25L and 50L Litre Electric Storage Water Heater For advice, repairs and service, call: 1300 365 115 (Australia) 0800 729 389 (New Zealand) H3699 3699 Rev. F...
