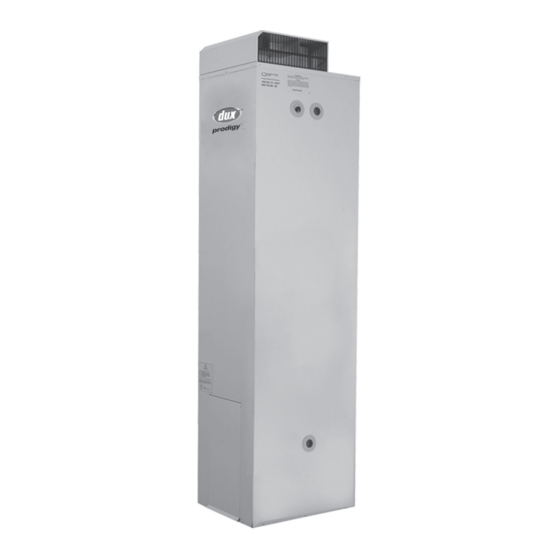

4 star gas hot water heater

Advertisement

Owner's Manual
4 Star Gas Hot Water Heater
Models:
135ZN / 135ZL
170ZN / 170ZL

Installation Details

Owner's Information
Warranty
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Carefully remove all packaging and
transit protection from the heater before
installation. Dispose of the packaging
responsibly using re-cycling facilities
where they exist.
Specifications and materials may change without notice.
Effective for all Prodigy 4 water heaters manufactured and sold after 1st December 2012.
H3071
3071
Rev. I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 135ZN and is the answer not in the manual?

Questions and answers

Summary of Contents for Dux 135ZN

  • Page 1: Installation Details

    Owner’s Manual 4 Star Gas Hot Water Heater Models: 135ZN / 135ZL 170ZN / 170ZL Installation Details Owner’s Information Warranty For advice, repairs and service, call: 1300 365 115 (Australia) 0800 729 389 (New Zealand) Carefully remove all packaging and transit protection from the heater before installation.
  • Page 2: Table Of Contents

    Owner’s Manual – Prodigy 4 Contents Welcome To Dux Hot Water Installation Details Plumbing Connections Specifications Gas Connections Commissioning Adjustments Owner’s Information System Maintenance Troubleshooting Warranty Other Information © Dux Manufacturing Limited 2012. All rights reserved. H3071 3071 Rev. I...
  • Page 3: Welcome To Dux Hot Water

    – safely, economically, and for many years to come. To be upfront about it, we want Dux to be your brand of choice. So you can depend on us to provide more than just a hot water system.
  • Page 4: Installation Details

    Owner’s Manual – Prodigy 4 Installation Details Outdoor Tank Installation Safety The water heater must be installed This appliance is not intended for use outdoors, with the minimum clearances by persons (including children) with as shown in the figure below. reduced physical, sensory or mental capabilities, or lack of experience and We recommend a plinth be installed...
  • Page 5: Plumbing Connections

    Owner’s Manual – Prodigy 4 Plumbing Connections Plumbing Connections Installation Requirements Water Supply Pressure This water heater must be installed This water heater is designed for direct by a licensed tradesperson, and in connection to water supply pressures of accordance with: no greater than: All Litre Models –...
  • Page 6: Owner's Manual – Prodigy

    Owner’s Manual – Prodigy 4 Plumbing Connections Pressure & Temperature Relief blocked. It is normal for the PTR valve Valve to leak a small amount of water during The Pressure & Temperature Relief Valve heating cycles. is supplied loose with the water heater. Danger The valve rating is: Failure to operate the relief valve easing...
  • Page 7: Insulation Of Pipes

    Owner’s Manual – Prodigy 4 Plumbing Connections Hot Water Connection Temperature Protection The hot water pipe should be connected Water heaters can produce very hot to either of the RP¾/20 sockets marked water. To reduce the risk of scald injury, OUTLET at the top of the unit.
  • Page 8: Specifications

    System Components Component Description PTR Valve Hot Water Outlet To House Cold Water Inlet Tank Specifications Model Numbers 135ZN / 135ZL 170ZN / 170ZL Capacity (L) Net Weight Empty (kg) Relief Valve Pressure (kPA) 1400 1400 Gas Consumption 135ZN: 23.5 MJ/h 170ZN: 27 MJ/h 135ZL: 22.5 MJ/h...
  • Page 9: Gas Connections

    Owner’s Manual – Prodigy 4 Gas Connections Refer to the Data Label for correct gas type. Gas piping should be connected through the side of the case (see figure below). The plastic grommet must be installed around the pipe and clipped into the case.
  • Page 10: Lighting The Water Heater

    Owner’s Manual – Prodigy 4 Gas Connections Lighting the Water Heater 4. Depress the knob fully (until The water heater must be filled with disappears below housing) and after water before lighting. Instructions for thirty (30) seconds, whilst keeping lighting procedure are on the inside of the knob depressed, repeatedly the access cover and shown below: press the igniter button (for up to 40...
  • Page 11 Owner’s Manual – Prodigy 4 Gas Connections 9. Turn the knob to a higher number Shutting Down The Water Heater for higher water temperatures or 1. Turn the knob to “•” (off) position. a lower number for lower water 2. Turn water off at water isolating temperatures.
  • Page 12: Commissioning Adjustments

    Owner’s Manual – Prodigy 4 Commissioning Adjustments Note: Commissioning adjustments Note: Pressure adjustments at gas can be done only by a licensed cylinder regulator should be conducted tradesperson. as required to ensure correct supply pressure to water heater as per Main Gas Pressure Regulator AS5601/AG601.
  • Page 13: Operating Instructions

    If problems are encountered interfere with the appliance. in this process contact the Dux Service Warning: it is essential for the safe Department. operation of this gas heater that clothing...
  • Page 14: Owner's Information

    Caution: All water heaters have Water Quality the ability to produce hot water in a Your Dux water heater has been surprisingly short time. To reduce the manufactured to suit water conditions of risk of scald injury, it is mandatory most Australian metropolitan supplies.
  • Page 15 What Should I Do During Holidays? How Does My System Work? If the hot water system is not used, The Dux water storage tank is used for two weeks or more, a quantity to store the heated water ready of hydrogen gas, which is highly for household use.
  • Page 16: System Maintenance

    Owner’s Manual – Prodigy 4 System Maintenance This Dux water heater is designed such The service should include the following: that there is little to do regarding system • Replace the Pressure & maintenance other than that detailed in Temperature Relief Valve.
  • Page 17: Troubleshooting

    • Consider that often the hot water please contact Dux on 1300 365 115. usage of showers, washing machines and dishwashers can No Hot Water be under estimated. Review these •...
  • Page 18 Steady flow (PTR) – more than 20L per This may be caused by excessive water supply pressure, a faulty Pressure & Temperature Relief Valve or a faulty thermostat. Turn off the electricity supply and contact your Dux Hot Water. H3071 3071 Rev. I...
  • Page 19: Warranty

    (refer to the data label on the unit). which may have arisen as a result 7 Year Replacement Guarantee of, without limitation, the following: If an inner cylinder fails on a Dux hot accidental damage, abuse, misuse, H3071 3071...
  • Page 20 Owner’s Manual – Prodigy 4 Warranty maltreatment, abnormal stress or strain, If Dux fails to meet a guarantee under harsh or adverse water conditions the ACL, your remedy for such failure including excessive water pressure or may be limited to any one or more of the...
  • Page 21 Dux, to make the Unit accessible for repair or replacement. As required by legislation, including under the ACL, any claims for damage...
  • Page 22: Other Information

    Privacy Act Amendment (2000): If and whenever warranty service is required, your personal details will be given to an Authorised Dux Service Agent only for the express purpose of carrying out the arranged warranty service work agreed by you the client and Dux Manufacturing Limited.
  • Page 23 Owner’s Manual – Prodigy 4 H3071 3071 Rev. I...
  • Page 24: Preventative Maintenance

    Maintaining your hot water system out your details for warranty will help extend its lifespan and registration at: reduce running costs. www.dux.com.au/warranty Please register for preventative maintenance at: This will ensure all your current details are registered with us for prompt warranty www.dux.com.au/maintenance...
