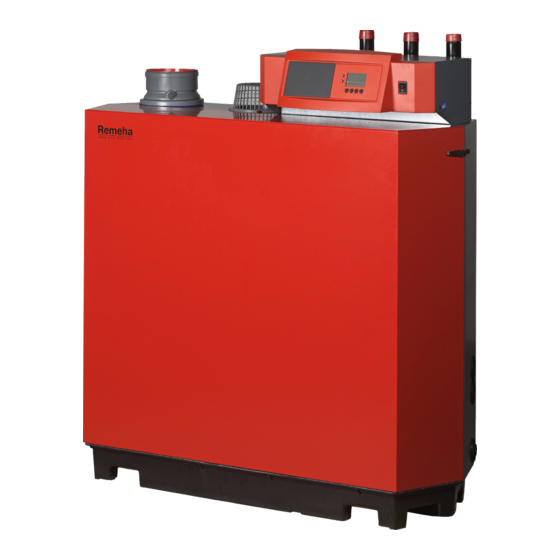

Gas fired condensing boiler
Gas 210 ECO PRO

Advertisement

Table of Contents
loading

Related Manuals for REMEHA Gas 210 ECO PRO

Summary of Contents for REMEHA Gas 210 ECO PRO

  • Page 1 United Kingdom ErP information Gas fired condensing boiler Gas 210 ECO PRO...
  • Page 2 In order to ensure continued safe and efficient operation we recommend that the product is regularly maintained. Our Service and After Sales organization can assist with this. We hope you will receive many years of satisfactory service. Remeha B.V. Postbus 32 7300 AA Apeldoorn +31 (0)55 549 6969 http://nl.remeha.com...

  • Page 3: Table Of Contents

    Contents Contents Safety ................... . 4 Recommendations .

  • Page 4: Safety

    1 Safety Safety Recommendations Danger This appliance must not be used by people (and children) with a physical, sensory or mental disability, or by people with a lack of technical experience, unless they are supervised by someone who can assure their safety, or they have been instructed in the correct use of the appliance.
  • Page 5 Instruction and warning labels must never be removed or covered and must be clearly legible throughout the entire service life of the boiler. Replace damaged or illegible instruction and warning labels immediately. Note Modifications to the boiler require the written approval of Remeha. 7638135 - v.02 - 13082015...

  • Page 6: About This Manual

    2 About this manual About this manual Symbols used 2.1.1 Symbols used in the manual This manual uses various danger levels to draw attention to special in­ structions. We do this to improve user safety, to prevent problems and to guarantee correct operation of the appliance.

  • Page 7: Technical Specifications

    Gas type Connection pressure (mbar) G20 (H gas) 2H3P G31 (propane) 37-50 Technical data Tab.1 General Gas 210 ECO PRO 210-80 210-120 210-160 210-200 Nominal output (Pn) min-max 16 - 87 22 - 115 29 - 166 39 - 200 Central heating operation (80/60°C)
  • Page 8 3 Technical specifications Tab.3 Central heating circuit data Gas 210 ECO PRO 210-80 210-120 210-160 210-200 Water content Water operating pressure Water operating pressure (PMS) Water temperature °C Operating temperature °C Pressure drop secondary circuit (ΔT=20K) mbar Minimum flow 1120...
  • Page 9 3 Technical specifications Gas 210 ECO PRO 210-80 210-120 210-160 210-200 Standby mode 0.004 0.004 0.004 0.004 Other items Standby heat loss stby Ignition burner power consumption Annual energy consumption Sound power level, indoors Emissions of nitrogen oxides mg/kWh (1) Low temperature means 30°C for condensing boilers, 37°C for low temperature boilers and 50°C (at heater inlet) for other heating appli­...

  • Page 10: Electrical Diagram

    3 Technical specifications Electrical diagram Fig.1 Electrical diagram PCU-01 Pump Mains On / Off 1 2 3 1 2 3 4 1 2 3 1 2 3 4 1..6 4 6 7 10 SU-01 GN/YW PE-2 PE-6 PE-4 PE-5 PE-7 GN/YW GN/YW GN/YW...
  • Page 11 3 Technical specifications GN Green RD Red Green/Yellow WH White YW Yellow GY Grey Yellow/White OR Orange 7638135 - v.02 - 13082015...

  • Page 12: Commissioning

    4 Commissioning Commissioning Gas settings 4.1.1 Adaptation to a different gas type Warning Only a qualified installer may carry out the following operations. Tab.7 Factory setting G20 (H gas) Parameter Description 210-80 210-120 210-160 210-200 Maximum speed for central heating Minimum speed for central heating Start speed Restrictor...
  • Page 13 4 Commissioning Tab.9 Checking/setting values for O at full load for G20 Values at full load for 210-80 3,9 - 5,2 - 6,5 8,1 - 8,8 - 9,5 210-120 3,9 - 5,2 - 6,5 8,1 - 8,8 - 9,5 210-160 4,3 - 5,2 - 9,3 210-200...
  • Page 14 4 Commissioning Tab.12 Checking/setting values for O at part load for G31 Values at part load for G31 210-80 4,1 - 4,9 10,5 - 11,0 210-120 4,1 - 4,9 10,5 - 11,0 210-160 4,1 - 4,9 10,5 - 11,0 210-200 4,1 - 4,9 10,5 - 11,0...

  • Page 15: Settings

    5 Settings Settings Parameter descriptions Tab.13 Factory setting Parameter Description Adjustment 210-80 210-120 210-160 210-200 range Minimum pump speed 0% – 100% Maximum pump speed 0% – 100% Displaying the measured values The control unit continually registers various values from the boiler and the connected sensors.
  • Page 16 5 Settings Status Sub-status Burner stop Burner off Post ventilation Fan off Close flue damper Stop fan Close the external gas valve Boiler stop (end of heat demand) Pump post circulation Pump off Close hydraulic valve Start anti-swing Control stop Wait for burner start Anti-swing Blocking...

  • Page 17: Disposal/Recycling

    6 Disposal/recycling Disposal/recycling Removal/recycling Note Removal and disposal of the boiler must be carried out by a quali­ fied person in accordance with local and national regulations. To remove the boiler, proceed as follows: 1. Switch off the boiler's electrical connection. 2.

  • Page 18: Appendix

    7 Appendix Appendix ErP information 7.1.1 Product card Tab.15 Product card Remeha - Gas 210 ECO PRO 210-80 210-120 210-160 210-200 Seasonal space heating energy efficiency class (Prated or Psup) Rated heat output Seasonal space heating energy efficiency Annual energy consumption...
  • Page 19 7 Appendix Description – – – – – Caution If possible, use the pump modulation signal. This provides the most accurate pump control. In positions 3 to 9 the control PCB receives no signal from the boiler and the boiler responds as in position 0. If the automatic burner unit does not support pump modulation, the pump will behave as an on/off pump.
  • Page 20 7 Appendix 7638135 - v.02 - 13082015...
  • Page 21 7 Appendix 7638135 - v.02 - 13082015...
  • Page 22 7 Appendix 7638135 - v.02 - 13082015...
  • Page 23 © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical de­ scriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. Subject to alterations.
  • Page 24 Remeha Commercial UK Innovations House 3 Oaklands Business Centre Oaklands Park RG41 2FD Wokingham Tel: +44 (0)118 978 3434 Fax: +44 (0)118 978 6977 Internet: www.remeha.co.uk E-mail: boilers@remeha.co.uk 7638135 - v.02 - 13082015 7638135-001-02...
