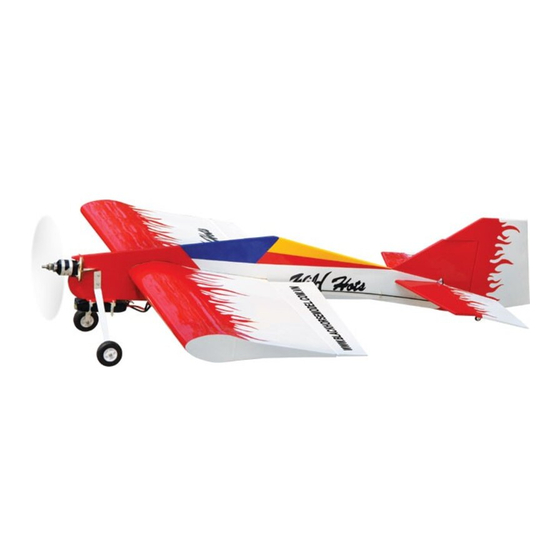

SPECIFICATION
Wingspan :
Length
Weight
Parts listing required (not included) .
Battery:
Electric motor : KMS 2820/05.
Radio
Servo
Speed control :
Instruction Manual book
1,020mm
:
1,190mm
:
1.1kg
3 CELLS-LI-POLY-11.1V-2000 mA.h.
:
04 channels.
:
04 mini servos.
40A.
40.16 in.
46.85 in.
2.42Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIlD HOTS and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model WIlD HOTS

Summary of Contents for Black Horse Model WIlD HOTS

  • Page 1 Instruction Manual book SPECIFICATION Wingspan : 1,020mm 40.16 in. Length 1,190mm 46.85 in. Weight 1.1kg 2.42Lbs. Parts listing required (not included) . Battery: 3 CELLS-LI-POLY-11.1V-2000 mA.h. Electric motor : KMS 2820/05. Radio 04 channels. Servo 04 mini servos. Speed control : 40A.
  • Page 2 WILD HOTS-Item code:BH84 Instruction Manual. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your WILD HOTS. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    WILD HOTS-Item code:BH84 Instruction Manual. SAFETY PRECAUTION. + This is not a toy + Be sure that no other flyers are using your radio frequency. + Wear safety glasses. + Keep loose clothing and wires away from C/A glue the propeller.
  • Page 4 WILD HOTS-Item code:BH84 Instruction Manual. Cutting through the covering and balsa struc- ture Epoxy glue Pen. C/A glue Remove covering.

  • Page 5: Servo Installation

    WILD HOTS-Item code:BH84 Instruction Manual. C/A glue C/A glue C/A glue SERVO INSTALLATION. C/A glue C/A glue Repeat the procedure for the other wing half.

  • Page 6: Installing The Aileron Linkages

    WILD HOTS-Item code:BH84 Instruction Manual. INSTALLING THE AILERON LINKAGES. 1) Using a ruler & pen to draw a straight line as below picture. 2) Locate nylon control horns, nylon con- trol horn backplates and 2 machine screws. 3) Position the aileron horn on the bottom side of aileron.

  • Page 7: Vertical Installation

    WILD HOTS-Item code:BH84 Instruction Manual. C/A glue Repeat the procedure for the other wing half. VERTICAL INSTALLATION. 1. Using a modeling knife cut away the covering from the fuselage for the rudder and remove it. Remove covering C/A glue 2. Slide the rudder into the fuselage as same as picture below.
  • Page 8 WILD HOTS-Item code:BH84 Instruction Manual. Pen. Using a triangle, check to ensure that the ver- tical stabilizer is aligned 90º to the horizontal stabilizer. Vertical Stabilizer. Horizontal 90º Stabilizer. Remove covering...

  • Page 9: Control Horn Installation

    WILD HOTS-Item code:BH84 Instruction Manual. CONTROL HORN INSTALLATION. Control horns as same as method of aileron wing. See pictures below: Epoxy glue 2 X 12mm. Drill a hole 2mm diameter. C/A glue C/A glue Secure C/A glue Aileron pushrod.

  • Page 10: Rudder Control Horn Installa- Tion

    WILD HOTS-Item code:BH84 Instruction Manual. Cut. Elevator servo. C/A glue Mark point RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the Secure. way of aileron control horn. Please see pic- tures below. Rudder pushrod. Secure. C/A glue...

  • Page 11: Main Gear Installation

    WILD HOTS-Item code:BH84 Instruction Manual. Cut. Elevator pushrod. Rudder pushrod. MAIN GEAR INSTALLATION. See pictures below: Secure. 3 x 20 mm.
  • Page 12 WILD HOTS-Item code:BH84 Instruction Manual. INSTALLING THE MAIN LANDING GEAR. 1. The blind nuts are already mounted in- side the fuselage. 2. The holes in the landing gear should be to accept the mounting bolts. 3. Using the hardware provided, mount the main landing gear to the fuselage.
  • Page 13 WILD HOTS-Item code:BH84 Instruction Manual. INSTALLING THE RECEIVER AND BATTERY. Tie wrap. Battery. BALANCING. 1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 115MM BACK FROM THE LEADING EDGE OF THE WING.

  • Page 14: Pre-Flight Check

    6) Properly balance the propeller. We wish you many safe and enjoy- able flights with your WILD HOTS. CONTROL THROWS. 1) We highly recommend setting up a plane using the control throws listed.
