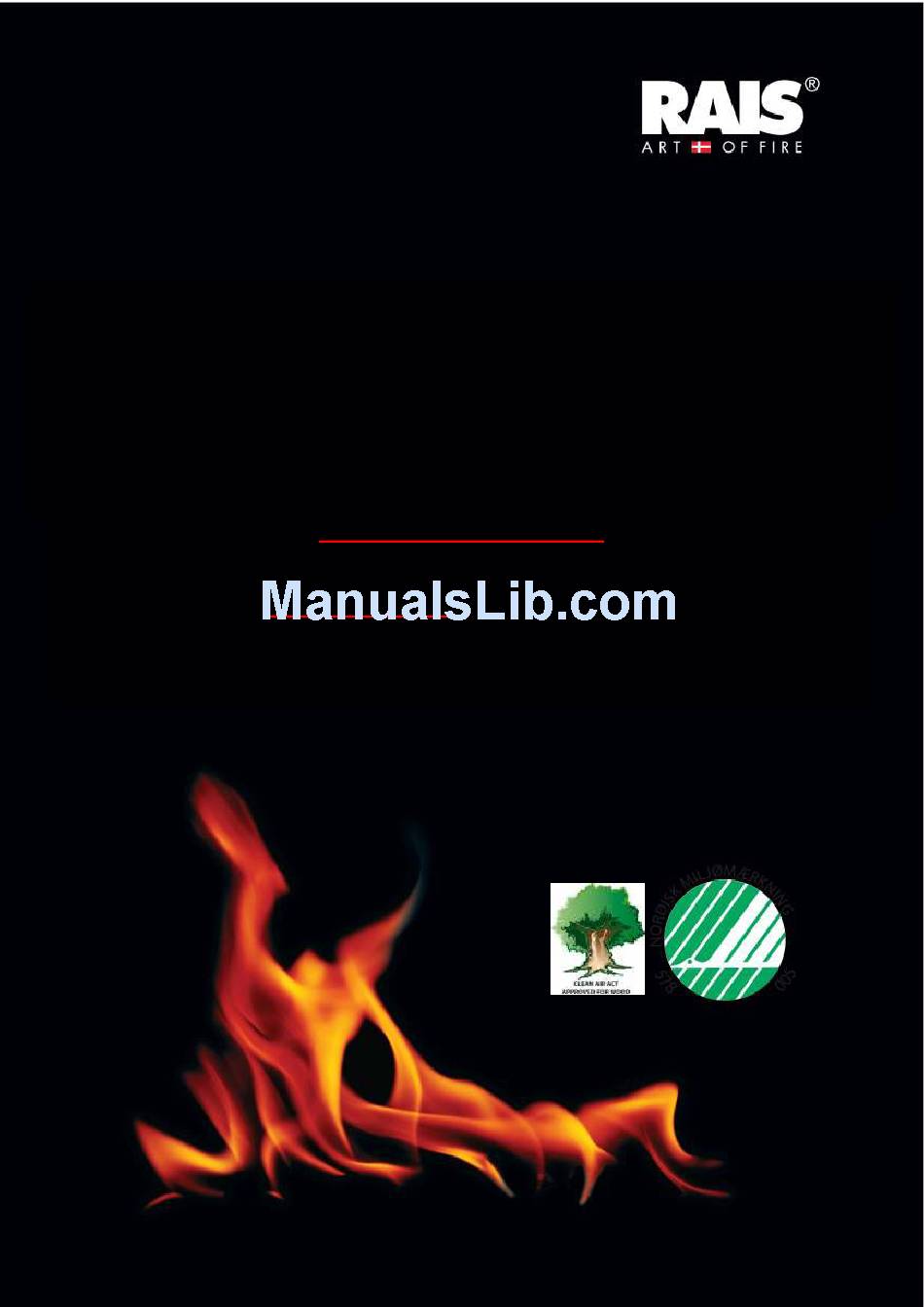

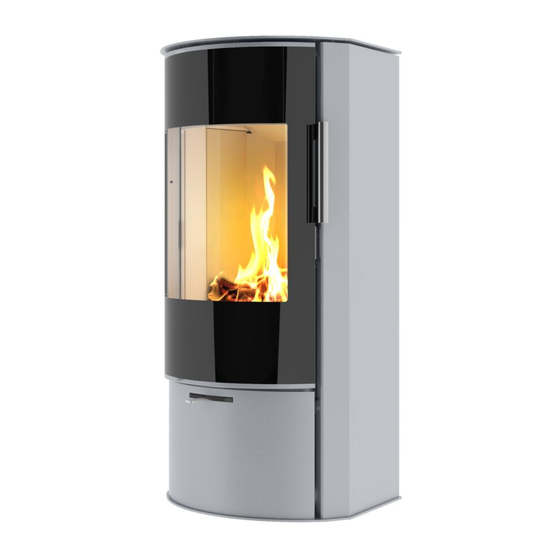

INSTRUCTIONS FOR INSTALLATION,
USE AND MAINTENANCE
RAIS RINA, RAIS VIVA & RAIS JUNO
INCLUDING CLASSIC MODELS
IMPORTANT INFORMATION
On first lighting the stove you must be careful not to touch the painted
surfaces and it is MOST IMPORTANT that the door is kept slightly 'ajar' in
order for the door seal and sealant to cure.
This will prevent the door seal sticking to the painted body and becoming
damaged.
June 2015
Issue 7a

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rina and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RAIS Rina

Summary of Contents for RAIS Rina

  • Page 1 INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE RAIS RINA, RAIS VIVA & RAIS JUNO INCLUDING CLASSIC MODELS IMPORTANT INFORMATION On first lighting the stove you must be careful not to touch the painted surfaces and it is MOST IMPORTANT that the door is kept slightly ‘ajar’ in order for the door seal and sealant to cure.
  • Page 2 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 3 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Date : June 2015 : 7a HETAS SUPPLEMENT ……………………………………………………. MANUFACTURERS PLATE……………………………………………….. INTRODUCTION ………………………………………………………….. WARRANTY …………………………………………………….………….. SPECIFICATIONS ………………………………………………………….. INSTALLATION INSTRUCTIONS ………………………………….……… CONVETION ………………………………………………………………… CHIMNEY ……………………………………….……………….…………. INSTALLATION …………………………….……………………..……... CHANGING THE CHIMNEY CONNECTION ……………………………..
  • Page 4 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY...
  • Page 5 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Chimney For the stove to perform satisfactorily the chimney height must be sufficient to ensure an adequate draught of approximately 15 Pa so as to clear the products of combustion and prevent smoke problems into the room.
  • Page 6 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Approved Document J, to a distance of 30 cm in front of the stove and 15 cm to each side measuring from the door of the combustion chamber...
  • Page 7 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models SUPPLEMENTARY OPERATING INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET READ THE INSTRUCTION BOOKLET AND THESE INSTRUCTIONS READ THE INSTRUCTION BOOKLET AND THESE INSTRUCTIONS...
  • Page 8 Secretary of State or Minister in the devolved administrations. Rais Rina 90, Rina 90 Classic, Rina 90 Soapstone, Rina 90 Classic Soapstone, Viva 98, Viva 98G, Viva 98 Classic, Viva 98G Classic, Viva 120, Viva 120G, Viva 120 Classic, Viva 120G Classic, Juno, Juno G, Juno Classic and Juno G Classic.
  • Page 9 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models USER OPERATING INSTRUCTIONS - WOOD Please read the important notices given above before referring to the main instruction book for detailed operating instructions. HETAS Ltd Approval These appliances have been approved by HETAS Ltd as intermittent operating appliances for burning wood logs only.
  • Page 10 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 11 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 12 These appliances have been approved for use in Smokeless Zones A Rais wood burning stove is more than just a heat source: it also shows that you care about design and quality in your home.
  • Page 13 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 14 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 15 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 16 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 17 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 18 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 19 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 20 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 21 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 22 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 23 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 24 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 25 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 26 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 27 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models 25cm. Rev 7a June 2015...
  • Page 28 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 29 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 30 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Lighting and fuelling "Top-Down" lighting Start by placing 3-4 pieces wood - approx. 1 ½ - 2 kilogram - in the bottom of the burning chamber. Place approx. 1 kilogram of dry firewood, split into kindling sticks., and a couple of alcohol briquettes or similar (1-2).
  • Page 31 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 32 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 33 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 34 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 35 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Problem solving Smoke spillage around door: - could be due to too low draught in the chimney <12Pa - check if the flue or chimney is blocked - check if a extraction hood is switched on; if it is, switch it off and open a window/door in the proximity of the stove for a short while.
  • Page 36 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 37 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 38 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 39 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 40 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 41 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 42 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 43 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 44 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 45 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 46 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 47 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 48 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 49 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 50 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 51 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 52 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 53 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 54 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 55 Manual for Rais Rina, Rais Viva & Rais Juno including Classic models Rev 7a June 2015...
  • Page 56 U K Distributor. Robeys Ltd. Riverside, Goods Road, Belper, Derbyshire, England. DE56 1UU Tel: 01773 820940 Fax: 01773 820477 E Mail: info@robeys.co.uk www.robeys.co.uk...
