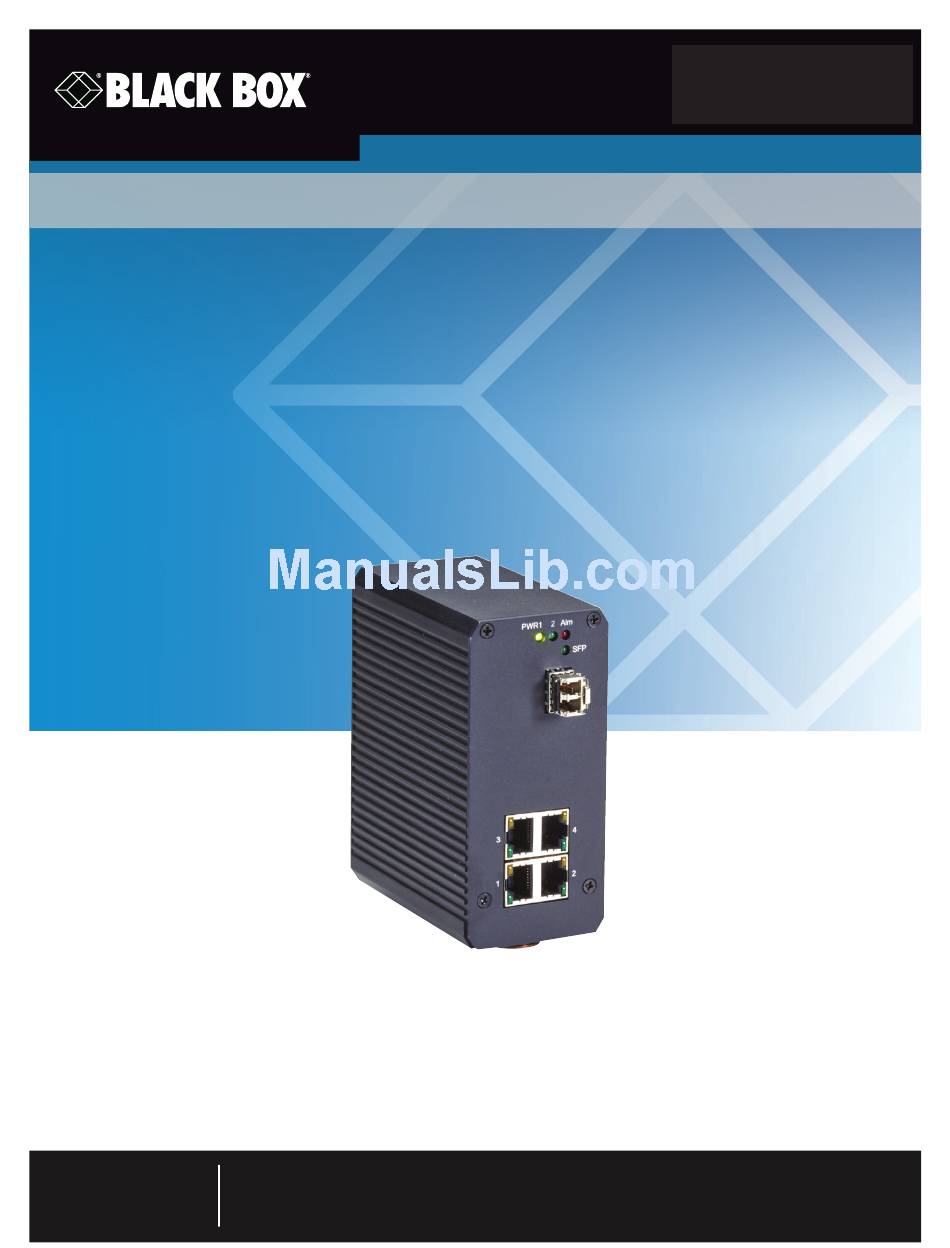

Hardened Ethernet Switch, (4) 10/100/1000 Mbps, (1) GE SFP
Quick Installation Guide
• LGH1000 Series Switches operate in harsh environments.
• Two power inputs connect simultaneously to live DC power sources.
• Alarm alerts you when power fails or a port disconnects.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com

BLACK BOX

LGH1004A
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGH1004A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LGH1004A

Summary of Contents for Black Box LGH1004A

  • Page 1: Black Box

    Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Information Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 Your package includes one Hardened Ethernet Switch. It has (4) 10-/100-/1000-Mbps twisted-pair ports and (1) 1000-Mbps Gigabit SFP slot. This user manual/installation guide can be downloaded from the Black Box Web site, or the FTP site. To download from the Web site: 1.

  • Page 3: Din Rail Mounting

    LGH1004A Hardened Ethernet Switch Quick Installation Guide Installation DIN Rail Mounting The DIN-Rail clip already attached on the rear side of the switch supports an EN 50022 standard DIN Rail as shown in Figure 3-1. Spring DIN rail DIN rail clipper 1.35"...

  • Page 4: Hardware Installation

    LGH1004A Hardened Ethernet Switch Quick Installation Guide Hardware Installation Wiring the DC Power Inputs Before installing the power input, make sure the DC power supply complies with standard power supply certifications. NOTE: Suitable wire gauge is from 12 to 24 AWG.
  • Page 5 LGH1004A Hardened Ethernet Switch Quick Installation Guide Wiring Grounding AC motors, electric welding machines, and power devices generate electromagnetic and disturb communications. To prevent noise, be sure to ground the switch. The following diagram shows how to create a connection.
  • Page 6 LGH1004A Hardened Ethernet Switch Quick Installation Guide Cabling Ethernet Cabling: Ports 1–4 use copper UTP/STP cable. Table 2. Cable types for data transmision. Description 10BASE-T: 2-pair UTP/STP CAT3, 4, 5 cable, EIA/TIA-568, 100-ohm, Max. 328 feet (100 m) 100BASE-TX: 2-pair UTP/STP CAT5 cable, EIA/TIA-568, 100-ohm, Max. 328 feet (100 m) 1000BASE-T: 4-pair UTP/STP CAT5 cable, EIA/TIA-568, 100-ohm, Max.
  • Page 7 NOTES 724-746-5500 | blackbox.com Page 7...
  • Page 8 Disclaimer: Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Network Services may revise this document at any time without notice.
