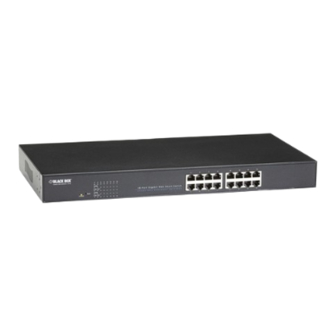

16-Port Web Smart Gigabit Ethernet Switch
This Web Smart switch provides 16
10-/100-/1000-Mbps ports.
Supports Gigabit speed on all ports.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

BLACK BOX

LGB616A
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGB616A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LGB616A

Summary of Contents for Black Box LGB616A

  • Page 1: Black Box

    Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 Radio Interference Regulation of Industry Canada. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada. LGB616A Page 2 724-746-5500 | blackbox.com...
  • Page 3 (incluyendo amplificadores) que producen calor. 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. LGB616A Page 3 724-746-5500 | blackbox.com...
  • Page 4 C: El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o E: El aparato ha sido tirado o su cubierta ha sido dañada. LGB616A Page 4 724-746-5500 | blackbox.com...
  • Page 5 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Internet Explorer is a registered trademark of Microsoft Corporation. UL is a registered trademark of Underwriters’ Laboratories.

  • Page 6: Table Of Contents

    Monitoring: VeriPHY Cable Diagnostics ........24 3.20 Monitoring: Ping Parameters ............24 3.21 Monitoring: Warm Restart ............25 Maintenance ................... 26 Maintenance: Factory Default ............. 26 Maintenance: Software Upload ..........26 Maintenance: Configuration Upload .......... 27 Logout ....................28 LGB616A Page 6 724-746-5500 | blackbox.com...

  • Page 7: Specifications

    Operating Humidity — 10 to 90% relative humidity (non-condensing) Size — 1.73"H x 17.32"W x 8.66 D (4.4 x 45 x 22 cm) Weight — 6.39 lb. (2.9 kg) unit; 6.61 lb. (3 kg) shipping LGB616A Page 7 724-746-5500 | blackbox.com...

  • Page 8: Overview

    • 16 ports autonegotiate speeds of 10, 100, and 1000 Mbps. • 19" rackmountable. • Provides non-blocking and non-head of line blocking full wire-speed forwarding. • Store-and-forward operation support. • Supports 9.6 KB jumbo frames. • Provides 8K MAC addresses. LGB616A Page 8 724-746-5500 | blackbox.com...

  • Page 9: What's Included

    • Smart plug and play. 2.3 What’s Included Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • (1) 16-Port Web Smart Gigabit Ethernet Switch • (1) U.S. power cord •...
  • Page 10 (16) RJ-45 connectors Connect to 10/100/1000 devices. Air vents Maintain proper airflow. Power on/off switch Switches the power to the unit on or off. Links 90–260-VAC, 50-60-Hz, 20-W internal power supply to Power receptacle power outlet LGB616A Page 10 724-746-5500 | blackbox.com...

  • Page 11: Configuration And Monitoring

    Figure 3-1. IP screen. Step 3: Open a Web browser (for example, Internet Explorer …) and go to ® http:// 192.168.2.1. You will see the login screen shown in Figure 3-2. Figure 3-2. Login screen. LGB616A Page 11 724-746-5500 | blackbox.com...

  • Page 12: Configuration: System Configuration

    You can change the user name, the password, and IP address, then click “Apply” to confirm the new change. Next, you must reset the switch by turning it off and turning it on to take the new user name, the password, and IP address. LGB616A Page 12 724-746-5500 | blackbox.com...

  • Page 13: Configuration: Port Configuration

    You can enable or disable jumbo frames by clicking the checkbox. Configure the modes listed below for the port number you select: - Auto speed - Enable/disable port - 10M/100M/1000M - Full/half-duplex - Enable/disable flow control LGB616A Page 13 724-746-5500 | blackbox.com...

  • Page 14: Configuration: Vlan Configuration

    There are 16 VLAN groups. Select and add a group into “VLAN ID” and then click the port number that you want to put into the selected VLAN group. 3.4 Configuration: Aggregation/Trunk Configuration Figure 3-6. Aggregation/Trunk Configuration screen. LGB616A Page 14 724-746-5500 | blackbox.com...

  • Page 15: Configuration: Lacp Port Configuration

    There are eight groups to choose from, and the maximum number of ports for one group is 16. 3.5 Configuration: LACP Port Configuration Figure 3-7. LACP Port Configuration screen. Select the port number for which you want to enable/disable its protocol. LGB616A Page 15 724-746-5500 | blackbox.com...

  • Page 16: Configuration: Rstp Configuration

    Chapter 3: Configuration and Monitoring 3.6 Configuration: RSTP Configuration Figure 3-8. RSTP Configuration screen. Select the port number for which you want to enable/disable its protocol. 3.7 Configuration: 802.1x Configuration Figure 3-9. 802.1x Configuration screen. LGB616A Page 16 724-746-5500 | blackbox.com...

  • Page 17: Configuration: Igmp Configuration

    - Force Unauthorized 3.8 Configuration: IGMP Configuration Figure 3-10. IGMP Configuration screen. You can enable or disable IGMP by clicking the checkbox. Select the port number for which you want to configure the mode. LGB616A Page 17 724-746-5500 | blackbox.com...

  • Page 18: Configuration: Port Mirror Configuration

    Port mirroring is used to mirror the traffic from the source port to the destination port. Select the destination port from Port 1 to Port 16, and then select the source port by clicking the port’s checkbox. LGB616A Page 18 724-746-5500 | blackbox.com...

  • Page 19: Configuration: Qos Configuration

    Figure 3-12. QoS Configuration screen. You can enable or disable QoS by clicking the checkbox. If you enable QoS, you can select the class of service for each port. 3.11 Configuration: Filter Configuration Figure 3-13. Filter Configuration screen. LGB616A Page 19 724-746-5500 | blackbox.com...

  • Page 20: Configuration: Rate Limit Configuration

    Select the port number for which you want to configure the mode to enable/dis- able filtering IP address. 3.12 Configuration: Rate Limit Configuration Figure 3-14. Rate Limit Configuration screen. Select the port number for which you want to configure the mode of the speed. LGB616A Page 20 724-746-5500 | blackbox.com...

  • Page 21: Configuration: Storm Control Configuration

    3.13 Configuration: Storm Control Configuration Figure 3-15. Storm Control Configuration screen. You can set up storm control by configuring the modes. 3.14 Monitoring: Statistics Overview for All Ports Figure 3-16. Statistics Overview for All Ports screen. LGB616A Page 21 724-746-5500 | blackbox.com...

  • Page 22: Montoring: Detailed Statistics

    You can read statistics for all ports. 3.15 Monitoring: Detailed Statistics Figure 3-17. Detailed Statistics screen. For detailed statistics for each port, click the port number. 3.16 Monitoring: LACP Status Figure 3-18. LACP Status screen. LGB616A Page 22 724-746-5500 | blackbox.com...

  • Page 23: Monitoring: Rstp Status

    3.17 Monitoring: RSTP Status Figure 3-19. RSTP Status screen. You can read RSTP status for RSTP ports. 3.18 Monitoring: IGMP Status Figure 3-20. IGMP Status screen. You can read IGMP status for IGMP ports. LGB616A Page 23 724-746-5500 | blackbox.com...

  • Page 24: Monitoring: Veriphy Cable Diagnostics

    Figure 3-21. VeriPHY Cable Diagnostics screen. You can read VeriPHY cable status for all ports which you want to check by clicking the port number and the mode. 3.20 Monitoring: Ping Parameters Figure 3-22. Ping Parameters screen. LGB616A Page 24 724-746-5500 | blackbox.com...

  • Page 25: Monitoring: Warm Restart

    You can set a target IP address by setting the mode that you want. 3.21 Monitoring: Warm Restart Figure 3-23. Warm Restart screen. You can select yes/no for a warm restart, and the new settings will change according to your selection. LGB616A Page 25 724-746-5500 | blackbox.com...

  • Page 26: Maintenance

    Figure 4-1. Factory Default Settings screen. You can select yes/no to perform a Factory Default, and the new settings will change according to your selection. 4.2 Maintenance: Software Upload Figure 4-2. Software Upload screen. LGB616A Page 26 724-746-5500 | blackbox.com...

  • Page 27: Maintenance: Configuration Upload

    Chapter 4: Maintenance Follow the instructions on the screen to upload the new software. 4.3 Maintenance: Configuration Upload Figure 4-3. Configuration Upload screen. Follow the instructions on the screen to upload and download the configuration. LGB616A Page 27 724-746-5500 | blackbox.com...

  • Page 28: Logout

    Step 3: The switch will reboot for 20 seconds, and the configuration of the switch will go back to the default setting. Figure 5-1. Enter Password screen. Key in the password to pass the authentication; the default password is “admin.” IP: 192.168.2.1 Password: admin LGB616A Page 28 724-746-5500 | blackbox.com...
  • Page 29 NOTES LGB616A Page 29 724-746-5500 | blackbox.com...
  • Page 30 NOTES LGB616A Page 30 724-746-5500 | blackbox.com...
  • Page 31 NOTES LGB616A Page 31 724-746-5500 | blackbox.com...
  • Page 32 724-746-5500 or blackbox.com. About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
