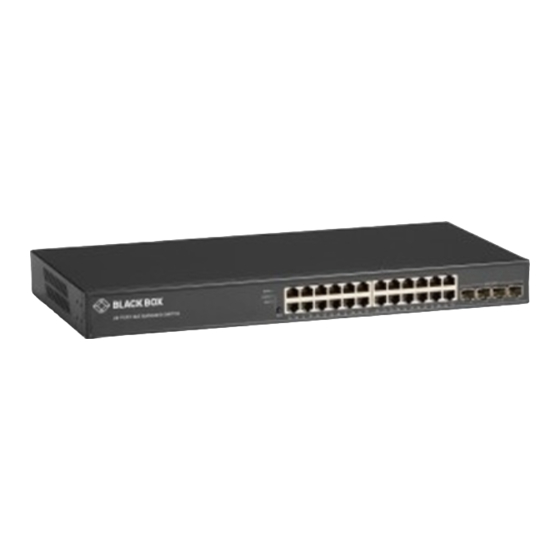

Page 1 WEB GUI USER MANUAL LGB5028A-R2, LGB5052A-R3 MANAGED SWITCHES 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM System System Link/Act Link/Act SFP/SFP+ SFP/SFP+ Speed Speed 28-PORT GbE MANAGED SWITCH 28-PORT GbE MANAGED SWITCH Mode Mode...
Page 2: Table Of Contents
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 ABOUT THIS MANUAL ..................................6 RELATED PUBLICATIONS ................................. 7 REVISION HISTORY ..................................7 INTRODUCTION ....................................8 Overview ..........................................8 Manual Structure ......................................8 1. OPERATION OF WEB-BASED MANAGEMENT ..........................9 Initial Configuration ......................................9 2.
Page 3: Table Of Contents Live
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 2.9 IPMC Profile ......................................89 2.9.1 Profile Table ........................................89 2.9.2 Address Entry ........................................92 2.10 MVR ........................................93 2.11 IPMC ........................................95 2.11.1 IGMP Snooping .......................................95 2.11.2 MLD Snooping .........................................99 2.12 LLDP ........................................103 2.12.1 LLDP ..........................................103 2.12.2 LLDP-MED ........................................105...
Page 4 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 3. MONITOR ....................................151 3.1 System ........................................151 3.1.1 Information ........................................151 3.1.2 IP Status ...........................................152 3.1.3 Log .............................................153 3.1.4 Detailed Log ........................................155 3.1.5 Overview ...........................................156 3.2 Green Ethernet ......................................157 Port Power Savings .........................................157 3.3 Ports ........................................158 3.3.1 Traffic Overview ......................................158...
Page 5 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TABLE OF CONTENTS TECHNICAL SUPPORT 1.877.877.2269 3.11 LLDP ........................................202 3.11.1 Neighbor ........................................202 3.11.2 LLDP-MED Neighbor ....................................203 3.11.3 EEE ..........................................206 3.11.4 Port Statistics ....................................... 207 3.12 MAC Table ......................................209 3.13 VLANs ........................................210 3.13.1 Membership ........................................210 3.13.2 Port ..........................................211...
Page 6: About This Manual
This GUI user guide gives specific information on how to operate and use the management functions of the LGB5028A-R2 or LGB5052A-R3 via HTTP/HTTPs web browser. The Manual is intended for use by network administrators who are responsible for operating and maintaining network equipment;...
Page 7: Related Publications
To download the guides from blackbox.com: 1. Go to www.blackbox.com 2. Enter the part number in the search box (for example, LGB5028A-R2 or LGB5052A-R3). 3. Click on the product in the “Products” page. 4. Click on the “Support” tab on the product page and select the document you wish to download.
Page 8: Introduction
This User Guide explains how to install and connect your network system and configure and monitor the LGB5028A-R2 or LGB5052A-R3 through the web via its serial interface and Ethernet ports. Detailed explanations of hardware and software functions are shown as well as examples of web-based interface operation.
Page 9: Operation Of Web-Based Management
1024 x 768. The switch supports a neutral web browser interface. NOTE: The LGB5028A-R2 or LGB5052A-R3 has the function dhcp enabled, so If you do not have a DHCP server to provide ip addresses to the switch, use the Switch default ip 192.168.1.1 FIGURE 1-1.
Page 10: Configuration
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 This chapter describes the basic configuration tasks, including the System Information and any management functions of the Switch (e.g. Time, Account, IP, Syslog and NTP.) 2.1 SYSTEM You can identify the system by configuring the contact information, name, and location of the switch.
Page 11 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.1.2 IP The IPv4 address for the switch can be obtained via DHCP Server for VLAN 1. To manually configure an address, you need to change the switch’s default settings to values that are compatible with your network.
Page 12 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - From this DHCP interface: Specify from which DHCP-enabled interface a provided DNS server should be preferred. Š DNS Proxy: When DNS proxy is enabled, the system will relay DNS requests to the currently configured DNS server and reply as a ...
Page 13: Ntp
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Add Interface: Click to add a new IP interface. A maximum of 8 interfaces is supported. Š Add Route: Click to add a new IP route. A maximum of 32 routes is supported. ...
Page 14: Time
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Server address via DHCP: Specify a list of IP addresses indicating NTP servers available to the client. Š Server 1 to 5: Provide the NTP IPv4 or IPv6 address of this switch. IPv6 address is in 128-bit records represented as eight fields ...
Page 15: Log
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Time Zone Configuration Š Time Zone: Lists various Time Zones worldwide. Select the appropriate Time Zone from the drop down and click Apply to set. ...
Page 16: Green Ethernet
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 4. Click Apply. FIGURE 2-5. SYSTEM LOG CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Server Mode: Indicate the server mode operation. When the mode operation is enabled, the syslog message will send out to syslog ...
Page 17 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 WEB INTERFACE To configure a Port Power Saving Configuration in the web interface: 1. Click Configuration, Green Ethernet and Port Power Savings. 2. Enable or disable the ActiPHY, PerfectReach, EEE and EEE Urgent Queues. 3.
Page 18: Ports Configuration
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.3 PORTS CONFIGURATION This section describes how to configure the Port detail parameters of the switch. You can use Port configure to enable or disable the Port of the switch and monitor the port’ss content or status.
Page 19: Ports Description
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - 2.5 Gbps FDX: Forces the Serdes port in 2.5 Gbps full duplex mode. - 10 Gbps FDX: Default Configuration NOTE: Change the port configuration to 1GBps FDX when using the 1Gbps SFP module. NOTE: There is no standardized way to do SFP auto detect, so here it is done by reading the SFP ROM.
Page 20: Dhcp
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-8. PORT DESCRIPTION SCREEN PARAMETER DESCRIPTION Š Port: This is the logical port number for this row. Š Description: Enter up to 47 characters as a descriptive name that identifies this port. ...
Page 21 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-9. DHCP SERVER MODE CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Mode: Configure the operation mode per system. Possible modes are: - Enable: Enable DHCP server per system. - Disable: Disable DHCP server pre system.
Page 22 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Delete: Check to delete the entry. It will be deleted during the next save. Š Add VLAN Range: Click to add a new VLAN range. ...
Page 23 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. POOL This page manages DHCP pools. According to the DHCP pool, the DHCP server will allocate IP addresses and deliver configuration parameters to the DHCP client.
Page 24 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Network: the pool defines a pool of IP addresses to service more than one DHCP client. Host: the pool services for a specific DHCP client identified by client identifier or hardware address. If “-”...
Page 25 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Snooping Mode: Indicates the DHCP snooping mode operation. Possible modes are: - Enabled: Enable DHCP snooping mode operation. When DHCP snooping mode operation is enabled, the DHCP request messages will be forwarded to trusted ports and only allow reply packets from trusted ports.
Page 26 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Relay Mode: Indicates the DHCP relay mode operation. Possible modes are: - Enabled: Enable DHCP relay mode operation. When DHCP relay mode operation is enabled, the agent forwards and transfers DHCP messages between the clients and the server when they are not in the same subnet domain.
Page 27 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 3. Specify the User Name parameter. 4. Click Apply. FIGURE 2-14. USERS CONFIGURATION SCREEN PARAMETER DESCRIPTION Š User Name: The name identifying the user. This is also a link to Add/Edit User. ...
Page 28 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PRIVILEGE LEVEL This page provides an overview of the privilege levels. The switch provides user set Account, Aggregation, Diagnostics, EEE, GARP, GVRP, IP, IPMC Snooping, LACP, LLDP, LLDP MED, MAC Table, MRP, MVR, MVRP, Maintenance, Mirroring, Ports, Private VLANs, QoS, SMTP, SNMP, Security Spanning Tree System, Trap Event, VCL, VLANs, and Voice VLAN Privilege Levels from 1 to 15.
Page 29 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Privilege Levels: Every group has an authorization Privilege level for the following sub groups: configuration read-only, configuration/ execute read-write, status/statistics read-only, and status/statistics read-write (e.g. for clearing of statistics). User Privilege should be same or greater than the authorization Privilege level to have the access to that group.
Page 30 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Service Port: The TCP port for each client service. The valid port numbers range is 1– 65534. Buttons Š Apply: Click to save changes. ...
Page 31 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š HTTP/HTTPS: Indicates that the host can access the switch from the HTTP/HTTPS interface if the host IP address matches the IP address range provided in the entry. Š...
Page 32 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-18. SNMP SYSTEM CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Mode: Indicates the SNMP mode operation. Possible modes are: - Enabled: Enable SNMP mode operation. - Disabled: Disable SNMP mode operation.
Page 33 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 TRAP Configure SNMP trap on this page. WEB INTERFACE To configure the configure SNMP Trap Configuration in the web interface: 1. Click Configuration, Security, Switch, SNMP and Trap. 2.
Page 34 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Global Settings: Configure SNMP trap on this page. Š Mode: Indicates the trap mode operation. Possible modes are: - Enabled: Enable SNMP trap mode operation. - Disabled: Disable SNMP trap mode operation.
Page 35 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Trap Destination Address: Indicates the SNMP trap destination address. It allows a valid IP address in dotted decimal notation (‘x.y.z.w’). And it also allows a valid hostname. A valid hostname is a string drawn from the alphabet (A-Za-z), digits (0-9), dot (.), dash (-). Spaces are not allowed, the first character must be an alpha character, and the first and last characters must not be a dot or a dash.
Page 36 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-20. SNMPV3 COMMUNITY CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Community: Indicates the community access string to permit access to an SNMPv3 agent. The allowed string length is 1 to 32, and ...
Page 37 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-21. SNMPV3 USER CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Engine ID: An octet string identifying the engine ID that this entry should belong to. The string must contain an even number (in ...
Page 38 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Privacy Password: A string identifying the privacy password phrase. The allowed string length is 8 to 32, and the allowed content is ASCII characters from 33 to 126. Buttons Š...
Page 39 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Security Model: Indicates the security model that this entry should belong to. Possible security models are: - v1: Reserved for SNMPv1. - v2c: Reserved for SNMPv2c.
Page 40 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š View Name: A string identifying the view name that this entry should belong to. The allowed string length is 1 to 32, and the allowed ...
Page 41 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Group Name: A string identifying the group name that this entry should belong to. The allowed string length is 1 to 32, and the ...
Page 42 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-25. TRAP EVENT SEVERITY CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Group Name: The name identifying the severity group. Š Severity Level: Every group has an severity level. The following level types are supported: ...
Page 43 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 RMON An RMON implementation typically operates in a client/server model. Monitoring devices contain RMON software agents that collect information and analyze packets. These probes act as servers and the Network Management applications that communicate with them act as clients.
Page 44 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 HISTORY Configure RMON History table on this page. The entry index key is ID. WEB INTERFACE To configure tthe RMON History in the web interface: 1.
Page 45 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 ALARM Configure RMON Alarm table on this page. The entry index key is ID. WEB INTERFACE To configure tthe RMON History in the web interface: 1.
Page 46 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Sample Type: The method of sampling the selected variable and calculating the value to be compared against the thresholds, possible sample types are: - Absolute: Get the sample directly.
Page 47 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-29. RMON EVENT CONFIGURATION SCREEN PARAMETER DESCRIPTION These parameters are displayed on the RMON Event Configuration page: Š ID: Indicates the index of the entry. The range is from 1 to 65535. ...
Page 48 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.5.2 NETWORK LIMIT CONTROL This section shows you how to configure the Port Security settings of the Switch. You can use the Port Security feature to restrict input to an interface by limiting and identifying MAC addresses.
Page 49 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 To understand why aging may be desired, consider the following scenario: Suppose an end-host is connected to a 3rd party switch or hub, which in turn is connected to a port on this switch on which Limit Control is enabled. The end-host will be allowed to forward if the limit is not exceeded.
Page 50 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Refresh: Click to refresh the Port Security information manually. Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. ...
Page 51 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-32. NETWORK ACCESS SERVER CONFIGURATION SCREEN, PART 2 PARAMETER DESCRIPTION System Configuration Š Mode: Indicates if NAS is globally enabled or disabled on the switch. If globally disabled, all ports are allowed forwarding of frames. ...
Page 52 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 For ports in MAC-based Auth. mode, reauthentication doesn’t cause direct communication between the switch and the client, so this will not detect whether the client is still attached or not, and the only way to free any resources is to age the entry. Š...
Page 53 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Port Configuration The table has one row for each port on the selected switch and a number of columns, which are: Š Port: The port number for which the configuration below applies. ...
Page 54 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 In Multi 802.1X, it is not possible to use the multicast BPDU MAC address as a destination MAC address for EAPOL frames sent from the switch towards the supplicant, since that would cause all supplicants attached to the port to reply to requests sent from the switch. Instead, the switch uses the supplicant’s MAC address, which is obtained from the first EAPOL Start or EAPOL Response Identity frame sent by the supplicant.
Page 55 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 This option is only available for single-client modes, i.e. - Port-based 802.1X - Single 802.1X For trouble-shooting VLAN assignments, use the “Monitor VLANs VLAN Membership and VLAN Port” pages. These pages show which modules have (temporarily) overridden the current Port VLAN configuration.
Page 56 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Unauthorized: The port is in Force Unauthorized or a single-supplicant mode and the supplicant is not successfully authorized by the RADIUS server. - X Auth/Y Unauth: The port is in a multi-supplicant mode. Currently X clients are authorized and Y are unauthorized. Š...
Page 57 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-33. ACL PORTS CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Port: The logical port for the settings contained in the same row. Š Policy ID: Select the policy to apply to this port. The allowed values are 1 through 8. The default value is 1. ...
Page 58 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Reset: Click to undo any changes made locally and revert to previously saved values. RATE LIMITERS This section describes how to configure the switch’s ACL Rate Limiter parameters. The Rate Limiter Level from 1 to 16 allows user to set rate limiter value and units in pps.
Page 59 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 ACCESS CONTROL LIST This section describes how to configure Access Control List rule. An Access Control List (ACL) is a sequential list of permit or deny conditions that apply to IP addresses, MAC addresses, or other more specific criteria.
Page 60 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Ingress Port: Indicates the ingress port of the ACE. Possible values are: - Any: The ACE will match any ingress port. - Policy: The ACE will match ingress ports with a specific policy.
Page 61 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 ACE Configuration An ACE consists of several parameters. These parameters vary according to the frame type that you select. First, select the ingress port for the ACE, and then select the frame type. Different parameter options are displayed depending on the frame type selected. A frame that hits this ACE matches the configuration that is defined here.
Page 62 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Disabled: Frames matching the ACE are not logged. NOTE: The logging feature only works when the packet length is less than 1518 (without VLAN tags) and the System Log memory size and logging rate is limited.
Page 63 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 ARP Parameters The ARP parameters can be configured when Frame Type “ARP” is selected. Š ARP/RARP: Specify the available ARP/RARP opcode (OP) flag for this ACE. ...
Page 64 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Any: Any value is allowed (“don’t-care”). Š Ethernet: Specify whether frames can hit the action according to their ARP/RARP hardware address space (HRD) settings. 0: ARP/RARP frames where the HLD is not equal to Ethernet (1).
Page 65 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š SIP Address: When “Host” or “Network” is selected for the source IP filter, you can enter a specific SIP address in dotted decimal notation.
Page 66 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 ICMP Parameters Š ICMP Type Filter: Specify the ICMP filter for this ACE. - Any: No ICMP filter is specified (ICMP filter status is “don’t-care”). - Specific: If you want to filter a specific ICMP filter with this ACE, you can enter a specific ICMP value.
Page 67 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Any: Any value is allowed (“don’t-care”). Š TCP RST: Specify the TCP “Reset the connection” (RST) value for this ACE. 0: TCP frames where the RST field is set must not be able to match this entry. 1: TCP frames where the RST field is set must be able to match this entry.
Page 68 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 IP SOURCE GUARD This section describes how to configure the IP Source Guard detail parameters of the switch. You can use the IP Source Guard configure to enable or disable the Port of the switch.
Page 69 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 STATIC TABLE This section describes how to configure the Static IP Source Guard Table parameters of the switch. You could use the Static IP Source Guard Table configure to manage the entries. WEB INTERFACE To configure a Static IP Source Guard Table Configuration in the web interface: 1.
Page 70 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 ARP INSPECTION This section describes how to configure the ARP Inspection parameters of the switch. You can use the ARP Inspection configure to manage the ARP table. PORT CONFIGURATION This section describes how to configure ARP Inspection setting including: Š...
Page 71 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Disabled: Disable check VLAN operation. Only the Global Mode and Port Mode on a given port are enabled, and the setting of “Check VLAN” is disabled, the log type of ARP Inspection will refer to the port setting.
Page 72 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-39. VLAN MODE CONFIGURATION SCREEN PARAMETER DESCRIPTION Š VLAN Mode Configuration: Specify ARP Inspection as enabled on VLANs. First, you have to enable the port setting on Port mode ...
Page 73 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 STATIC TABLE This section describes how to configure the Static ARP Inspection Table parameters of the switch. You could use the Static ARP Inspection Table configure to manage the ARP entries. WEB INTERFACE To configure a Static ARP Inspection Table Configuration in the web interface: 1.
Page 74 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 DYNAMIC TABLE Entries in the Dynamic ARP Inspection Table are shown on this page. The Dynamic ARP Inspection Table contains up to 1024 entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address. Navigating the ARP Inspection Table Each page shows up to 99 entries from the Dynamic ARP Inspection table, default is 20, selected through the “entries per page”...
Page 75 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. Š Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. ...
Page 76 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-42. RADIUS SERVER CONFIGURATION SCREEN PARAMETER DESCRIPTION Global Configuration These settings are common for all of the RADIUS servers. Š Timeout: Timeout is the number of seconds, in the range 1 to 1000, to wait for a reply from a RADIUS server before retransmitting the ...
Page 77 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Server Configuration The table has one row for each RADIUS server and a number of columns, which are: Š Hostname: The IP address or hostname of the RADIUS server. ...
Page 78 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Global Configuration These settings are common for all of the TACACS+ servers. Š Timeout: Timeout is the number of seconds, in the range 1 to 1000, to wait for a reply from a TACACS+ server before it is ...
Page 79 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-44. AGGREGATION MODE CONFIGURATION SCREEN PARAMETER DESCRIPTION Hash Code Contributors Š Source MAC Address: The Source MAC address can be used to calculate the destination port for the frame. Check to enable the use ...
Page 80 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.6.2 LACP This page allows the user to inspect the current LACP port configurations, and possibly change them as well. WEB INTERFACE To configure the LACP Port Configuration in the web interface: 1.
Page 81 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.7 LOOP PROTECTION This page allows the user to inspect the current Loop Protection configurations, and possibly change them as well WEB INTERFACE To configure the Loop Protection parameters in the web interface: 1.
Page 82 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. 2.8 SPANNING TREE The Spanning Tree Protocol (STP) can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers.
Page 83 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 5. If you want to cancel the setting, then you need to click the Reset button. It will revert to previously saved values. FIGURE 2-48. STP BRIDGE CONFIGURATION SCREEN PARAMETER DESCRIPTION Basic Settings Š...
Page 84 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. 2.8.2 MSTI MAPPING When you implement a Spanning Tree protocol on the switch, the CIST is not available for explicit mapping, as it will receive the VLANs not explicitly mapped.
Page 85 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Configuration Identification Š Configuration Name: The name identifying the VLAN to MSTI mapping. Bridges must share the name and revision (see below), as well ...
Page 86 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-50. MSTI PRIORITY CONFIGURATION SCREEN PARAMETER DESCRIPTION Š MSTI: The bridge instance. The CIST is the default instance, which is always active. Š Priority: Controls the bridge priority. Lower numeric values have better priority. The bridge priority plus the MSTI instance number, ...
Page 87 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-51. STP CIST PORT CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Port: The switch port number of the logical STP port. Š STP Enabled: Controls whether STP is enabled on this switch port. This field will be read only if the Voice VLAN feature is enabled. The ...
Page 88 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Point to Point: Controls whether the port connects to a point-to-point LAN rather than to a shared medium. This can be automatically determined, or forced either true or false. Transition to the forwarding state is faster for point-to-point LANs than for shared media. Buttons Š...
Page 89 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The switch port number of the corresponding STP CIST (and MSTI) port. Š Path Cost: Controls the path cost incurred by the port. The Auto setting will set the path cost as appropriate by the physical link ...
Page 90 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-53. IPMC PROFILE CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Global Profile Mode: Enable/Disable the Global IPMC Profile. The system starts to do filtering based on profile settings only when the ...
Page 91 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Rule: When the profile is created, click the edit button to enter the rule setting page of the designated profile. Summary about the designated profile will be shown by clicking the view button.
Page 92 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.9.2 ADDRESS ENTRY This page provides address range settings used in IPMC profile. The address entry is used to specify the address range that will be associated with IPMC Profile. You can create up to 128 address entries in the system.
Page 93 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.10 MVR The MVR feature enables multicast traffic forwarding on the Multicast VLANs. In a multicast television application, a PC or a network television or a set-top box can receive the multicast stream. Multiple set-top boxes or PCs can be connected to one subscriber port, which is a switch port configured as an MVR receiver port.
Page 94 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š MVR Name: MVR Name is an optional attribute to indicate the name of the specific MVR VLAN. Maximum length of the MVR VLAN Name string is 32.
Page 95 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.11 IPMC 2.11.1 IGMP SNOOPING This function is used to establish the multicast groups to forward the multicast packet to the member ports. This avoids wasting the bandwidth while IP multicast packets are running over the network.
Page 96 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Snooping Enabled: Enable Global IGMP Snooping. Š Unregistered IPMCv4 Flooding Enabled: Enable unregistered IPMCv4 traffic flooding. The flooding control takes effect only when ...
Page 97 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-57. IGMP SNOOPING VLAN CONFIGURATION SCREEN PARAMETER DESCRIPTION Š VLAN ID: Displays the VLAN ID of the entry. Š IGMP Snooping Enabled: Enable the per-VLAN IGMP Snooping. Only up to 32 VLANs can be selected. ...
Page 98 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š URI: Unsolicited Report Interval. The Unsolicited Report Interval is the time between repetitions of a host’s initial report of membership in a group. The allowed range is 0 to 31744 seconds, default unsolicited report interval is 1 second. Buttons Š...
Page 99 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.11.2 MLD SNOOPING A network node that acts as a source of IPv6 multicast traffic is only an indirect participant in MLD snooping—it just provides multicast traffic, and MLD doesn’t interact with it.
Page 100 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-59. MLD SNOOPING CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Snooping Enabled: Enable the Global MLD Snooping. Š Unregistered IPMCv6 Flooding enabled: Enable unregistered IPMCv6 traffic flooding. The flooding control takes effect only when MLD ...
Page 101 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 VLAN CONFIGURATION When MLD snooping is enabled on a VLAN, the switch acts to minimize unnecessary multicast traffic. If the switch receives multicast traffic destined for a given multicast address, it forwards that traffic only to ports on the VLAN that have MLD hosts for that address.
Page 102 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š LLQI: Last Listener Query Interval. The Last Listener Query Interval is the Maximum Response Delay used to calculate the Maximum Response Code inserted into Multicast Address Specific Queries sent in response to Version 1 Multicast Listener Done messages. It is also the Maximum Response Delay used to calculate the Maximum Response Code inserted into Multicast Address and Source Specific Query messages.
Page 103 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The logical port for the settings. Š Filtering Profile: Select the IPMC Profile as the filtering condition for the specific port. A summary about the designated profile will ...
Page 104 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-62. LLDP CONFIGURATION SCREEN PARAMETER DESCRIPTION LLDP Parameters Š Tx Interval: The switch periodically transmits LLDP frames to its neighbors for having the network discovery information up-to-date. ...
Page 105 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Only CDP TLVs that can be mapped to a corresponding field in the LLDP neighbors’ table are decoded. All other TLVs are discarded (Unrecognized CDP TLVs and discarded CDP frames are not shown in the LLDP statistics.). CDP TLVs are mapped onto LLDP neighbors’...
Page 106 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 5. Add new policy. 6. Click Apply; will show following Policy Port Configuration. 7. Select Policy ID for each port. 8. Click the Apply button to save the setting. 9.
Page 107 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 With this in mind LLDP-MED defines an LLDP-MED Fast Start interaction between the protocol and the application layers on top of the protocol, to achieve these related properties. Initially, a Network Connectivity Device will only transmit LLDP TLVs in an LLDPDU. Only after an LLDP-MED Endpoint Device is detected, will an LLDP-MED capable Network Connectivity Device start to advertise LLDP-MED TLVs in outgoing LLDPDUs on the associated port.
Page 108 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Street suffix: Street suffix - Example: Ave, Platz. Š House no.: House number - Example: 21. Š House no. suffix: House number suffix - Example: A, 1/2. ...
Page 109 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 A large network may support multiple VoIP policies across the entire organization, and different policies per application type. LLDP-MED allows multiple policies to be advertised per port, each corresponding to a different application type. Different ports on the same Network Connectivity Device may advertise different sets of policies, based on the authenticated user identity or port configuration.
Page 110 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Port Policies Configuration Every port may advertise a unique set of network policies or different attributes for the same network policies, based on the authenticated user identity or port configuration. Š...
Page 111 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-64. MAC ADDRESS TABLE CONFIGURATION SCREEN PARAMETER DESCRIPTION Aging Configuration By default, dynamic entries are removed from the MAC table after 300 seconds. This removal is also called aging. Configure aging time by entering a value here in seconds;...
Page 112 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. Š Delete: Check to delete the entry. It will be deleted during the next save. ...
Page 113 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 The following example will create VLANs 1, 10, 11, 12, 13, 200, and 300: 1,10-13,200,300. Spaces are allowed in between the delimiters. Š Ethertype for Custom S-ports: This field specifies the ethertype/TPID (specified in hexadecimal) used for Custom S-ports. The setting ...
Page 114 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 S-Port: On ingress, frames with a VLAN tag with TPID = 0x8100 or 0x88A8 get classified to the VLAN ID embedded in the tag. If a frame is untagged or priority tagged, the frame gets classified to the Port VLAN.
Page 115 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.15 PRIVATE VLANS 2.15.1 MEMBERSHIP The Private VLAN membership configurations for the switch can be monitored and modified here. Private VLANs can be added or deleted here.
Page 116 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Adding a New Private VLAN: Click Add New Private VLAN to add a new private VLAN ID. An empty row is added to the table, and the ...
Page 117 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.16 VCL 2.16.1 MAC-BASED VLAN The MAC-based VLAN entries can be configured here. This page allows for adding and deleting MAC-based VLAN entries and assigning the entries to different ports. This page shows only static entries. WEB INTERFACE To configure MAC-based VLAN Membership Configuration in the web interface: 1.
Page 118 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Š Refresh: Refreshes the displayed table starting from the “VLAN” input fields. ...
Page 119 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Frame Type: Frame Type can have one of the following values: 1. Ethernet 2. LLC 3. SNAP NOTE: On changing the Frame type field, a valid value of the following text field will vary depending on the new frame type you selected.
Page 120 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 GROUP TO VLAN This page allows you to map already configured Group Name to a VLAN for the switch. WEB INTERFACE To configure Group Name to VLAN mapping Table in the web interface: 1.
Page 121 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.16.3 IP SUBNET-BASED VLAN The IP subnet-based VLAN entries can be configured here. This page allows for adding, updating and deleting IP subnet-based VLAN entries and assigning the entries to different ports. This page shows only static entries. WEB INTERFACE To configure IP Subnet-based VLAN Membership Configuration in the web interface: 1.
Page 122 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Š Refresh: Refreshes the displayed table starting from the “VLAN” input fields. ...
Page 123 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Mode: Indicates the Voice VLAN mode operation. You must disable MSTP feature before you enable Voice VLAN. This will avoid an ingress filtering conflict.
Page 124 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.17.2 OUI Configure the VOICE VLAN OUI table on this page. The maximum number of entries is 16. Modifying the OUI table will restart auto detection of the OUI process.
Page 125 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.18 QOS The switch supports four QoS queues per port with strict or weighted fair queuing scheduling. It supports QoS Control Lists (QCL) for advance programmable QoS classification, based on IEEE 802.1p, Ethertype, VID, IPv4/IPv6 DSCP and UDP/TCP ports and ranges.
Page 126 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The port number for which the configuration below applies. Š CoS: Controls the default class of service. All frames are classified to a CoS. There is a one to one mapping between CoS, queue and priority. A CoS of 0 (zero) has the lowest priority.
Page 127 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-75. QOS INGRESS PORT POLICERS SCREEN PARAMETER DESCRIPTION Š Port: The port number for which the configuration below applies. Š Enabled: Controls whether the policer is enabled on this switch port. ...
Page 128 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-76. QOS EGRESS PORT POLICERS SCREEN 1.877.877.2269 BLACKBOX.COM...
Page 129 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The logical port for the settings contained in the same row. Click on the port number to configure the schedulers. Š...
Page 130 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-77. QOS EGRESS PORT SHAPERS SCREEN 1.877.877.2269 BLACKBOX.COM...
Page 131 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The logical port for the settings contained in the same row. Click on the port number to configure the schedulers. Š...
Page 132 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-78. PORT TAG REMARKING SCREEN 1.877.877.2269 BLACKBOX.COM...
Page 133 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The logical port for the settings contained in the same row. Click on the port number to configure tag remarking. Š...
Page 134 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 2-79. QOS PORT DSCP CONFIGURATION SCREEN PARAMETER DESCRIPTION Š Port: The Port column shows the list of ports for which you can configure dscp ingress and egress settings. ...
Page 135 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.18.7 DSCP-BASED QOS This section explains how to configure the DSCP-Based QoS mode. This page allows you to configure the basic QoS DSCP based QoS Ingress Classification settings for all switches. WEB INTERFACE To configure the DSCP-Based QoS Ingress Classification parameters in the web interface: 1.
Page 136 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.18.8 DSCP TRANSLATION This section describes the switch allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in Ingress or Egress. WEB INTERFACE To configure the DSCP Translation parameters in the web interface: 1.
Page 137 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.18.9 DSCP CLASSIFICATION This section describes how to configure and map a DSCP value to a QoS Class and DPL value. The settings relate to the currently selected stack unit, as reflected by the page header.
Page 138 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.18.10 QOS CONTROL LIST This section shows the QoS Control List (QCL), which is made up of the QCEs. Each row describes a QCE that is defined. The maximum number of QCEs is 256 on each switch.
Page 139 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Unicast: Match unicast DMAC. - Multicast: Match multicast DMAC. - Broadcast: Match broadcast DMAC. - <MAC>: Match specific DMAC. The default value is Any. Š...
Page 140 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 - Tag: Values of Tag field can be Untagged, Tagged or Any. - VID: Valid values of VLAN ID can be any value in the range 1-4095 or Any; the user can enter either a specific value or a range of VIDs. - PCP: Valid values are specific (0, 1, 2, 3, 4, 5, 6, 7) or range (0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or Any.
Page 141 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. Š Cancel: Return to the previous page without saving the configuration change. ...
Page 142 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.19 MIRRORING To debug network problems, selected traffic can be copied, or mirrored, on a mirror port where a frame analyzer can be attached to analyze the frame flow.
Page 143 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 NOTE: For a given port, a frame is only transmitted once. It is therefore not possible to mirror Tx frames on the mirror port. Because of this, the mode for the selected mirror port is limited to Disabled or Rx only. Buttons Š...
Page 144 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Apply: Click to save changes. Š Reset: Click to undo any changes made locally and revert to previously saved values. 2.21 GVRP The Generic Attribute Registration Protocol (GARP) provides a generic framework whereby devices in a bridged LAN, e.g.
Page 145 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Enable GVRP globally The GVRP feature is enabled by setting the check mark in the checkbox named Enable GVRP. GVRP protocol timers Š Join-time is a value in the range 1-20 in the units of centi seconds, i.e. in units of one hundredth of a second. The default is 20. ...
Page 146 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Port: The Port column shows the list of ports. Š Mode: This configuration is to enable/disable GVRP Mode on particular port locally. ...
Page 147 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Agent Configuration Š IP Address: The IP address used as Agent IP address in sFlow datagrams. It serves as a unique key that will identify this agent over ...
Page 148 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 2.23 SWITCH2GO 2.23.1 SWITCH2GO SETTING Configure the Switch2go management setting. WEB INTERFACE To configure Switch2go setting in the web interface: 1. Click Configuration, Switch2go and and Switch2go setting. 2.
Page 149 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 User Mobile Device Link List Display and manage the registered mobile devices. Š Mobile 1–6: Information about the mobile devices which registered with this switch. ...
Page 150 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: CONFIGURATION TECHNICAL SUPPORT 1.877.877.2269 Š iPush Event Severity Configuration: Click to link Trap Event Severity Configuration. 2.24 SMTP This function is used to set an Alarm trap so the SMTP server can send you an alarm mail. WEB INTERFACE To configure the SMTP Configuration in the web interface: 1.
Page 151 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 This chapter describes all of the basic network statistics, including the Ports, Layer 2 network protocol (e.g. NAS, ACL, DHCP, AAA and RMON etc.) and any settings of the Switch. 3.1 SYSTEM After you log in, the switch shows you the system information.
Page 152 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š System Date: The current (GMT) system time and date. The system time is obtained through the Timing server running on the switch, if any. Š...
Page 153 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION IP Interfaces Š Interface: Show the name of the interface. Š Type: Show the address type of the entry. This may be LINK or IPv4. ...
Page 154 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-3. SYSTEM LOG INFORMATION SCREEN PARAMETER DESCRIPTIONS Š ID: The identification of the system log entry. Š Level: The level of the system log entry. ...
Page 155 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 : Updates the system log entries, ending at the last available entry ID. 3.1.4 DETAILED LOG The switch system detailed log information is provided here. WEB INTERFACE To display the detailed log configuration in the web interface: 1.
Page 156 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.1.5 OVERVIEW The switch system overview is provided here. WEB INTERFACE To display the switch system overview in the web interface: 1. Click Monitor, System and Detailed Log. 2.
Page 157 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.2 GREEN ETHERNET PORT POWER SAVINGS This page provides the current status for EEE. WEB INTERFACE To display the switch system overview in the web interface: 1.
Page 158 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.3 PORTS This section describes how to configure the Port detail parameters of the switch. You can use the Port configure to enable or disable the port and monitor the port’s content or status. 3.3.1 TRAFFIC OVERVIEW This page provides an overview of general traffic statistics for all switch ports.
Page 159 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.3.2 QOS STATISTICS This page provides statistics for the different queues for all switch ports. WEB INTERFACE To display the Queuing Counters in the web interface: 1.
Page 160 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.3.3 QCL STATUS This section explains how to configure and show the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific QCE is not applied to the hardware due to hardware limitations.
Page 161 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Š Refresh: Click to refresh the page. ...
Page 162 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-10. DETAILED PORT STATISTICS SCREEN PARAMETER DESCRIPTION Receive Total and Transmit Total Š Rx and Tx Packets: The number of received and transmitted (good and bad) packets. ...
Page 163 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Rx and Tx Pause: A count of the MAC Control frames received or transmitted on this port that have an opcode indicating a PAUSE ...
Page 164 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-11. SFP DETAIL INFORMATION SCREEN PARAMETER DESCRIPTION Š Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so on. Š...
Page 165 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.4 DHCP 3.4.1 SERVER DHCP Server is used to allocate network addresses and deliver configuration parameters to dynamically configured hosts called DHCP client. STATISTICS This page displays the database counters and the number of DHCP messages sent and received by a DHCP server. WEB INTERFACE To display the DHCP server Statistics Overview in the web interface: 1.
Page 166 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 DHCP Message Received Counters Display counters of DHCP messages received by DHCP server. Š DISCOVER: Number of DHCP DISCOVER messages received. Š REQUEST: Number of DHCP REQUEST messages received. ...
Page 167 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Š Refresh: Click to refresh the page. ...
Page 168 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-15. DYNAMIC DHCP SNOOPING TABLE SCREEN PARAMETER DESCRIPTION DHCP snooping Table Columns Š MAC Address: User MAC address of the entry. Š VLAN ID: VLAN-ID in which the DHCP traffic is permitted. ...
Page 169 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Server Statistics Š Transmit to Server: The number of packets that are relayed from client to server. Š Transmit Error: The number of packets that resulted in errors while being sent to clients. ...
Page 170 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-17. DHCP DETAILED STATISTICS SCREEN Server Statistics Š Rx and Tx Discover: The number of discover (option 53 with value 1) packets received and transmitted. ...
Page 171 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.5 SECURITY 3.5.1 ACCESS MANAGEMENT STATISTICS This section shows you detailed statistics for Access Management including HTTP, HTTPS, SSH. TELNET, and SSH. WEB INTERFACE To display the Access Management Statistics in the web interface: 1.
Page 172 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.5.2 NETWORK PORT SECURITY SWITCH This section shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules—the user modules. When a user module has enabled port security on a port, the port is set-up for software- based learning.
Page 173 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š State: Shows the current state of the port. It can take one of four values: - Disabled: No user modules are currently using the Port Security service. - Ready: The Port Security service is in use by at least one user module, and is awaiting frames from unknown MAC addresses to arrive.
Page 174 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š State: Indicates whether the corresponding MAC address is blocked or forwarding. In the blocked state, it will not be allowed to transmit or receive traffic. Š...
Page 175 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Last ID: The user name (supplicant identity) carried in the most recently received Response Identity EAPOL frame for EAPOL-based authentication, and the source MAC address from the most recently received frame from a new client for MAC-based authentication. Š...
Page 176 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 - Port-based 802.1X - Single 802.1X - Multi 802.1X Š Backend Server Counters: These backend (RADIUS) frame counters are available for the following administrative states: ...
Page 177 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 ACL STATUS This section describes how to shows the ACL status for different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations.
Page 178 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Rate Limiter: Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When Disabled is displayed, the rate limiter ...
Page 179 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds. Refresh: Click to refresh the page immediately. Š...
Page 180 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.5.3 AAA RADIUS OVERVIEW This section shows you an overview of the RADIUS Authentication and Accounting servers’ status to ensure the function is workable. WEB INTERFACE To display the RADIUS Overview Configuration in the web interface: 1.
Page 181 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 - Ready: The server is enabled, IP communication is up and running, and the RADIUS module is ready to accept accounting attempts. - Dead (X seconds left): Accounting attempts were made to this server, but it did not reply within the configured timeout. The server has temporarily been disabled, but will get re-enabled when the dead-time expires.
Page 182 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION RADIUS Authentication Statistics The statistics map closely to those specified in RFC4668—RADIUS Authentication Client MIB. Use the server select box to switch between the backend servers to show details for. Š...
Page 183 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š ID: Indicates the index of Statistics entry. Š Data Source(if Index): The port ID that wants to be monitored. Š Drop: The total number of events in which packets were dropped by the probe due to lack of resources. ...
Page 184 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-29. RMON HSTORY OVERVIEW SCREEN PARAMETER DESCRIPTION Š History Index: Indicates the History index control entry. Š Sample Index: Indicates the data entry index associated with the control entry. ...
Page 185 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 ALARM This page provides an overview of RMON Alarm entries. Each page shows up to 99 entries from the Alarm table, default is 20, selected through the “entries per page” input field. When first visited, the web page will show the first 20 entries from the beginning of the Alarm table.
Page 186 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 EVENT This page provides an overview of RMON Event table entries. Each page shows up to 99 entries from the Event table, default is 20, selected through the “entries per page”...
Page 187 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.6 LACP 3.6.1 SYSTEM STATUS This section describes how to set the LACP function on the switch and provide a status overview for all LACP instances. WEB INTERFACE To display the LACP System status in the web interface: 1.
Page 188 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-33. LACP STATUS SCREEN PARAMETER DESCRIPTION Š Port: The switch port number. Š LACP: ‘Yes’ means that LACP is enabled and the port link is up. ‘No’ means that LACP is not enabled or that the port link is down. ...
Page 189 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Port: The switch port number. LACP Received: Shows how many LACP frames have been received at each port. LACP Transmitted: Shows how many LACP frames have been sent from each port. Discarded: Shows how many unknown or illegal LACP frames have been discarded at each port.
Page 190 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.8 SPANNING TREE 3.8.1 BRIDGE STATUS After you complete the MSTI Port configuration, you can set the switch to display the Bridge Status. The Section provides a status overview of all STP bridge instances.
Page 191 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.8.2 PORT STATUS After you complete the STP configuration, the switch can display the STP Port Status. This section explains how to display the STP CIST port status for physical ports of the currently selected switch.
Page 192 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-38. STP STATISTICS SCREEN PARAMETER DESCRIPTION Š Port: The number of the logical STP port. Š MSTP: The number of MSTP Configuration BPDU’s received/transmitted on the port. ...
Page 193 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-39. MVR STATISTICS SCREEN PARAMETER DESCRIPTION Š VLAN ID: The Multicast VLAN ID. Š IGMP/MLD Queries Received: The number of Received Queries for IGMP and MLD, respectively. ...
Page 194 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION MVR Channels (Groups) Information Table Columns Š VLAN ID: VLAN ID of the group. Š Groups: Group ID of the group displayed. ...
Page 195 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Type: Indicates the Type. It can be either Allow or Deny. Š Hardware Filter/Switch: Indicates whether the data plane destined to the specific group address from the source IPv4/IPv6 address ...
Page 196 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š VLAN ID: The VLAN ID of the entry. Š Querier Version: The currently working Querier version. Š Host Version: The currently working Host Version. ...
Page 197 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-43. IGMP SNOOPING GROUPS INFORMATION SCREEN PARAMETER DESCRIPTION IGMP Group Table Columns Š VLAN ID: VLAN ID of the group. Š Groups: Group address of the group displayed. ...
Page 198 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š IGMP SFM Information Table Columns Š VLAN ID: VLAN ID of the group. Š Group: Group address of the group displayed. ...
Page 199 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-45. MLD SNOOPING STATUS SCREEN PARAMETER DESCRIPTION Š VLAN ID: The VLAN ID of the entry. Š Querier Version: Currently working Querier Version. ...
Page 200 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 GROUP INFORMATION This section describes how to set the MLD Snooping Groups Information. The “Start from VLAN”, and “group” input fields allow the user to select the starting point in the MLD Group Table. WEB INTERFACE To display the MLD Snooping Group information in the web interface: 1.
Page 201 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 IPV6 SFM INFORMATION Entries in the MLD SFM Information Table are shown on this page. The MLD SFM (Source-Filtered Multicast) Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port. Different source addresses belong to the same group are treated as single entry.
Page 202 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.11 LLDP 3.11.1 NEIGHBOR This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an LLDP neighbor is detected.
Page 203 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Management Address: Management Address is the neighbor unit’s address that is used for higher layer entities to assist discovery by the network management. This could, for instance, hold the neighbor’s IP address. Buttons Š...
Page 204 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 LLDP-MED Endpoint Device Definition LLDP-MED Endpoint Devices, as defined in TIA-1057, are located at the IEEE 802 LAN network edge, and participate in IP communication service using the LLDP-MED framework. Within the LLDP-MED Endpoint Device category, the LLDP-MED scheme is broken into further Endpoint Device Classes, as defined in the following.
Page 205 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3. Guest Voice— to support a separate limited feature-set voice service for guest users and visitors with their own IP Telephony handsets and other similar appliances supporting interactive voice services. 4.
Page 206 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.11.3 EEE Using EEE gives you power savings at the expense of traffic latency. This latency occurs because the circuits EEE turn off to save power and need time to boot up before sending traffic over the link.
Page 207 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Resolved Tx Tw: The resolved Tx Tw for this link. NOTE: NOT the link partner. Š The resolved value that is the actual “tx wakeup time” used for this link (based on EEE information exchanged via LLDP). ...
Page 208 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 NOTE: If your network does not have any devices that enable the EEE function, then the table will show “No LLDP EEE information found.” PARAMETER DESCRIPTION Global Counters Š...
Page 209 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.12 MAC TABLE Entries in the MAC Table are shown on this page. The MAC Table contains up to 8192 entries, and is sorted first by VLAN ID, then by MAC address.
Page 210 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 NOTE: 00-40-C7-73-01-29 : your switch MAC address (for IPv4) 33-33-00-00-00-01 : Destination MAC (for IPv6 Router Advertisement) (reference IPv6 RA.JPG) 33-33-00-00-00-02 : Destination MAC (for IPv6 Router Solicitation) (reference IPv6 RS.JPG) 33-33-FF-73-01-29 : Destination MAC (for IPv6 Neighbor Solicitation) (reference IPv6 DAD.JPG) 33-33-FF-A8-01-01: your switch MAC address (for IPv6 global IP) FF-FF-FF-FF-FF-FF: for Broadcast.
Page 211 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 If a port is included in a Forbidden port list and dynamic VLAN user register VLAN on same Forbidden port, then conflict port will be displayed as an x image Š...
Page 212 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 - Voice VLAN: Voice VLAN is a VLAN configured specially for voice traffic typically originating from IP phones. - MVR: MVR is used to eliminate the need to duplicate multicast traffic for subscribers in each VLAN. Multicast traffic for all channels is sent only on a single (multicast) VLAN.
Page 213 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3. Display MAC-based information. FIGURE 3-55. MAC-BASED VLAN MEMBERSHIP STATUS FOR STATIC USER SCREEN PARAMETER DESCRIPTION Š MAC Address: Indicates the MAC address. Š VLAN ID: Indicates the VLAN ID. ...
Page 214 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 NOTE: When you change the Frame type field, a valid value of the following text field will vary depending on the new frame type you selected.
Page 215 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 PARAMETER DESCRIPTION Š Group Name: A valid Group Name is a string up to 16 characters that consists of a combination of alphabetic characters (a-z or A-Z) ...
Page 216 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 3.15 SFLOW This section shows receiver and per-port sFlow statistics. WEB INTERFACE To Display port sFlow statistics in the web interface: 1. Click Monitor and sFlow. 2.
Page 217 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: MONITOR TECHNICAL SUPPORT 1.877.877.2269 Š Flow Samples: The total number of flow samples sent to the sFlow receiver. Š Counter Samples: The total number of counter samples sent to the sFlow receiver. ...
Page 218 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 This chapter provides a set of basic system diagnosis. It let users know that whether the system is health or needs to be fixed. The basic system check includes ICMP Ping, Link OAM, ICMPv6, and VeriPHY Cable Diagnostics. 4.1 PING This section allows you to issue ICMP PING packets to troubleshoot IPv6 connectivity issues.
Page 219 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 4.2 PING6 This section explains how to issue ICMPv6 PING packets to troubleshoot IPv6 connectivity issues. WEB INTERFACE To configure an ICMPv6 PING Configuration in the web interface: 1.
Page 220 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 64 bytes from fe80::215:58ff:feed:69dd: icmp_seq=2, time=0ms 64 bytes from fe80::219:5bff:fe2f:b47: icmp_seq=3, time=0ms 64 bytes from fe80::215:58ff:feed:69dd: icmp_seq=3, time=0ms 64 bytes from fe80::219:5bff:fe2f:b47: icmp_seq=4, time=0ms 64 bytes from fe80::215:58ff:feed:69dd: icmp_seq=4, time=0ms Sent 5 packets, received 10 OK, 0 bad 4.3 CABLE DIAGNOSTICS This page is used for running the Cable Diagnostics for 10/100 and 1G copper ports.
Page 221 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 Cross D - Abnormal cross-pair coupling with pair D - Length: The length (in meters) of the cable pair. Buttons Š Start: Press this button to run the diagnostics. This will take approximately 5 seconds. If all ports are selected, this can take ...
Page 222 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: DIAGNOSTICS TECHNICAL SUPPORT 1.877.877.2269 Buttons Š Start: Click the “Start” button, then the switch will start to ping the device using ICMPv6 packet size what set on the switch. ...
Page 223 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 This chapter describes the entire switch Maintenance configuration tasks to enhance the performance of your local network including Restart Device, Firmware upgrade, Save/Restore, Import/Export. 5.1 RESTART DEVICE This section describes how to restart switch for any maintenance needs.
Page 224 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 FIGURE 5-2. REBOOT SCHEDULE SCREEN PARAMETER DESCRIPTION Š Mode: Indicates the reboot scheduling mode operation. Possible modes are: - Enabled: Enable switch reboot scheduling. - Disabled: Disable switch reboot scheduling.
Page 225 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 5.4 FIRMWARE This section describes how to upgrade Firmware. 5.4.1 FIRMWARE UPGRADE This page facilitates an update of the firmware controlling the switch. WEB INTERFACE To configure a Firmware Upgrade Configuration in the web interface: 1.
Page 226 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 5.4.2 FIRMWARE SELECTION This page provides information about the active and alternate (backup) firmware images in the device, and allows you to revert to the alternate image.
Page 227 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 5.5 CONFIGURATION The switch stores its configuration in a number of text files in CLI format. The files are either virtual (RAM-based) or stored in flash on the switch.
Page 228 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 5.5.2 DOWNLOAD This section describes how to export the Switch Configuration for maintenance needs. Any current configuration files will be exported as text format. It is possible to download a file from the web browser to all the files on the switch, except default-config, which is read-only. Select the file to download, select the destination file on the target, and click.
Page 229 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 5.5.3 UPLOAD The configuration upload function will back up and save the switch’s configuration into the running web browser PC. It is possible to upload any of the files on the switch to the web browser. Select the file and click Upload of running-config. This may take a little while to complete, as the file must be prepared for upload.
Page 230 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 5.5.4 ACTIVATE It is possible to activate any of the configuration files present on the switch, except for running-config, which represents the currently active configuration. Select the file to activate and click.
Page 231 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: MAINTENANCE TECHNICAL SUPPORT 1.877.877.2269 FIGURE 5-10. DELETE CONFIGURATION SCREEN PARAMETER DESCRIPTION Buttons Š Delete Configuration: Click the “Delete” button and the startup. 5.6 SERVER REPORT It is possible to download a server report file on the switch to the web browser. Download of a server-report may take a little while to complete, as the file must be prepared for download.
Page 232 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.1 FCC STATEMENT This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 233 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX A: REGULATORY INFORMATION TECHNICAL SUPPORT 1.877.877.2269 A.2 NOM STATEMENT 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
Page 234 B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice.
Page 235 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...

This manual is also suitable for:

Lgb5028a-r2

Black Box LGB5052A-R3 Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Black Box LGB5052A-R3

Summary of Contents for Black Box LGB5052A-R3

This manual is also suitable for:

Table of Contents
