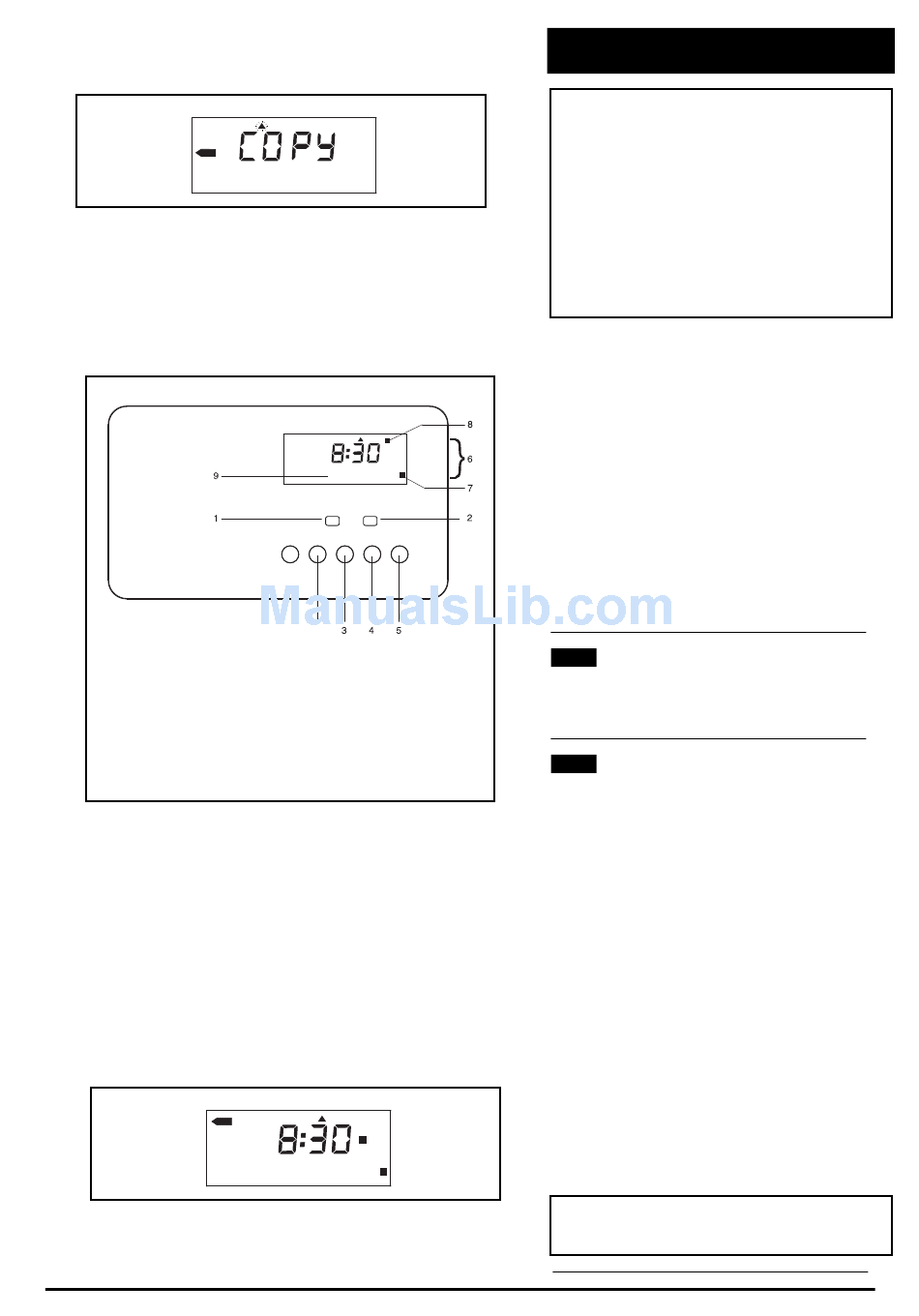

7.0 Programmer
NOTE: The programmer provides up to three ON/OFF
periods each day. If you do not want to use all these, a
switch period can be cancelled by programming the ON
operation for the same time as the OFF operation e.g.
2nd ON at 12.00 pm and 2nd OFF at 12.00 pm. When
the 3rd OFF time has been entered the programmer will
display the word COPY and the DAY OF THE WEEK
INDICATOR will flash (see Fig.15).
If required these ON/OFF times can now be quickly
copied so that they apply to any other day(s) you
choose. This avoids separately programming days with
identical switching times eg Monday to Friday. If not
copying press ENTER and press SET button to return
SET INDICATOR to run position.
vi) Use the (+) and (-) BUTTONS to move the DAY OF
THE WEEK INDICATOR to the next day that you wish
the times to apply and press the COPY BUTTON, the
display will indicate 'IN'.
Continue in this way until the programme has been
copied to all the days that you wish it to apply to.
AUTO
ALL DAY
24 HR
vii) When you have finished copying simply press
OFF
ENTER. The word COPY will be replaced with 'day'
and the DAY OF THE WEEK INDICATOR will flash.
3. You can now programme those days that require
different times to the ones you have just copied by
following the same procedure as described at the start
of this section, parts ii to v.
7.5
1. The following diagram (Fig.16) can be used to
identify the SELECT buttons and indicators.
7.6
1. The following programmes can be selected for either
HOT WATER or HEATING or both together.
AUTO:
ALL DAY:
24 HOURS: When 24 HOUR is selected the system
OFF:
2. To select a hot water programme press the HW
PROGRAMME SELECT BUTTON until the HW (HOT
WATER) PROGRAMME INDICATOR is pointing to the
required programme, e.g. ALL DAY (see Fig. 17)
3. To select a central heating programme follow the
same procedure using the CH PROGRAMME SELECT
BUTTON.
NOTE: When either HOT WATER or HEATING is
switched to ON the relevant INDICATOR LIGHT will
be illuminated (see Fig.16).
Select Buttons, Indicators & Symbols
Programme Selection
When AUTO is selected the programmer
will switch ON and OFF according to the
switching times held in the memory, ie up
to three ON/OFF periods per day.
When ALL DAY is selected the
programmer will switch the system on at
the 1st ON TIME and OFF at the 3rd OFF
TIME.
remains on continuously, ignoring all the
time settings.
When OFF is selected the programmer
clock continues to operate but the system
remains off.
