Page 1: User Guide

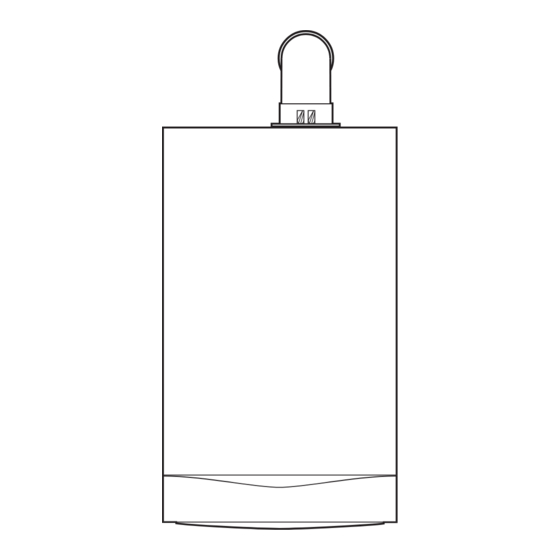

United Kingdom User Guide Condensing System Boiler Promax System 12 - 15 - 18 - 24 - 32 Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier. -
Page 2: Table Of Contents
Contents Section Page Natural Gas Quick Reference Guide Potterton Promax 12 System ErP G.C.N 41 592 42 Troubleshooting Potterton Promax 15 System ErP G.C.N 41 592 43 Potterton Promax 18 System ErP Repressurising System G.C.N 41 592 44 Potterton Promax 24 System ErP Clearances G.C.N... -
Page 3: Quick Reference Guide
1.0 Quick Reference Guide Reset ON/OFF/Reset Display Central Heating Calibration Control System Pressure Gauge Selector Switch Temperature Control Reset Reset Reset OFF Position Central Heating & Hot Water Reset The boiler will not operate. Both Heating & Hot Water will operate. Hold for approx 5 seconds and release. -
Page 4: Troubleshooting
Boiler not working 2.0 Troubleshooting START Make sure the gas supply is Is the ( ) light on and the Is the ON/OFF/Reset turned ON and check if other ) on ? Select Switch in the gas appliances are operating ) position and (e.g. - Page 5 2.0 Troubleshooting Is the Timer ON and calling for Is the Room Thermostat (if heat ? fitted) set high enough ? Typical examples of external timer CH ON CH OFF Turn Room Thermostat to maximum setting (typical example shown). Ensure timer is set for Central Heating ON (see any instructions supplied with timer).
-
Page 6: Repressurising System
3.0 Repressurising the System Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. Fig. 1 2. With the system cold and the boiler not operating the pressure should be at least 0.5 bar. During operation the Normal Pressure pressure should not exceed 2.5 bar, and will normally be between 1.0 and 1.5 (Fig. -
Page 7: Clearances
4.0 Clearances For your Safety 5mm Min 450mm 5mm Min NOTE: Only qualified persons are authorised to assemble, install and maintain the installation. 175mm Min 1. This appliance must have been installed in accordance (300mm Min if with the manufacturer’s instructions and the regulations using 80/125mm in force. -
Page 8: Care Of The Boiler
5.0 Care of the Boiler Cleaning the Outer case The painted panels should be wiped with a damp cloth and then dried completely. DO NOT USE ABRASIVE CLEANING AGENTS. Protection & Precaution 1. The boiler incorporates an integral frost protection feature that will operate when the selector switch is in the ( position. -
Page 9: Legislation
6.0 Legislation Installation, Commissioning, Service & Repair 1. This appliance must be install in accordance with the manufacturer’s instructions and the regulations in force. Read the instructions fully before installing or using the appliance. 2. In GB, this must be carried out by a competent person as stated in the Gas Safety (Installation &... -
Page 10: Warranty & Service
7.0 Warranty & Service General To make sure your boiler warranty is activated and maintained, it is essential that the: 1. Benchmark checklist is completed by your installer 2. Warranty is registered with Baxi 3. Boiler has an annual service Please note that failure to adhere to terms and conditions will make your warranty invalid. - Page 11 7.0 Warranty & Service Annual Service A service must be completed every 12 months from the date of installation to maintain your warranty. This service must be completed by one of the following: • A Gas Safe registered installer/engineer • Baxi Customer Support;...
-
Page 12: Erp Information
8.0 ErP Information Product Fiche - Boiler Space Heaters Product fiche for boiler space heaters Potterton Promax System ErP Seasonal space heating energy efficiency class (Prated or Psup) Rated heat output Seasonal space heating energy efficiency 13391 16087 21478 28522... - Page 13 8.0 ErP Information Package Fiche - Boilers Package fiche for boilers indicating the space heating energy efficiency of the package fi f ‘I’ I I I Class IV = 2%, Class V = 3%, Class VI = 4%, c fi Class VII = 3.5%, Class VIII = 5% c fi...
- Page 14 (1) The intermediate values are calculated by linear interpolation between the two adjacent values. (2) Prated is related to the preferential space heater or combination heater. Package efficiency Potterton Promax System ErP Temperature control X Temperature control Y © Baxi Heating UK Ltd 2015...
-
Page 15: Emergency
9.0 Emergency Warning ! If you smell gas Do not operate light switches Do not operate any electrical equipment Do not use a telephone in the hazardous area Extinguish any naked flame and do not smoke Open windows and doors in the hazardous area Turn off the gas supply at the meter Warn any other occupants and vacate the premises Telephone the National Gas Emergency Service on:-... - Page 16 Baxi Customer Support 0344 871 1525 Opening hours Monday - Friday, 8.00am-6.00pm Weekends and Bank Holidays, 8.30am-2.00pm Please note calls may be recorded for training and monitoring purposes baxi.co.uk Register now to activate your warranty: www.baxi.co.uk/registration For the warranty to be maintained, please make sure... Benchmark checklist is completed Warranty is registered with Baxi The boiler has an annual service...
