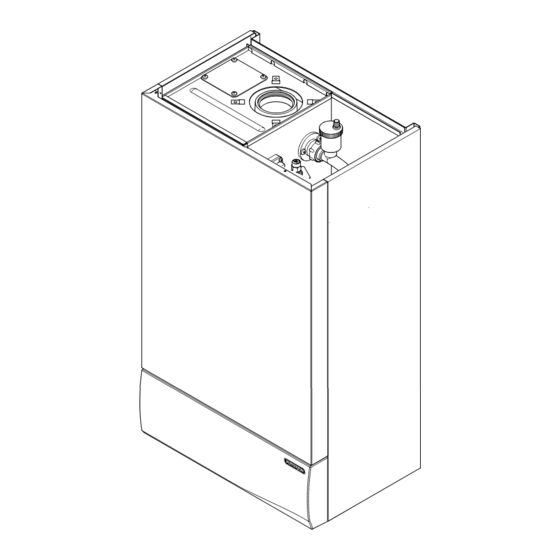

- Page 1 Promax System HE Wall Mounted Powered Flue Condensing Boiler Gas Fired Central Heating Unit User’s Operating Instructions Please keep these instructions safe. Should you move house, please hand them over to the next occupier.
- Page 2 41 590 69 Guarantee The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations Your Potterton Promax System HE is 1993 N 3083” and is deemed to meet the designed and produced to meet all the requirements of Directive 92/42/EEC on the energy relevant Standards.
-
Page 3: This Appliance Must Be Earthed
01256 372300 or writing to:- may interfere with the normal operation of the 1 Elmwood, appliance without the express written Chineham Business Park, permission of Potterton could invalidate the Crockford Lane, appliance warranty and infringe the G AFETY Basingstoke. -
Page 4: Operating The Boiler
5. The system must be re-pressurised by your Service Engineer. In Operation 1. The Promax System HE is a high efficiency “condensing boiler”. In common with other condensing boilers its exceptional efficiency means the flue gases are cooled to such an extent that Fig. -
Page 5: Safety Devices
3.0 Safety Devices Operation of Safety Devices 1. Your Potterton Promax System HE is fitted with HIGH safety devices which shut down the appliance if: a) the system overheats. b) the condensate drain is blocked. c) there is no gas to the boiler. - Page 6 4.0 Clearances 490mm 5mm Min 5mm Min Clearances around the Boiler (Figs. 10 & 11) 200mm 1. The minimum clear spaces needed around the boiler are: - 200mm Bottom - 200mm Both sides - 5mm Front - 500mm (For Servicing) - 5mm (In Operation) 2.
- Page 7 A short parts list is included in the Installation and Servicing Instructions. Guarantee 1. Your Potterton Promax System HE is designed and produced to meet all the relevant Standards. 2. Potterton provide a 12 month guarantee on the boiler.
- Page 8 Potterton, Baxi UK Limited, Brownedge Road, Bamber Bridge, Preston, Lancashire. PR5 6SN After Sales Service 08706 096 096 www.baxi.com Comp N 5106704 - Iss A - 1/02...
