QUICK START GUIDE

For a full explanation of all features and instructions, please refer to the User's Guide.
1. Setting up your Digital Video Baby Monitor
MODELS:
A. Connecting the Power Supply for the Baby Unit
MBP622
MBP622-2
MBP622-3
MBP622-4
Strangulation hazard. Children have STRANGLED in cords. Keep
this cord out of the reach of children (more than 1 metre away).
Do not remove this tag. Never use extension cords with AC
Adapters. Only use the AC Adapters provided.
WARNING:

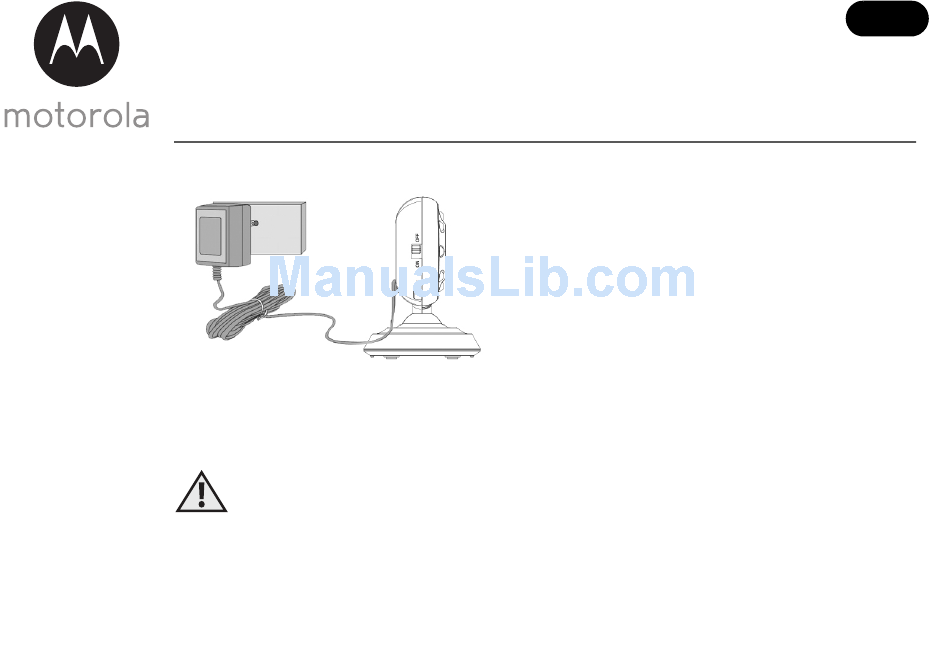

• Insert the small plug of the Power
Adapter into the socket in the back of
the Baby Unit and the other end into a
suitable mains power socket.
• Only use the enclosed adapter (6V DC /
500mA).
• Slide the ON/OFF switch to the ON
position.
UK EN

Advertisement

loading

  Also See for Motorola MBP622

  Related Manuals for Motorola MBP622

  Summary of Contents for Motorola MBP622

  • Page 1: Quick Start Guide

    For a full explanation of all features and instructions, please refer to the User’s Guide. 1. Setting up your Digital Video Baby Monitor MODELS: A. Connecting the Power Supply for the Baby Unit MBP622 • Insert the small plug of the Power MBP622-2 Adapter into the socket in the back of...
  • Page 2 UK EN B. Installing the battery pack for the Parent Unit • A rechargeable battery pack is supplied and should be installed and Black charged, so that the Parent Unit can be moved without losing the link and picture from the Baby Unit(s). •...
  • Page 3 UK EN C. Fastening the cover of the Parent Unit • Place the battery compartment cover over the battery, making sure the battery wires are carefully pushed down and the cover fits properly. • Gently tighten the screw using a small cross-head or flat-head screwdriver.
  • Page 4: Basic Operation Of The Keys

    UK EN 2. Basic Operation of the Keys Parent Unit Power / Video Press and hold to switch the Parent Unit ON/OFF. ON/OFF button In monitor mode, press to turn the LCD screen ON/OFF. Press to increase sound volume. Press to scroll up menu UP/VOL+ button options/settings.
  • Page 5: General Information

    +44 (0) 844 557 0890 (UK only) +44 (0) 8187 62092 (ROI) Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold for use with this product that it...
  • Page 6 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF...
  • Page 7 Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
  • Page 8 International LTD., official licensee for this product. MOTOROLA and the Stylised M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All Printed in China other trademarks are the property of their respective owners.
