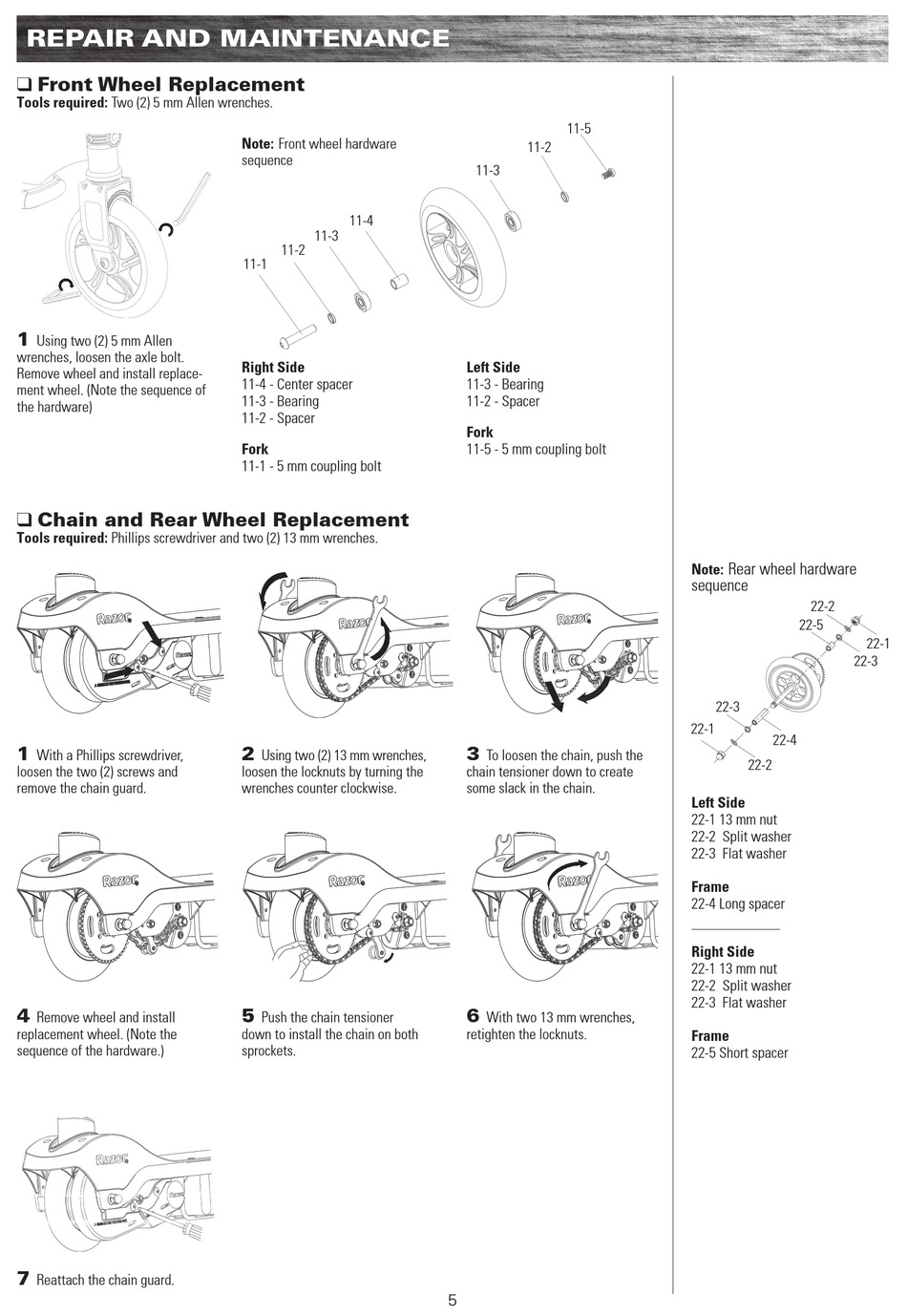

REPAIR AND MAINTENANCE

q Front Wheel Replacement
Tools required: Two (2) 5 mm Allen wrenches.
1
Using two (2) 5 mm Allen
wrenches, loosen the axle bolt.
Remove wheel and install replace-
ment wheel. (Note the sequence of
the hardware)
q Chain and Rear Wheel Replacement
Tools required: Phillips screwdriver and two (2) 13 mm wrenches.
1
With a Phillips screwdriver,
loosen the two (2) screws and
remove the chain guard.
4
Remove wheel and install
replacement wheel. (Note the
sequence of the hardware.)
7
Reattach the chain guard.
Note: Front wheel hardware
sequence
11-4
11-3
11-2
11-1
Right Side
11-4 - Center spacer
11-3 - Bearing
11-2 - Spacer
Fork
11-1 - 5 mm coupling bolt
2
Using two (2) 13 mm wrenches,
loosen the locknuts by turning the
wrenches counter clockwise.
5
Push the chain tensioner
down to install the chain on both
sprockets.
11-5
11-2
11-3
Left Side
11-3 - Bearing
11-2 - Spacer
Fork
11-5 - 5 mm coupling bolt
3
To loosen the chain, push the
chain tensioner down to create
some slack in the chain.
6
With two 13 mm wrenches,
retighten the locknuts.
5
Rear wheel hardware
Note:
sequence
22-2
22-5
22-3
22-3
22-1
22-4
22-2
Left Side
22-1 13 mm nut
22-2 Split washer
22-3 Flat washer
Frame
22-4 Long spacer
Right Side
22-1 13 mm nut
22-2 Split washer
22-3 Flat washer
Frame
22-5 Short spacer
22-1
