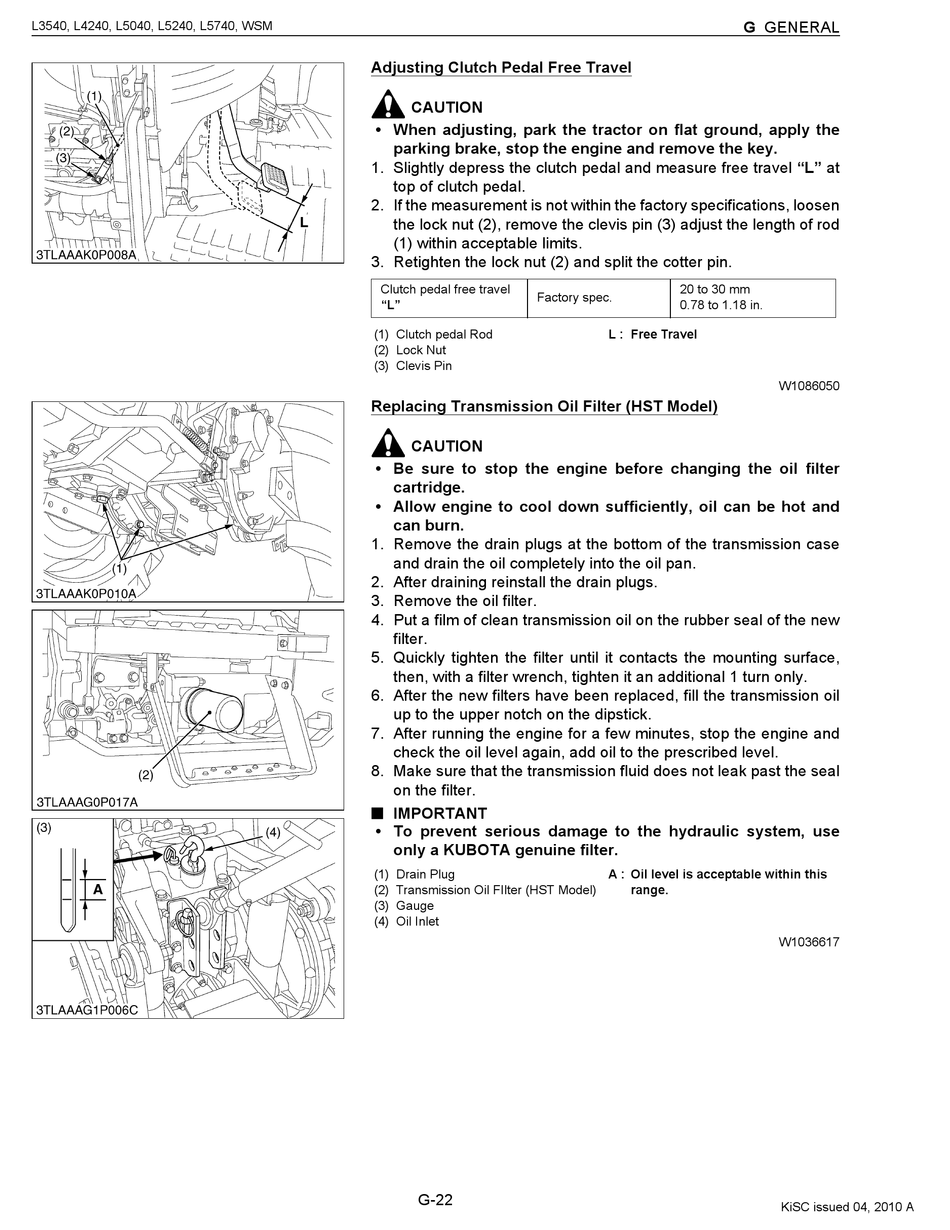

Adjusting Clutch Pedal Free Travel; Replacing Transmission Oil Filter - Kubota L3540 Workshop Manual

L3540, L4240, L5040, L5240, L5740, WSM

Adjusting Clutch Pedal Free Travel

CAUTION
• When adjusting, park the tractor on flat ground, apply the
parking brake, stop the engine and remove the key.
1. Slightly depress the clutch pedal and measure free travel "L" at
top of clutch pedal.
2. If the measurement is not within the factory specifications, loosen
the lock nut (2), remove the clevis pin (3) adjust the length of rod
(1) within acceptable limits.
3. Retighten the lock nut (2) and split the cotter pin.
Clutch pedal free travel
Factory spec.
"L"
(1) Clutch pedal Rod
(2) Lock Nut
(3) Clevis Pin
Replacing Transmission Oil Filter (HST Model)
CAUTION
• Be sure to stop the engine before changing the oil filter
cartridge.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. Remove the drain plugs at the bottom of the transmission case
and drain the oil completely into the oil pan.
2. After draining reinstall the drain plugs.
3. Remove the oil filter.
4. Put a film of clean transmission oil on the rubber seal of the new
filter.
5. Quickly tighten the filter until it contacts the mounting surface,
then, with a filter wrench, tighten it an additional 1 turn only.
6. After the new filters have been replaced, fill the transmission oil
up to the upper notch on the dipstick.
7. After running the engine for a few minutes, stop the engine and
check the oil level again, add oil to the prescribed level.
8. Make sure that the transmission fluid does not leak past the seal
on the filter.
IMPORTANT
• To prevent serious damage to the hydraulic system, use
only a KUBOTA genuine filter.
(1) Drain Plug
(2) Transmission Oil FIlter (HST Model)
(3) Gauge
(4) Oil Inlet
G-22
G GENERAL
20 to 30 mm
0.78 to 1.18 in.
L : Free Travel
W1086050
A : Oil level is acceptable within this
range.
W1036617
KiSC issued 04, 2010 A
