Summary of Contents for MIMAKI JFX200-2513

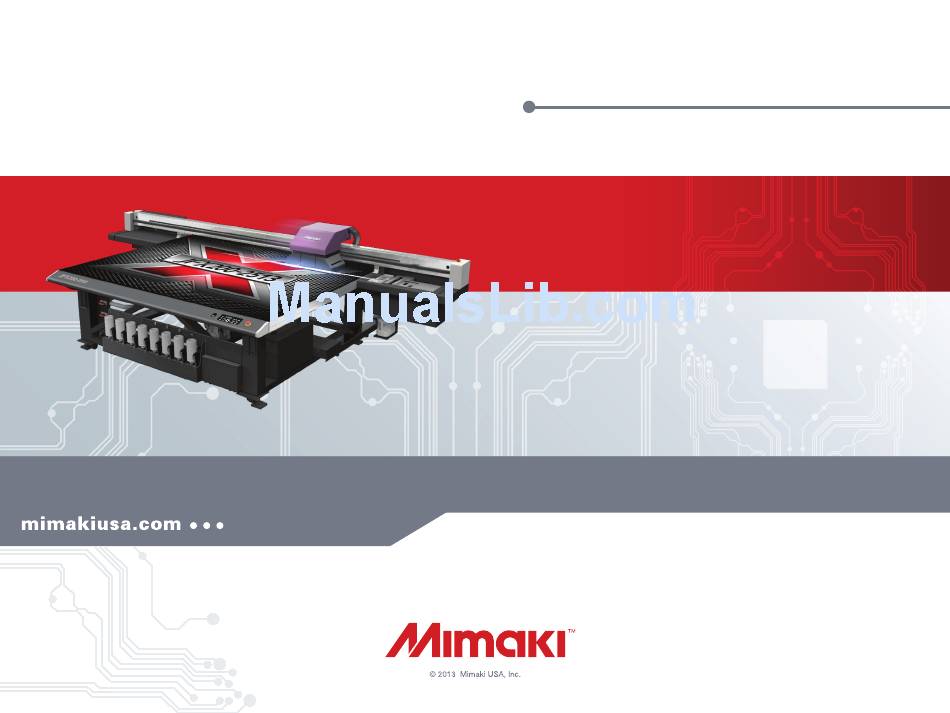

- Page 1 PRODUCT GUIDE JFX200-2513 LED UV Flatbed Printer Mimaki USA v1.0 Nov. 2013...
- Page 2 Features | JFX200-2513 Features Newest Member The JFX200-2513 is our newest member of the JFX Series LED Lamp flatbed printers Smaller Footprint JFX200-2513 is a smaller flatbed version of the JFX500-2131. It offers a compact bed size of 4 ft x 8 ft and prints in landscape orientation while offering a space- saving footprint.
- Page 3 Features - Pt.2 | JFX200-2513 Features - Pt.2 Reliability Accomplished by Stable Printing Ink Circulation System: prevents white ink from settling Nozzle Recovery Function: performs continuous printing even if some nozzles are clogged. Environmentally Safe and Energy Saving LED-UV Curing Light LED-UV lamps have a long life and low power consumption.
- Page 4 Head Configuration / Print Area | JFX200-2513 Head Configuration / Print Area Mimaki USA v1.0 Nov. 2013...
- Page 5 Major Differences from JFX500-2131 | JFX200-2513 Major Differences from JFX500-2131 Benefits of LED UV JFX500 Standard 645 sq.ft./hr (4C Model) 484 sq.ft./hr (4C+W) JFX200 Standard 269 sq.ft./hr (4C Model) 134 sq.ft./hr (4C+W) Honeycomb bed design is incorporated for strength and reduction of weight...
-
Page 6: System Configuration
System Configuration | JFX200-2513 System Configuration Mimaki USA v1.0 Nov. 2013... -
Page 7: Increased Productivity
Long Life LED-UV Curing Unit | JFX200-2513 Long Life LED-UV Curing Unit Low VOCs (Volatile Organic Compounds) / Ozone Reduced LED Lamp Low VOCs and less odor. No ventilation system required. Energy Efficient, Cost Effective Lamps Do Not Require Replacement - Generates little heat and lights up on demand. - Page 8 Head Configuration / Print Speed | JFX200-2513 Head Configuration / Print Speed The head assemblies are in a staggered configuration pattern. The simultaneous printing of color and white is attained by the white ink model. 269 ft 129 ft 43 ft 134.5 ft...
- Page 9 MAPS II & Variable Dot | JFX200-2513 MAPS II & Variable Dot MAPS II Mimaki Advanced Pass System MAPS eliminates banding by dispersing ink drops between passes. With this technology, the image quality of high productivity mode and the uneven print density using solid colors to reduce banding is improved.
- Page 10 Prints up to 2” Media | JFX200-2513 Prints up to 2” Media Print on media up to 2” thick. The maximum loadable substrate weight is up to 110 lbs (50kg). Head Gap The gap between the head assembly and the substrate should be less than 2mm.
- Page 11 Vacuum Area | JFX200-2513 Vacuum Area Vacuum unit is standard equipment on the JFX200-2513 The vacuum is switched on/off by the operation panel (vacuum power cannot be adjusted). Vacuum area is divided in X direction Adjust to open or close the valves, depending on the media size (the suction rate is increased by closing section panels not in use).
- Page 12 Layout Pins | JFX200-2513 Layout Pins Layout Pins At the front side of the printer bed, two rows of holes are placed 8” (200mm) apart in the layout configuration. Direct Fix with pins printing With layout to eliminate without pins...
- Page 13 Nozzle Recovery System | JFX200-2513 Nozzle Recovery System Nozzle Recovery System If a clogged nozzle is not improved using maintenance functions, continuous print operation without losing image quality is possible by using the other nozzles to compensate. Example of registering clogged nozzles...
- Page 14 RIP Software | JFX200-2513 RIP Software Basic configuration settings are displayed with icons, enabling intuitive manipulation. Keeps you aware of ink usage and estimated print times. Related settings are gathered in one screen. This leads to easy operation without confusion, because changing the pages is not necessary.
- Page 15 New Ink Supply System: MBIS III | JFX200-2513 New Ink Supply System: MBIS III User friendly design: the procedure to replace the ink bottle is to simply take off the empty ink bottle and insert a new ink bottle (1L) directly to the unit with the cap jig attached.
- Page 16 Color Gamut Comparison | JFX200-2513 Color Gamut Comparison LUS-150 v Oce IJ255 Ink Property Comparison The color gamut of LUS-150 and Oce hard type ink is very comparable. Mimaki USA v1.0 Nov. 2013...
- Page 17 Adhesiveness (Media Compatibility) | JFX200-2513 Adhesiveness (Media Compatibility) LUS-150 v Oce IJ255 Ink Property Comparison Mimaki USA v1.0 Nov. 2013...
- Page 18 Outdoor Durability | JFX200-2513 Outdoor Durability LUS-150 v Oce IJ255 Ink Property Comparison The color change of our (C,M,K) LUS-150 is less than that of the Oce Sericol Mfg. type ink. Mimaki USA v1.0 Nov. 2013...
- Page 19 Outdoor Durability Pt.2 | JFX200-2513 Outdoor Durability Pt.2 LUS-150 v Oce IJ255 Ink Property Comparison Both inks discolor consistanty. The membrane cracking of Oce is worse the LUS-150. Mimaki USA v1.0 Nov. 2013...
- Page 20 Specifications | JFX200-2513 110lbs/ft / 50kg/m Mimaki USA v1.0 Nov. 2013...
- Page 21 888-530-3988 888-530-3986 888-530-3985 888-530-3987 855-897-2254 847-714-6790 mimakiusa.com...
