Requests for Care and Maintenance
This machine is a precision machine equipped with extremely fine mechanisms. Especially, the nozzle sur-
face of the heads from which the ink is discharged is affected even by a slightest attachment of dust or paper
powder and the proper printing results could not be obtained. With a view to using this machine in a better
condition, we would like to recommend performing the following care and maintenance on daily basis.

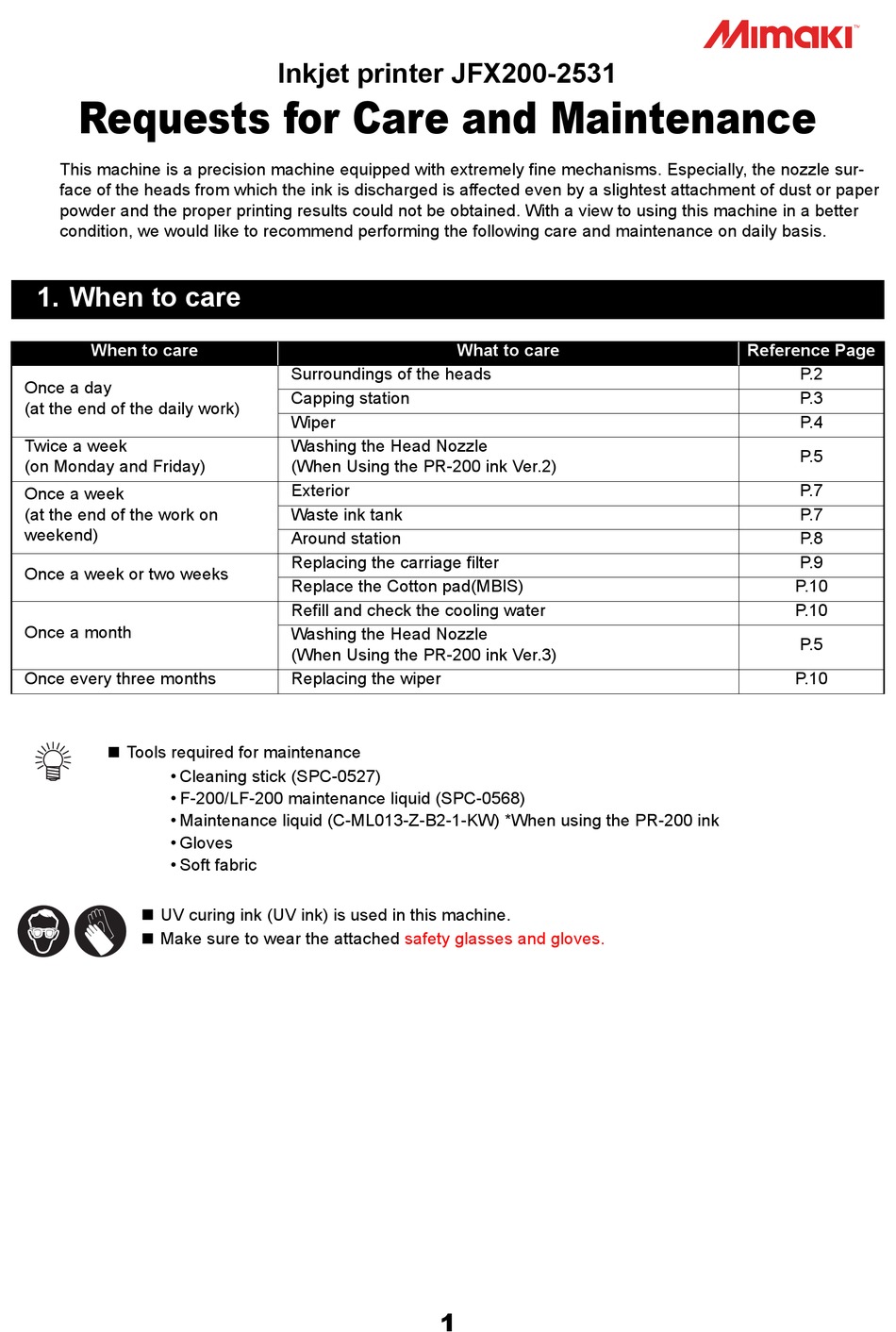

1. When to care
When to care
Once a day
(at the end of the daily work)
Twice a week
(on Monday and Friday)
Once a week
(at the end of the work on
weekend)
Once a week or two weeks
Once a month
Once every three months
 Tools required for maintenance
• Cleaning stick (SPC-0527)
• F-200/LF-200 maintenance liquid (SPC-0568)
• Maintenance liquid (C-ML013-Z-B2-1-KW) *When using the PR-200 ink
• Gloves
• Soft fabric
 UV curing ink (UV ink) is used in this machine.
 Make sure to wear the attached

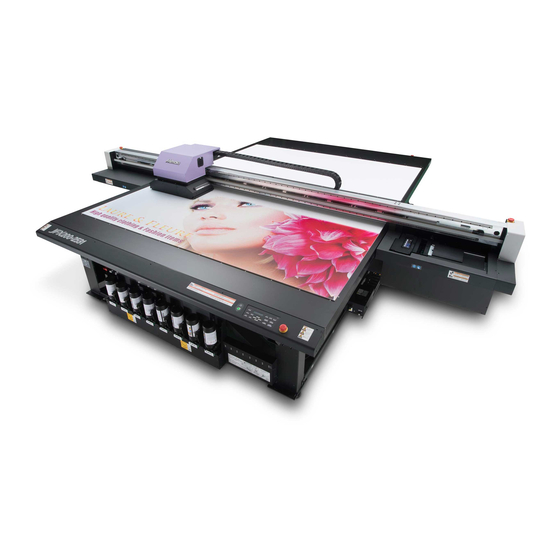

Inkjet printer JFX200-2531
Surroundings of the heads
Capping station
Wiper
Washing the Head Nozzle
(When Using the PR-200 ink Ver.2)
Exterior
Waste ink tank
Around station
Replacing the carriage filter
Replace the Cotton pad(MBIS)
Refill and check the cooling water
Washing the Head Nozzle
(When Using the PR-200 ink Ver.3)
Replacing the wiper
safety glasses and gloves.
1
What to care
Reference Page
P.2
P.3
P.4
P.5
P.7
P.7
P.8
P.9
P.10
P.10
P.5
P.10
