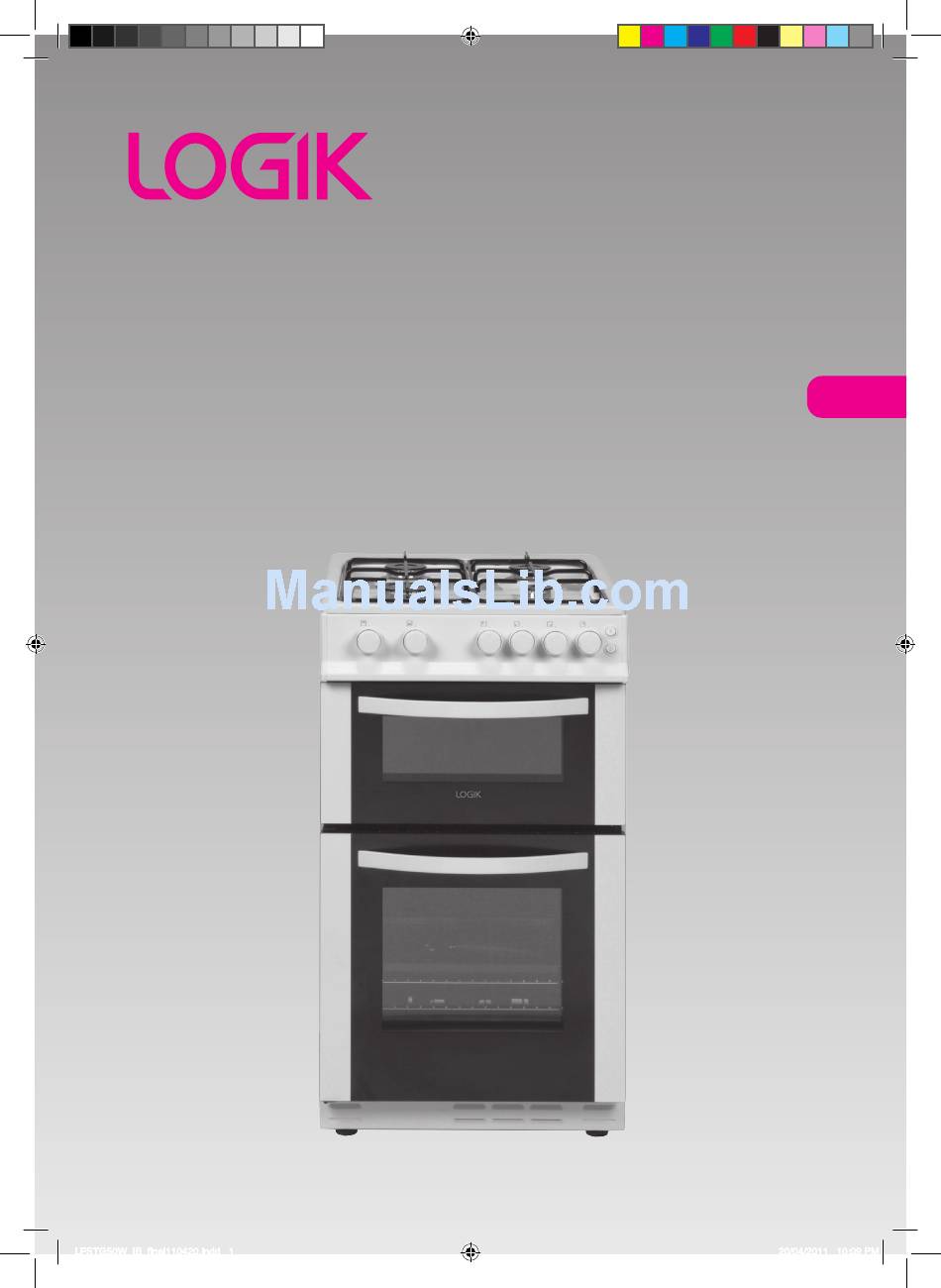

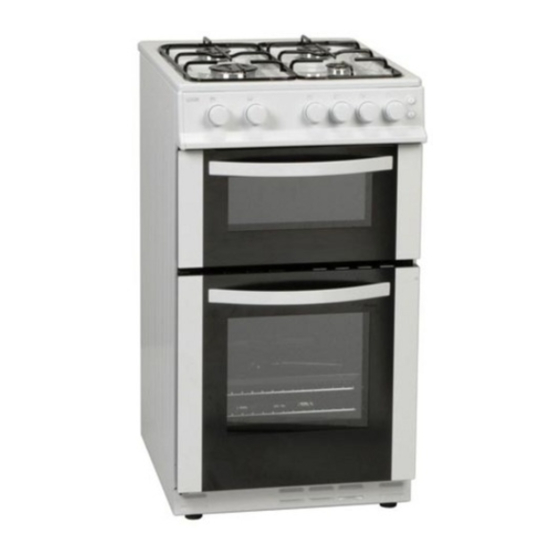

- Page 1 Free Standing Twin Cavity Gas Cooker Instruction / Installation Manual LFSTG50W LFSTG50W_IB_final110420.indd 1 20/04/2011 10:09 PM...
- Page 2 LFSTG50W_IB_final110420.indd 2 20/04/2011 10:09 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 5 Product Overview ......................... 6 Front View ...................................6 Top View ..................................6 Control Panel ................................7 Gas Burners .................................7 Before Using Your Cooker ......................8 Lighting the Hob Burners ......................8 Flame Failure Safety Feature ....................... 8 If the Burner Does Not Light ......................9 If the Flame Is Irregular ........................ - Page 4 Hints and Tips ..........................20 Specification ..........................21 Installation ..........................22 Adjusting the Feet ........................23 Moving the Cooker ........................23 Stability Bracket ......................... 23 Ventilation Requirements ......................24 Gas Installation ........................... 24 Installation and Service Regulations ..................24 Gas Connection ........................... 25 Installation Relevant to Natural Gas .......................
-
Page 5: Unpacking
Thank you for purchasing your new Logik Free Standing Twin Cavity Gas Cooker. You must read this manual in order to fully understand how to operate it correctly. This unit MUST be installed by a competent and Registered Engineer (Gas Safe in the UK). -
Page 6: Product Overview
Product Overview Front View Gas Hob Grill Door Handle Control Panel Oven Shelf Grill Tray Oven Door Grill Door Adjustable Feet Top View Large Burner (Fast) Small Burner (Simmer) Standard Burners LFSTG50W_IB_final110420.indd 6 20/04/2011 10:09 PM... -
Page 7: Control Panel
Control Panel Grill Control Front Right Burner (Small) Control Oven Control Rear Right Burner (Standard) Control Rear Left Burner (Standard) Control Oven Light Switch Front Left Burner (Large) Control Ignition Switch Gas Burners The relevant controls adjust the flow of gas through each of the burners. •... -
Page 8: Before Using Your Cooker
Before Using Your Cooker Before using your new cooker, please: • Read this instruction/installation manual, taking special note of the "Safety Warnings" section. • Make sure all the controls are turned off. • Turn the mains power on. Lighting the Hob Burners Choose the control for the burner you want to use. -
Page 9: If The Burner Does Not Light
If the Burner Does Not Light If the burner does not light, check that: • The cooker is switched on at the mains supply to enable the ignition circuit to work. • The gas is turned on. • You have held in the control for at least 5 to 10 seconds. • The ignitors are sparking. -
Page 10: General Guidelines
General Guidelines To get the best out of your hob, follow these simple suggestions: • Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. • Do not let large saucepans or frying pans overlap the edges of your hob as this can deflect heat onto your worktop and damage the surface. -
Page 11: First Time Use Of The Oven
First Time Use of the Oven Ensure that nothing has been left in the oven. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. -
Page 12: Flame Failure Safety Feature
Flame Failure Safety Feature The flame supervision device (FSD) probe cuts off the gas supply to the oven burner if the flame is blown out. When lighting the burner on flame failure models, hold in the control for approximately 10 seconds after the burner has lit. -
Page 13: Preheating
Preheating When you need to preheat the oven, we recommend you do so for 10 minutes. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven first. Cooking • Ensure that food is placed centrally on the shelf and that there is sufficient room around the baking tray/dish to allow for maximum heat circulation. -
Page 14: Grill Control
Grill Control This controls the grill burner. When using this mode, ensure that the door is used in the fully open or the partially open 30° position. Never use the grill with the door closed. Turn the control counter-clockwise to use. Lighting the Grill Burner Press the ignition button and at the same time press the grill control and turn counter-clockwise so that the control is at the maximum... -
Page 15: Using The Grill
Using the Grill The grill burner can be operated with the oven door in two positions: completely open or partially open (30° park position). Do not use the grill with the door closed. CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away. Cooking • The grill burner can be adjusted between the maximum and the minimum positions as indicated... -
Page 16: General Advice
General Advice Before you start cleaning your cooker, please: • Read the cleaning instructions and the ‘Safety Warnings’ sections. • Turn the cooker off at the mains socket and disconnect the plug from the socket. • Allow the cooker to completely cool down before cleaning. • Do not use a steam cleaner. -
Page 17: Cleaning The Inside Of Your Oven
Cleaning the Inside of Your Oven • Do not use abrasive cleaners, cloths or pads to clean the enamel. • Clean the enamel on the inside of the oven when it has cooled down, using household detergents or an ammonia-based cleaner. You may use an ‘off the shelf’ oven cleaner, if you carefully follow the manufacturers’ instructions. -
Page 18: Burner Parts And Pan Supports
Burner Parts and Pan Supports • You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. • After cleaning, check that the burner ring and burner caps are dry before replacing correctly. • It is very important to check that the burner ring and burner caps have been correctly positioned. -
Page 19: Removing The Grill Door
Removing the Grill Door The grill door can easily be removed as follows: • Open the grill door completely. • The swivel retainers of the right hand and left hand hinges are hooked onto the metal bar above them. Lift the retainers as shown. • Lift the grill door slightly. -
Page 20: Hints And Tips
Hints and Tips Problem Possible Solutions My hob burner does • Check the cooker is switched on. not light • Check the control is pushed in and turned on and the supply to the house is working. You should hear the gas when you turn a burner on. • The ignitors may be dirty. -
Page 21: Specification
Specification Model LFSTG50W Rated Voltage 230 V Rated Frequency 50 Hz Overall Dimension (W x D X H) 500(W) x 600 (D) x 900(H) (in mm) Oven: 37 Litres Usable Volume Grill: 20 Litres Oven Lamp Features and specifications are subject to change without prior notice. -
Page 22: Installation
Installation The cooker must be installed by a competent and Gas Safe Registered Engineer (in the UK) and in compliance with local safety and building regulation safety standards. This cooker can be installed next to a cabinet. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. -
Page 23: Adjusting The Feet
Adjusting the Feet Your oven stands on 4 adjustable feet. When the oven is placed where it will be used, check if the oven is balanced. If it is not balanced, you can adjust by turning the feet clockwise if required. It is possible to raise the appliance a maximum of 30mm by the feet. -
Page 24: Ventilation Requirements
Ventilation Requirements This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilation. The appliance should be installed in a room or space with an air supply in accordance with the latest edition of BS5440-2. -
Page 25: Gas Connection
Gas Connection The installation of the cooker to Natural Gas or LP Gas (using the LPG conversion kit supplied) must be carried out by a Gas Safe registered engineer. Installers must take account of the provisions of the relevant British Standards Code of Practice, the Gas Safety Regulations and the Building Regulations. -
Page 26: Replacement Of Burner Injectors
Replacement of Burner Injectors Select the injectors to be replaced according to the “Table for the choice of the injectors”. To Replace the Hob Injectors • Turn off and isolate the Gas and Electric supplies to the cooker. • Remove the burner ring and cap. • Unscrew the injectors. -
Page 27: To Replace The Grill Injector
To Replace the Grill Injector The grill injector can be accessed by removing the single screw on the tip of the burner (as shown). Remove the screw and pull Screw the grill burner towards the front of the cooker, the injector will be revealed on the rear surface of the cavity. -
Page 28: Table For The Choice Of The Injectors
Table for the Choice of the Injectors Natural Gas Burner Injector Values G 30-30 G 20-20 According To The Gas Type mBar mBar Injector 0.850 1.150 Gas Flow Large Burner (Fast) 218.13 gr/h 285.70 lt/h (15°C and 1013mbar) Power 3.000 3.000 Injector 0.650... -
Page 29: Electrical Connection
Electrical Connection This cooker is fitted with a BS1363 moulded plug. The mains plug must remain accessible when the cooker is in its place of use. If the installation requires any alterations to the domestic electric system, this must be performed by a qualified electrician. -
Page 30: Safety Warnings
Safety Warnings Installation Operation and Maintenance • This appliance should be installed in accordance • This appliance is NOT intended for use by persons with the regulations in force and only used in a (including children) with reduced physical, sensory well ventilated space. - Page 31 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Oven Shelf 20660300 Grill Rack 37006132 Grill Tray 20643831 Grill Pan Handle 37004739 Pan Supports (Left/Right) 37002185 / 37002186 Stability Bracket XXXXXXXXXX LPG Nozzle - Large Burner...
- Page 32 LFSTG50W_IB_final110420.indd 32 20/04/2011 10:10 PM...
- Page 33 LFSTG50W_IB_final110420.indd 33 20/04/2011 10:10 PM...
- Page 34 LFSTG50W_IB_final110420.indd 34 20/04/2011 10:10 PM...
- Page 35 LFSTG50W_IB_final110420.indd 35 20/04/2011 10:10 PM...
- Page 36 LFSTG50W_IB_final110420.indd 36 20/04/2011 10:10 PM...
