- Page 1 Freestanding Double Oven Gas Cooker Instruction / Installation Manual LTOG50W12 LTOG50W12_IB_261012_RICH.indd 1 14/11/2012 17:42...
-
Page 2: Table Of Contents
Contents Unpacking ............................. 4 Safety Warnings ..........................5 Installation ............................ 7 Adjusting the Feet ........................8 Moving the Cooker ........................8 Stability Bracket ........................... 8 Ventilation Requirements ......................9 Gas Installation ..........................9 Installation and Service Regulations ..................9 Gas Connection ........................... 10 Installation Relevant to Natural Gas ....................... - Page 3 Cooking with the Grill ........................ 23 First Time Use ................................23 Lighting the Grill ..............................23 Cooking ..................................24 Cleaning Instructions ......................... 25 Cleaning the Outside of the Cooker ....................... 25 Cleaning the Oven Door Glass .......................... 25 Cleaning the Inside of Your Oven ........................26 Cleaning the Gas Hob ............................
-
Page 4: Unpacking
Unpacking Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Oven Shelf x 2 Grill Rack x 1 Grill Tray x 1 The Main Unit Grill Pan Handle x 1 Pan Supports (Left/Right) ×... -
Page 5: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE • This appliance must be installed by a qualified Gas Safe registered engineer. The manufacturer is not responsible for any damage caused by incorrect installation. • Check whether there is any damage to the appliance after you have unpacked it. - Page 6 • Cleaning and user maintenance shall not be made by children without supervision. • Children should be supervised to ensure that they do not play with the appliance. • During use the appliance becomes hot. Care should be taken to avoid touching the parts inside the oven or the hob burners / pan stands.
-
Page 7: Installation
Installation • The cooker must be installed by a competent and Gas Safe Registered Engineer (in the UK) and in compliance with local safety and building regulation safety standards. • The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room in accordance with the latest editions of BS6172, BS5440-2 and BS6891, but not in a room containing a bath or shower. -
Page 8: Adjusting The Feet
Adjusting the Feet Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface. Your appliance must be level before use. The cooker has 4 levelling feet which can be adjusted by hand. Turn the feet anti-clockwise to lower the level or clockwise to raise the level as shown below. -
Page 9: Ventilation Requirements
Ventilation Requirements This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilation. The appliance should be installed in a room or space with an air supply in accordance with the latest edition of BS5440-2. -
Page 10: Gas Connection
Gas Connection • Only a suitably qualified and Gas Safe Registered Engineer may convert the appliance to a different gas type. • When using Butane (G30) gas a supply pressure of 28 -30 mbar is required. • When using Propane (G31) gas a supply pressure of 37 mbar is required. • Flexible hoses must be manufactured in accordance with BS669 part 1 and be of the correct construction for the type of gas being used. -
Page 11: Replacement Of Burner Injectors
Replacement of Burner Injectors This section is to be used by only a certified Gas Safe technician. Contact a certified Gas Safe technician to change the Hob Injectors. It is illegal to attempt to change the Hob Injectors yourself. Select the injectors to be replaced according to the “Table for the choice of the injectors”. To Replace the Hob Injectors • Turn off and isolate the Gas and Electric supplies to the cooker. -
Page 12: To Replace The Grill Injector
To Replace the Grill Injector The grill injector can be accessed by removing the single screw on the tip of the burner (as shown). Remove the screw and pull Screw the grill burner towards the front of the cooker, the injector will be revealed on the rear surface of the cavity. -
Page 13: Table For The Choice Of The Injectors
Table for the Choice of the Injectors Natural Gas Burner Injector Values According To The Gas Type. G 30/31 G 20 Destination: GB Gas Category II 2H3+ 28-30/37 mBar 20 mBar Injector 0.850 1.150 Gas Flow Large Burner (Fast) 218.13 gr/h 285.70 lt/h (15°C and 1013mbar) Power... -
Page 14: Electrical Connection
Electrical Connection This cooker is fitted with a BS1363 moulded plug. The mains plug must remain accessible when the cooker is in its place of use. If the installation requires any alterations to the domestic electric system, this must be performed by a qualified electrician. -
Page 15: Product Overview

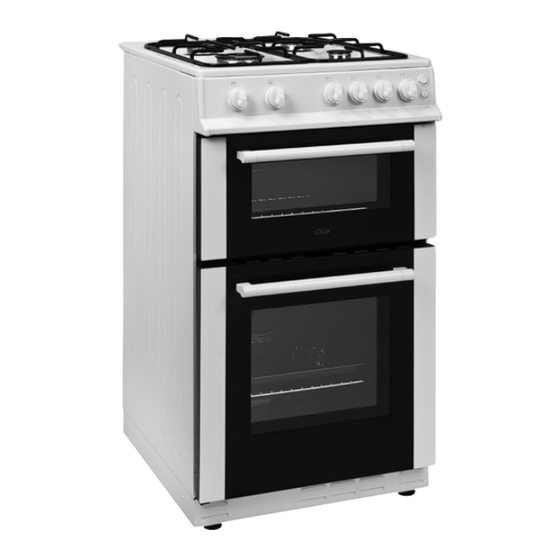

Product Overview Front View Gas Hob Top Oven Door Handle Control Panel Oven Shelf Grill Tray Main Oven Door Top Oven Door Adjustable Feet Top View Large Burner (Fast) Small Burner (Simmer) Standard Burners * All images are for indication only; please refer to your individual unit for actual item. LTOG50W12_IB_261012_RICH.indd 15 14/11/2012 17:42... -
Page 16: Control Panel
Control Panel Top Oven Control Front Right Burner (Small) Control Main Oven Control Rear Right Burner (Standard) Control Rear Left Burner (Standard) Control Oven Light Switch Front Left Burner (Large) Control Ignition Switch Gas Burners The relevant controls adjust the flow of gas through each of the burners. •... -
Page 17: Using The Hob Burners
Using the Hob Burners Choose the control for the burner you want to use. Press the ignition switch and at the same time press and hold the burner control in and then turn it counter-clockwise to the maximum position. Release the Ignition switch only, once the burner is lit. -
Page 18: If The Burner Does Not Light
If the Burner Does Not Light If the burner does not light, check that: • The cooker is switched on at the mains supply to enable the ignition circuit to work. • The gas is turned on. • You have held in the control for at least 5 to 10 seconds. • The ignitors are sparking. -
Page 19: General Guidelines
General Guidelines To get the best out of your hob, follow these simple suggestions: • Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. • Do not let large saucepans or frying pans overlap the edges of your hob as this can deflect heat onto your worktop and damage the surface. -
Page 20: Using The Oven
Using the Oven First Time Use of the Oven Ensure that nothing has been left in the top oven and main oven. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. -
Page 21: Shelf Positions
After ignition, check the flames visually. If you see yellow tipped, lifted or unstable flames; turn the control off, and call a Gas Safe registered engineer (in the UK) to check the cooker. If the burner flames go out accidentally, turn the burners off, and do not try to light them again for at least 90 seconds (to allow the gas to disperse). -
Page 22: Adjusting The Temperature
Adjusting the Temperature After you ignite the oven burner as explained before, you can adjust the temperature inside the oven as you require, using the numbers on the control: Larger numbers mean higher temperatures, while smaller numbers mean lower temperatures. Refer to the temperature table on the “Cooking” section for the approximate temperature references of those numbers. -
Page 23: Cooking With The Grill
Cooking with the Grill First Time Use Before using the grill for the first time, heat the grill on maximum for 15 ~ 20 minutes. There may be a little smoke and odour upon initial start up (for about 10 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory. -
Page 24: Cooking
Cooking The grill burner can be operated with the top oven door in two positions: completely open or partially open (30° park position). Do not use the grill with the door closed. CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away. The grill burner can be adjusted between the maximum and the minimum positions as indicated on the control. -
Page 25: Cleaning Instructions
Cleaning Instructions Before you start cleaning your cooker, please: • Read the cleaning instructions and the ‘Safety Warnings’ sections. • Turn the cooker off at the mains socket and disconnect the plug from the socket. • Allow the cooker to completely cool down before cleaning. • Do not use a steam cleaner. -
Page 26: Cleaning The Inside Of Your Oven
Cleaning the Inside of Your Oven • Do not use abrasive cleaners, cloths or pads to clean the enamel. • Clean the enamel on the inside of the oven when it has cooled down, using household detergents or an ammonia-based cleaner. You may use an ‘off the shelf’ oven cleaner, if you carefully follow the manufacturers’ instructions. -
Page 27: Replacing The Hob Burner Parts
Replacing the Hob Burner Parts Check that: • The ignitor is always clean to ensure trouble-free sparking. • The probe is always clean to ensure correct operation of the safety valves. Both the ignitor and probe must be very carefully cleaned using a toothbrush. When replacing the burner parts, ensure you do not damage the ignitor or temperature probes. -
Page 28: Removing The Top Oven Door
Removing the Top Oven Door • Ensure the door has cooled down. • Take care when handling glass. The top oven door can easily be removed as follows: Open the top oven door completely. The swivel retainers of the right hand and left hand hinges are hooked onto the metal bar above them. -
Page 29: Specifications
Specifications Model LTOG5W12 Rated Voltage 230 V Rated Frequency 50 Hz Overall Dimension (W x D X H) 500(W) x 600 (D) x 900(H) (mm) Main Oven: 36 Litres Usable Volume Top Oven: 15 Litres Oven Lamp 25 W E14, 300°C Total Consumption 1171 l/h Total Power... - Page 30 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only).
