- Page 1 Instruction Manual Freestanding Twin Cavity Gas Cooker LFTG60W12 / LFTG60A12 Image for indication only. LFTG60W_A12_IB_rollover.indd 1 29/03/2016 17:09...
-
Page 2: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 6 Product Overview ......................... 7 Front View ...................................7 Top View ..................................7 Control Panel ................................8 Gas Burners .................................8 Before Using Your Cooker ......................9 Lighting the Hob Burners ......................9 Flame Failure Safety Feature ....................... 9 If the Burner Does Not Light ...................... - Page 3 Replacing the Oven Lamp ......................20 Hints and Tips ..........................21 Product Fiche and Specifications ....................22 Energy Saving Tips and Energy Label ..................23 Installation ..........................24 Adjusting the Feet ........................25 Moving the Cooker ........................25 Stability Bracket ......................... 25 Ventilation Requirements ......................
-
Page 4: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE • This appliance must be installed by a qualified Gas Safe registered engineer. The manufacturer is not responsible for any damage caused by incorrect installation. • Check whether there is any damage to the appliance after you have unpacked it. - Page 5 • This appliance is not designed to be used with hob guards. Use of inappropriate hob guards can cause accidents. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Unpacking
Thank you for purchasing your new Logik Free Standing Twin Cavity Gas Cooker. You must read this manual in order to fully understand how to operate it correctly. This unit MUST be installed by a competent and Registered Engineer (Gas Safe in the UK). -
Page 7: Product Overview
Product Overview Front View Gas Hob Grill Door Handle Control Panel Oven Shelf Grill Pan Oven Door Grill Door Adjustable Feet Top View Large Burner (Fast) Small Burner (Simmer) Standard Burners * All images are for indication only; please refer to your individual unit for actual item. LFTG60W_A12_IB_rollover.indd 7 29/03/2016 17:09... -
Page 8: Control Panel
Control Panel Grill Control Front Right Burner (Small) Control Oven Control Rear Right Burner (Standard) Control Rear Left Burner (Standard) Control Oven Light Switch Front Left Burner (Large) Control Ignition Switch Gas Burners The relevant controls adjust the flow of gas through each of the burners. •... -
Page 9: Before Using Your Cooker
Before Using Your Cooker Before using your new cooker, please: • Read this instruction/installation manual, taking special note of the "Safety Warnings" section. • Make sure all the controls are turned off. • Turn the mains power on. Lighting the Hob Burners Choose the control for the burner you want to use. -
Page 10: If The Burner Does Not Light
If the Burner Does Not Light If the burner does not light, check that: • The cooker is switched on at the mains supply to enable the ignition circuit to work. • The gas is turned on. • You have held in the control for at least 5 to 10 seconds after ignition. • The ignitors are sparking. -
Page 11: General Guidelines
General Guidelines To get the best out of your hob, follow these simple suggestions: • Use saucepans with thick flat bottoms. Food in a saucepan with an uneven bottom will take longer to cook. • Do not let large saucepans or frying pans overlap the edges of your hob as this can deflect heat onto your worktop and damage the surface. -
Page 12: First Time Use Of The Oven
First Time Use of the Oven Ensure that nothing has been left in the oven. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. -
Page 13: Flame Failure Safety Feature
Flame Failure Safety Feature The flame supervision device (FSD) probe cuts off the gas supply to the burner within one minute if the flame is extinguished. Gas will flow out of the burner until the FSD cools down and activates, so you may notice the smell of gas, this is normal. -
Page 14: Using The Oven
Using the Oven After you ignite the oven burner as explained before, you can adjust the temperature inside the oven as you require, using the numbers on the control: Larger numbers mean higher temperatures, while smaller numbers mean lower temperatures. Refer to the temperature table on the next page for the approximate temperature references of those numbers. -
Page 15: Grill Control
Grill Control This controls the grill burner. When using this mode, ensure that the door is used in the fully open or the partially open 30° position. Never use the grill with the door closed. Turn the control counter-clockwise to use. Lighting the Grill Burner Press the ignition button and at the same time press the grill control and turn counter-clockwise so that the control is at the maximum... -
Page 16: Using The Grill
Using the Grill The grill burner can be operated with the oven door in two positions: completely open or partially open (30° park position). Do not use the grill with the door closed. CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away. Cooking • The grill burner can be adjusted between the maximum and the minimum positions as indicated... -
Page 17: General Advice
General Advice Before you start cleaning your cooker, please: • Read the cleaning instructions and the ‘Safety Warnings’ sections. • Turn the cooker off at the mains socket and disconnect the plug from the socket. • Allow the cooker to completely cool down before cleaning. • Do not use a steam cleaner. -
Page 18: Cleaning The Inside Of Your Oven
Cleaning the Inside of Your Oven • Do not use abrasive cleaners, cloths or pads to clean the enamel. • Clean the enamel on the inside of the oven when it has cooled down, using household detergents or an ammonia-based cleaner. You may use an ‘off the shelf’ oven cleaner, if you carefully follow the manufacturers’... -
Page 19: Burner Parts And Pan Supports
Burner Parts and Pan Supports • You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. • After cleaning, check that the burner ring and burner caps are completely dry before replacing correctly. • It is very important to check that the burner ring and burner caps have been correctly positioned. -
Page 20: Removing The Grill Door
Removing the Grill Door The grill door can easily be removed as follows: • Open the grill door completely. • The swivel retainers of the right hand and left hand hinges are hooked onto the metal bar above them. Lift the retainers as shown. • Lift the grill door slightly. -
Page 21: Hints And Tips
Hints and Tips Problem Possible Solutions My hob burner does • Check the cooker is switched on. not light • Check the control is pushed in and turned on and the gas supply to the house is working. You should hear the gas when you turn a burner on. • The ignitors may be dirty. -
Page 22: Product Fiche And Specifications
Product Fiche and Specifications Brand Logik Model LFTG60W12 / LFTG60A12 Product Type Gas Cooker Mass of the appliance 45.3 Kg Grill ( upper cavity) Heat Source Volume 22 litres Main Oven ( lower cavity) Energy Efficiency Index - Conventional 114.7 Enegy Class 6.12 MJ/cycle... -
Page 23: Energy Saving Tips And Energy Label
Energy Saving Tips and Energy Label Main Oven • Cook the meals together, if possible. • Keep the pre-heating time short. • Do not elongate cooking time. • Do not forget to turn off the oven at the end of cooking. • Do not open the oven door during cooking. -
Page 24: Installation
Installation • The cooker must be installed by a competent and Gas Safe Registered Engineer (in the UK) and in compliance with local safety and building regulation safety standards. • The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room in accordance with the latest editions of BS6172, BS5440-2 and BS6891, but not in a room containing a bath or shower. -
Page 25: Adjusting The Feet
Adjusting the Feet Your oven stands on 4 adjustable feet. When the oven is placed where it will be used, check if the oven is balanced. If it is not balanced, you can adjust by turning the feet clockwise if required. It is possible to raise the appliance a maximum of 30mm by the feet. -
Page 26: Ventilation Requirements
Ventilation Requirements This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilation. The appliance should be installed in a room or space with an air supply in accordance with the latest edition of BS5440-2. -
Page 27: Gas Connection
Gas Connection The installation of the cooker to Natural Gas or LP Gas (using the LPG conversion kit supplied) must be carried out by a Gas Safe registered engineer. Installers must take account of the provisions of the relevant British Standards Code of Practice, the Gas Safety Regulations and the Building Regulations. -
Page 28: Replacement Of Burner Injectors
Replacement of Burner Injectors This section is to be used by only a registered Gas Safe (in UK) engineer. Contact a certified Gas Safe (in UK) engineer to change the Hob Injectors. It is illegal to attempt to change the Hob Injectors yourself. -
Page 29: To Replace The Grill Injector
To Replace the Grill Injector The grill injector can be accessed by removing the single screw on the tip of the burner (as shown). Remove the screw and pull Screw the grill burner towards the front of the cooker, the injector will be revealed on the rear surface of the cavity. - Page 30 Table for the Choice of the Injectors Natural Gas Burner Injector Values G30/G31 G 20-20 According To The Gas Type 28-30/37 mbar mBar Injector 0.850 1.150 Gas Flow Large Burner (Fast) 218.13 gr/h 285.70 lt/h (15°C and 1013mbar) Power 3.000 3.000 Injector 0.650...
-
Page 31: Electrical Connection
Electrical Connection This cooker is fitted with a BS1363 moulded plug. The plug and socket must be accessible after installation, or an all-pole disconnection switch provided in the fixed wiring in accordance with the local wiring regulations. If the installation requires any alterations to the domestic electric system, this must be performed by a qualified electrician. - Page 32 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only).
Need help?
Do you have a question about the LFTG60W12 and is the answer not in the manual?
Questions and answers

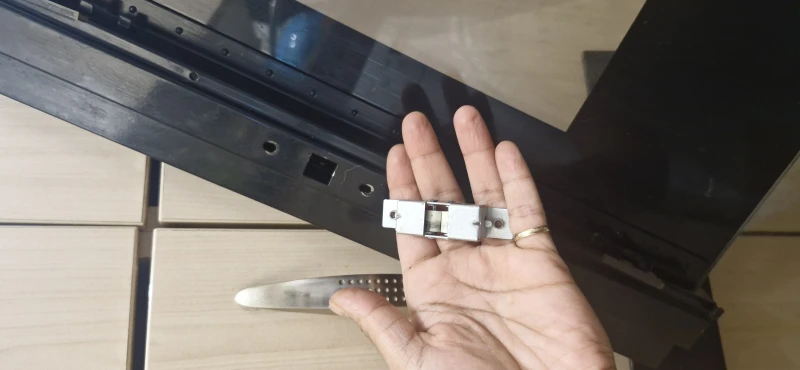

I can't find how to remove oven door. It has grill but not oven. I need to reinstall my catch/latch it fell out when I removed the glass
