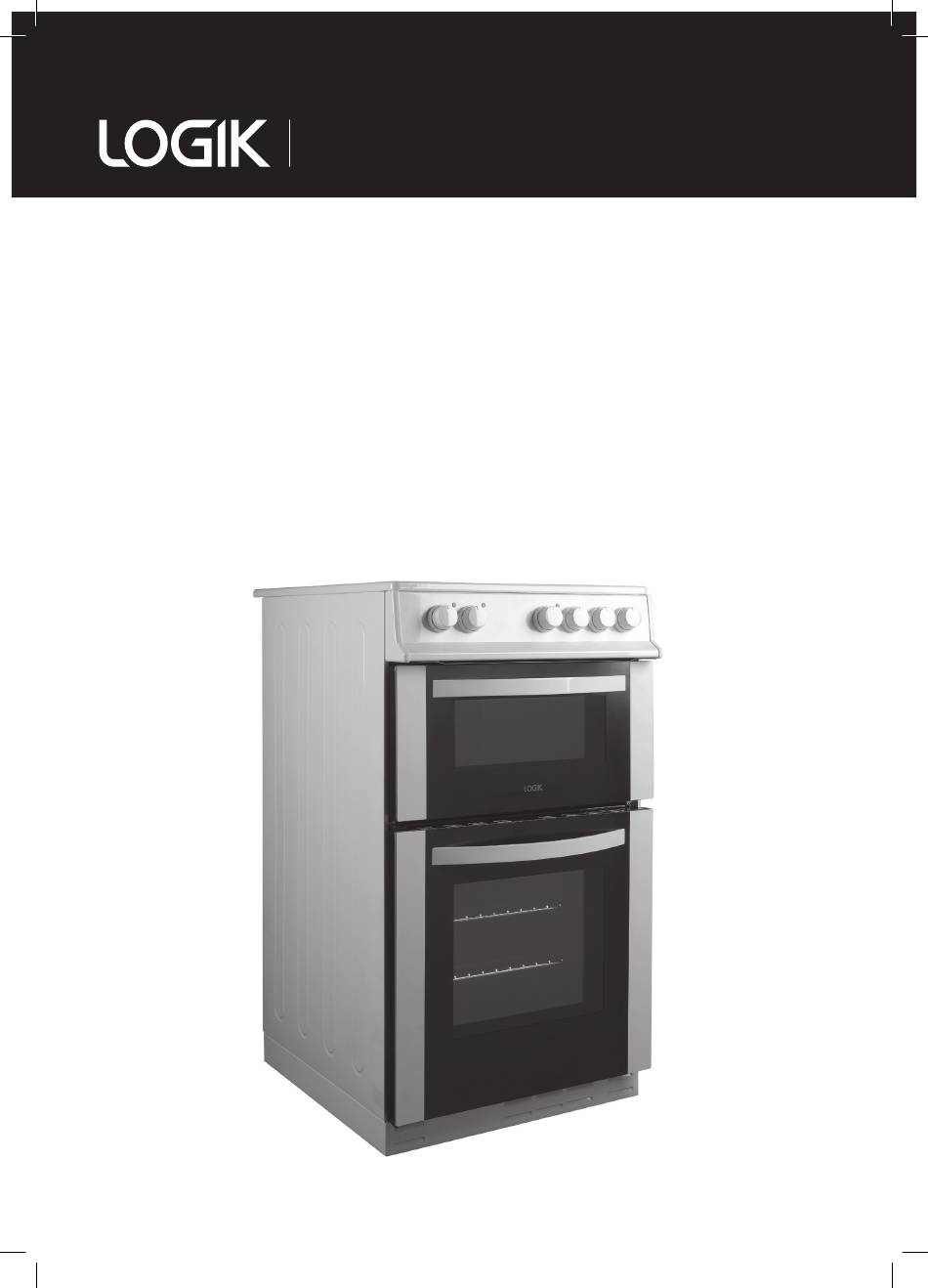

- Page 1 Instruction Manual Free-Standing Twin Cavity Electric Cooker LFTC50W12 LFTC50W12_IB.indd 1 05/12/2014 14:39...
- Page 2 LFTC50W12_IB.indd 2 05/12/2014 14:39...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 6 Product Overview ......................... 7 Front View ...................................7 Top View ..................................7 Control Panel ................................8 Before Using Your Cooker ......................8 First Time Use of the Hob ......................8 Choosing the Right Cookware ..................... 8 Using Your Hob .......................... -
Page 4: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE • It is recommended that this appliance is installed by a qualified electrical engineer. The manufacturer is not responsible for any damage caused by incorrect installation. • Check whether there is any damage to the appliance after you have unpacked it. - Page 5 • Cleaning and user maintenance shall not be made by children without supervision. • Children should be supervised to ensure that they do not play with the appliance. • During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven or the hotplates.
-
Page 6: Unpacking
Thank you for purchasing your new Logik Free Standing Twin Cavity Electric Cooker. You must read this manual in order to fully understand how to operate it correctly. This cooker must be installed by a competent engineer. Please allow the installer to view the installation section of this manual. -
Page 7: Product Overview
Product Overview Front View Top Oven Door Handle Control Panel Oven Shelf Grill Tray Main Oven Door Top Oven Door Adjustable Feet Top View Large Ceramic Heater 1700W Hot Hob Warming Light Small Ceramic Heater 1200W * All images are for indication only; please refer to your individual unit for actual item. LFTC50W12_IB.indd 7 05/12/2014 14:39... -
Page 8: Control Panel
Control Panel Grill Control Grill Indicator Lamp Oven Control Oven Indicator Lamp Ceramic Heater Controls Hob Indicator Lamp Before Using Your Cooker Before using your new cooker, please: • Make sure all the controls are turned off. • Read this Instruction/Installation Manual, taking special note of the 'Safety Warnings' section. •... -
Page 9: Using Your Hob
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. • The heated areas will be seen to switch on and off even when higher heat settings are used. This is due to a safety device, which prevents the glass from overheating. Some switching on and off when cooking at high temperatures is quite normal, causes no damage to the hob and little delay in cooking times. -
Page 10: First Time Use Of The Oven
First Time Use of the Oven Ensure that nothing has been left in the oven. Remove any insert cards or plastic bags. Before connecting the power, use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using. -
Page 11: Using The Oven Control
Using the Oven Control Function Description Defrost Function Defrost function can be started by placing the frozen food into your oven and turning the oven control to the defrost sign or below. Ensure the oven light does not illuminate as this will activate the elements and start the cooking process. -
Page 12: Using The Grill
Using the Grill Before using the Grill for the first time, heat the grill on maximum for 15 ~ 20 minutes. There may be a little smoke and odour upon initial start up (for about 10 mins). This is normal. It is due to the protective substance on the heating elements which protects the cooker from the effects of corrosion during shipping from the factory. -
Page 13: General Advice
General Advice Before you start cleaning your cooker, please: • Read the cleaning instructions and the ‘Safety Warnings’ sections. • Turn the cooker off at the mains socket. • Allow the cooker to completely cool down before cleaning and disconnect the appliance from the electrical supply. -
Page 14: Cleaning The Cooker Door Glass
Cleaning the Cooker Door Glass Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they may scratch the surface, which could result in the glass shattering. Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter. -
Page 15: Replacing The Oven Lamp
Lift the door slightly. The notch on the bottom of the hinge will disengage. Now pull the oven door forwards off the appliance. Releasing both hinge sections from the slots. To replace the door, repeat the above steps in reverse order. Replacing the Oven Lamp Ensure that the cooker is switched off before replacing the lamp to avoid the possibility of an electric shock. -
Page 16: Hints And Tips
Hints and Tips Problem Possible Causes What To Do The cooker cannot be No power. Make sure the cooker is connected turned on. to the mains socket and the socket is switched on. Check whether there is a power outage in your home or area. -
Page 17: Product Fiche And Specifications
Product Fiche and Specifications Brand Logik Model LFTC50W12 Product Type Electric Cooker Mass of the appliance 42 Kg Grill ( upper cavity) Heat Source Electric Volume 31 litres Main Oven ( lower cavity) Energy Efficiency Index - Conventional 103.7 Enegy Class Energy Consumption (electricity) - 0.81 kWh/cycle... -
Page 18: Energy Saving Tips And Energy Label
Energy Saving Tips and Energy Label Main Oven • Cook the meals togeter, if possible. • Keep the pre-heating time short. • Do not elongate cooking time. • Do not forget to turn off the oven at the end of cooking. •... -
Page 19: Installation
Installation • The cooker must be installed by a competent person, if in doubt consult a qualified technician, and in compliance with local electrical, safety and building regulation standards. • If the cooker is installed adjacent to furniture which is higher than the hob, a gap of at least 100 mm must be left between the side of the cooker and the furniture unless non-combustible materials (e.g., ceramic tiles, metal splashback, etc.) are used which then allows this distance to be reduced to 20 mm. -
Page 20: Adjusting The Feet
Adjusting the Feet Using the fitted adjustable feet is MANDATORY. For safety reasons and to ensure adequate ventilation, the cooker chassis MUST NOT sit directly on the floor, a plinth, or other support surface. The cooker stands on 4 levelling legs. As the levelling legs are adjusted at lower position, it is required to control whether the product is levelled before operating it. -
Page 21: Electrical Connection
Electrical Connection Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after you complete the connection at the junction box. - Page 22 LFTC50W12_IB.indd 22 05/12/2014 14:39...
- Page 23 LFTC50W12_IB.indd 23 05/12/2014 14:39...
- Page 24 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Limited (Registered in England No. 504877) Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK IB-LFTC50W12-141205V1 LFTC50W12_IB.indd 24 05/12/2014 14:39...
