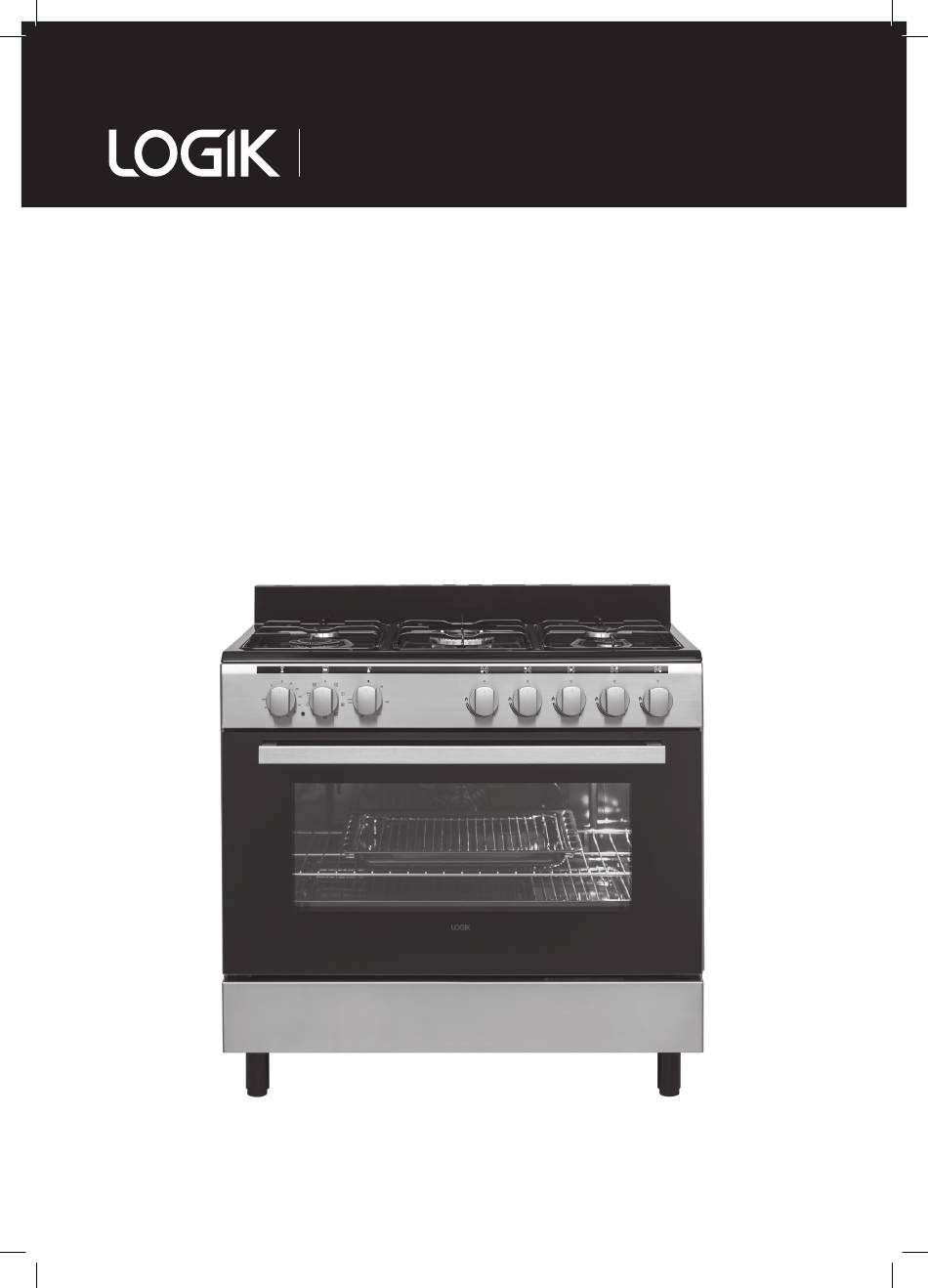

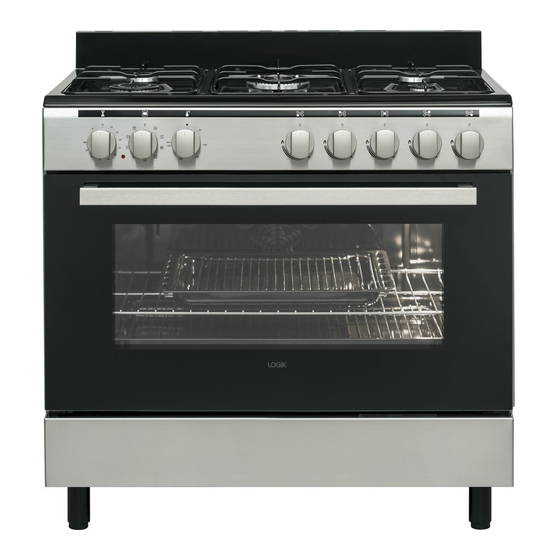

- Page 1 Instruction Manual 90cm Dual Fuel Range Cooker LFTG90B17, LFTG90X17 Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 1 25/08/2017 16:14...
-
Page 2: Table Of Contents
Removing the Oven Door ......................23 Hints and Tips ..........................24 Replacing the Oven Lamp ......................25 Installation ..........................26 Adjusting the Feet ........................27 Moving the Cooker ........................27 Stability Bracket ......................... 27 Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 2 25/08/2017 16:14... - Page 3 Adjusting the Reduced Flame Position ......................30 Injector Size Table ........................31 Electrical Connection ......................... 32 Energy Saving Tips and Energy Label ..................33 Product Fiche and Specifications ....................34 Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 3 25/08/2017 16:14...
-
Page 4: Safety Warnings
Ensure that the kitchen is well ventilated especially when the appliance is in use. Keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 4 25/08/2017 16:15... - Page 5 • Do not use steam cleaners for cleaning the appliance. • Do not rest any items on the open door and do not let children climb on or stand on it. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 5 25/08/2017 16:15...
- Page 6 • This appliance is not designed to be used with hob guards. Use of inappropriate hob guards can cause accidents. • The inside surface of storage compartment may be hot during use. Care should be taken to avoid touching inside surfaces. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 6 25/08/2017 16:15...
-
Page 7: Unpacking
Thank you on the purchase of your new Logik Dual Fuel Range Cooker. You must read this manual in order to fully understand how to operate it correctly. This unit MUST be installed by a competent and registered engineer (Gas Safe in the UK). -
Page 8: Product Overview
Oven Temperature Control Back Right Hob Control Front Left Hob Control Front Right Hob Control * All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 8 25/08/2017 16:15... -
Page 9: Oven
Oven Door Oven Shelves Storage Flap Deep Baking Pan Shelf The inside surface of storage compartment may be hot during use. Care should be taken to avoid touching inside surfaces. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 9 25/08/2017 16:15... -
Page 10: Before Using The Hob
* All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 10 25/08/2017 16:15... -
Page 11: Flame Failure Safety Feature
5 – 10 seconds after the burner has lit. Releasing the controls too soon will extinguish the flame. Adjust the controls as required. * All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 11 25/08/2017 16:15... -
Page 12: Cookware Guidelines
• Minimise the amount of liquid or fat to reduce cooking times. • Select the proper temperature setting for the cooking task. * All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 12 25/08/2017 16:15... -
Page 13: Oven Control
Preheating the oven for 10 minutes is recommended and it is best to cook on only one shelf at a time. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 13 25/08/2017 16:15... - Page 14 190°C. • You must leave a gap of at least 30mm between the grill element and the top of the food that you are grilling when using the grill. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 14 25/08/2017 16:15...
-
Page 15: Using The Oven
Once past this stop the shelf can be placed level again. • To remove, completely angle the shelf upward so the shelf stop is cleared from the guide stop. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 15 25/08/2017 16:15... -
Page 16: Preheating
If a cake collapses after removing it from the oven: • Use less liquid on your next attempt. • Consider using a longer baking time or use a slightly lower temperature setting. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 16 25/08/2017 16:15... -
Page 17: Cooking With The Grill
Insert an oven shelf at your desired level, the closer to the elements the more intense the heat with be. There must be at least 30 mm between the food and the element. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 17 25/08/2017 16:15... - Page 18 • Accessible parts may become hot when in use. Children should be kept away. • Do not leave the handle in position when grilling. If the handle is left in position when grilling, it will get very hot. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 18 25/08/2017 16:15...
-
Page 19: Using The Storage Compartment
Open the storage compartment from either side. The compartment door is sprung loaded so take care when opening and closing the door. It could snap closed and trap your fingers. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 19 25/08/2017 16:15... -
Page 20: Cleaning And Maintenance
• Clean the ignitor and probe carefully, using a toothbrush. Every year • Contact your local authorized gas Service Agent to perform a thorough check on all gas components on the gas hob. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 20 25/08/2017 16:15... -
Page 21: Burner Parts And Pan Supports
If you have problems with the hob controls (gas taps), call your Authorised Service Centre. These parts are not user serviceable. * All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 21 25/08/2017 16:15... -
Page 22: Cleaning Instructions
Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 22 25/08/2017 16:15... -
Page 23: Cleaning The Inside Of Your Cooker
Push forward the swivel retainers to the original position and gently close the door. If the door does not close properly, repeat the steps again. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 23 25/08/2017 16:15... -
Page 24: Hints And Tips
• Ensure you have power to your house, you could be experiencing a power cut. to the oven • Ensure the timer is set to a time or ‘M’ (manual setting). Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 24 25/08/2017 16:15... -
Page 25: Replacing The Oven Lamp
Oven Lamp • Unscrew and replace the bulb with a new one suitable for high temperatures (300°C). • Refit the protective cover. Bulb specifications 230V~ 50 Hz, 25W, E14 Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 25 25/08/2017 16:15... -
Page 26: Installation
X : 50mm for combustible materials 20mm for non-combustible materials. * All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 26 25/08/2017 16:15... -
Page 27: Adjusting The Feet
The supplied stability bracket or a recognized cooker stability device MUST be fitted. You can connect a stability chain to ...or connect the supplied any of the screws shown here... stability bracket. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 27 25/08/2017 16:15... -
Page 28: Ventilation Requirements
• Gas Safety (Installation and Use) Regulations • Building Regulations • British Standards (BS 5440, BS 6172 and BS 6891) • Regulations for Electrical Installation (BS 7671, (Latest Edition)) Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 28 25/08/2017 16:15... -
Page 29: Gas Connection
The presence of bubbles will indicate a leak. If there is a leak, tighten the fitting and then recheck for leaks. Do not use a naked flame to test for leaks. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 29 25/08/2017 16:15... -
Page 30: Replacement Of Burner Injectors
When the flame has a length of at least 4mm, the gas is well distributed. Make sure that the flame does not die out when passing from the maximum position to the minimum position. Create an artificial wind with your hand toward the flame to see if the flames are stable. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 30 25/08/2017 16:15... -
Page 31: Injector Size Table
• All intervention regarding installation maintenance and conversion of the appliance must be fulfilled with original factory parts. • The manufacturer declines any liability if these correct parts are not used. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 31 25/08/2017 16:15... -
Page 32: Electrical Connection
Heat resistant sleeving or high temperature cables. * All images are for indication only; please refer to your individual unit for actual item. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 32 25/08/2017 16:15... -
Page 33: Energy Saving Tips And Energy Label
• Use the correct sized cookware for the cooking zone being used. • Use a lid on your cookware. • Minimize the amount of liquid or fat used. • When liquids start boiling reduce the heat. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 33 25/08/2017 16:15... -
Page 34: Product Fiche And Specifications
Heating Zone(s) - Multi Ring x1 Heating Technology Energy Consumption Energy Efficiency of Hob 57.8% The Hob complies with EN 30-2-1 Features and specifications are subject to change without prior notice. Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 34 25/08/2017 16:15... - Page 35 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-LFTG90B17/X17-170825V1 Logik 90cm Dual Fuel Range Cooker LFTG90B17_X17 Manual.indd 35 25/08/2017 16:15...
