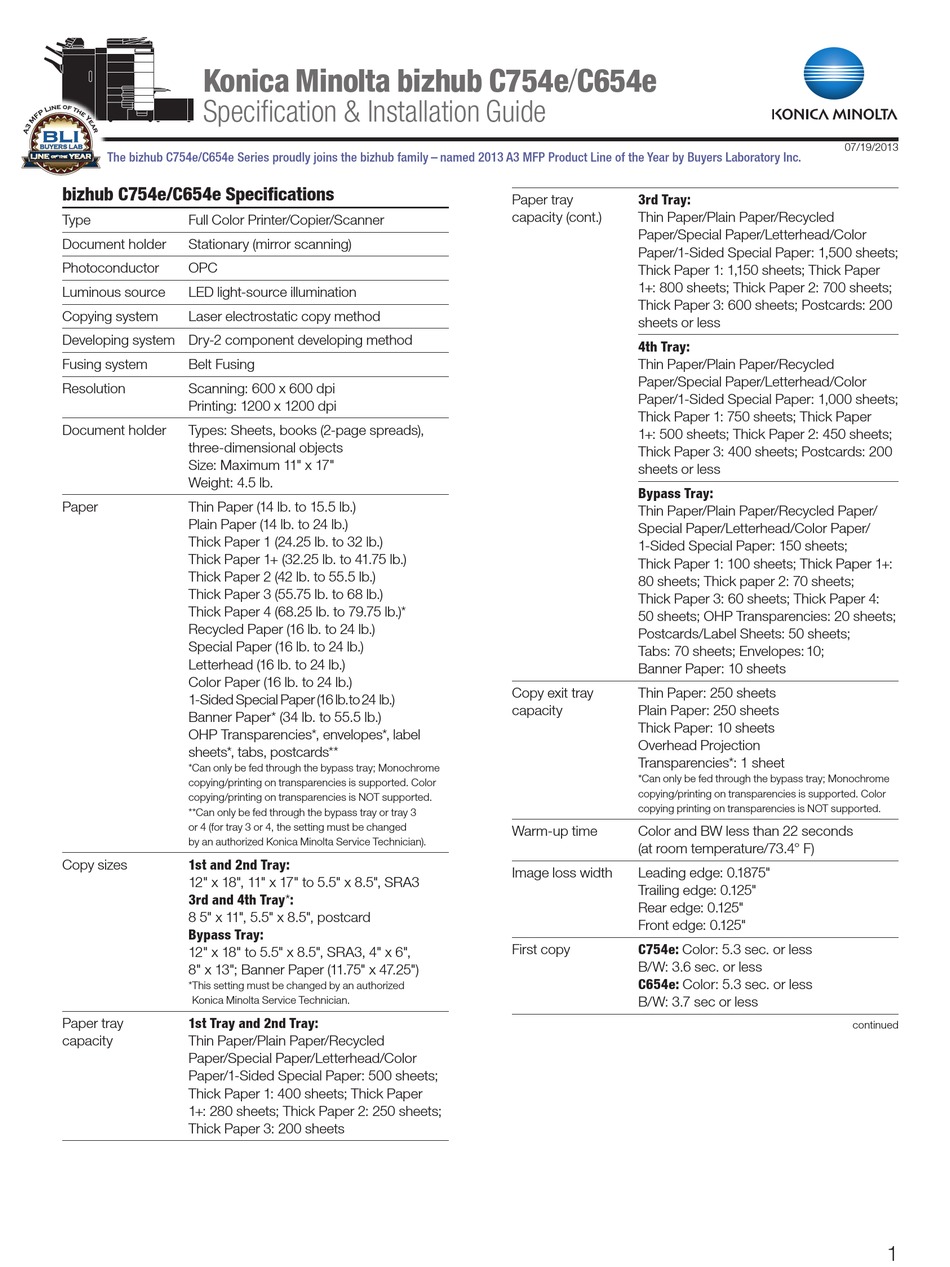

Konica Minolta bizhub C754e Specification & Installation Manual

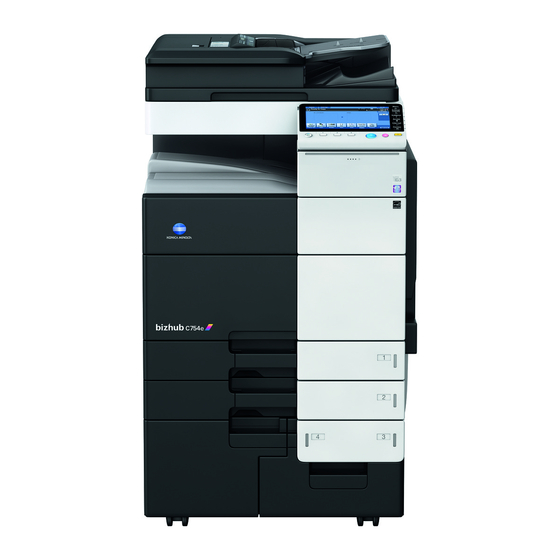

Konica Minolta bizhub C754e/C654e
Specification & Installation Guide
The bizhub 754 proudly joins
the bizhub family – named 2013
A3 MFP Product Line of the Year
The bizhub C754e/C654e Series proudly joins the bizhub family – named 2013 A3 MFP Product Line of the Year by Buyers Laboratory Inc.
by Buyers Laboratory Inc.
bizhub C754e/C654e Specifications
Type Full Color Printer/Copier/Scanner
Document holder Stationary (mirror scanning)
Photoconductor OPC
Luminous source LED light-source illumination
Copying system Laser electrostatic copy method
Developing system Dry-2 component developing method
Fusing system Belt Fusing
Resolution Scanning: 600 x 600 dpi
Printing: 1200 x 1200 dpi
Document holder Types: Sheets, books (2-page spreads),
three-dimensional objects
Size: Maximum 11" x 17"
Weight: 4.5 lb.
Paper Thin Paper (14 lb. to 15.5 lb.)
Plain Paper (14 lb. to 24 lb.)
Thick Paper 1 (24.25 lb. to 32 lb.)
Thick Paper 1+ (32.25 lb. to 41.75 lb.)
Thick Paper 2 (42 lb. to 55.5 lb.)
Thick Paper 3 (55.75 lb. to 68 lb.)
Thick Paper 4 (68.25 lb. to 79.75 lb.)*
Recycled Paper (16 lb. to 24 lb.)
Special Paper (16 lb. to 24 lb.)
Letterhead (16 lb. to 24 lb.)
Color Paper (16 lb. to 24 lb.)
1-Sided Special Paper (16 lb. to 24 lb.)
Banner Paper* (34 lb. to 55.5 lb.)
OHP Transparencies*, envelopes*, label
sheets*, tabs, postcards**
*Can only be fed through the bypass tray; Monochrome
copying/printing on transparencies is supported. Color
copying/printing on transparencies is NOT supported.
**Can only be fed through the bypass tray or tray 3
or 4 (for tray 3 or 4, the setting must be changed
by an authorized Konica Minolta Service Technician).
Copy sizes 1st and 2nd Tray:
12" x 18", 11" x 17" to 5.5" x 8.5", SRA3
3rd and 4th Tray*:
8 5" x 11", 5.5" x 8.5", postcard
Bypass Tray:
12" x 18" to 5.5" x 8.5", SRA3, 4" x 6",
8" x 13"; Banner Paper (11.75" x 47.25")
* This setting must be changed by an authorized
Konica Minolta Service Technician.
1st Tray and 2nd Tray:
Paper tray
capacity Thin Paper/Plain Paper/Recycled
Paper/Special Paper/Letterhead/Color
Paper/1-Sided Special Paper: 500 sheets;
Thick Paper 1: 400 sheets; Thick Paper
1+: 280 sheets; Thick Paper 2: 250 sheets;
Thick Paper 3: 200 sheets
Paper tray 3rd Tray:
capacity (cont.) Thin Paper/Plain Paper/Recycled
Paper/Special Paper/Letterhead/Color
Paper/1-Sided Special Paper: 1,500 sheets;
Thick Paper 1: 1,150 sheets; Thick Paper
1+: 800 sheets; Thick Paper 2: 700 sheets;
Thick Paper 3: 600 sheets; Postcards: 200
sheets or less
4th Tray:
Thin Paper/Plain Paper/Recycled
Paper/Special Paper/Letterhead/Color
Paper/1-Sided Special Paper: 1,000 sheets;
Thick Paper 1: 750 sheets; Thick Paper
1+: 500 sheets; Thick Paper 2: 450 sheets;
Thick Paper 3: 400 sheets; Postcards: 200
sheets or less
Bypass Tray:
Thin Paper/Plain Paper/Recycled Paper/
Special Paper/Letterhead/Color Paper/
1-Sided Special Paper: 150 sheets;
Thick Paper 1: 100 sheets; Thick Paper 1+:
80 sheets; Thick paper 2: 70 sheets;
Thick Paper 3: 60 sheets; Thick Paper 4:
50 sheets; OHP Transparencies: 20 sheets;
Postcards/Label Sheets: 50 sheets;
Tabs: 70 sheets; Envelopes: 10;
Banner Paper: 10 sheets
Copy exit tray Thin Paper: 250 sheets
capacity Plain Paper: 250 sheets
Thick Paper: 10 sheets
Overhead Projection
Transparencies*: 1 sheet
*Can only be fed through the bypass tray; Monochrome
copying/printing on transparencies is supported. Color
copying printing on transparencies is NOT supported.
Warm-up time Color and BW less than 22 seconds
(at room temperature/73.4° F)
Image loss width Leading edge: 0.1875"
Trailing edge: 0.125"
Rear edge: 0.125"
Front edge: 0.125"
First copy C754e: Color: 5.3 sec. or less
B/W: 3.6 sec. or less
C654e: Color: 5.3 sec. or less
B/W: 3.7 sec or less
07/19/2013
continued
1
