Applied Machines: C754e/C654e/C754/C654/C554e/C454e/C364e/C284e/C224e/C554/C454/C364/C284/C224/
C368/C308/754e/654e/754/654/554e/454e/364e/284e/224e/367/287/227
COLOR MFP: 75 ppm/65 ppm/55 ppm/45 ppm/36 ppm/30 ppm/28 ppm/22 ppm
MFP: 75 ppm/65 ppm/55 ppm/45 ppm/36 ppm/28 ppm/22 ppm
Product Code: A2X0/A2X1/A5AY/A5C0/A5C1/A5C2/A5C4/A2XK/A4FJ/A161/A4FK/A4FM/A7PU/A7PY/A55V/
A5YN/A61D/A61E/A61F/A61G/A61H/A789/A7AH/A7AK

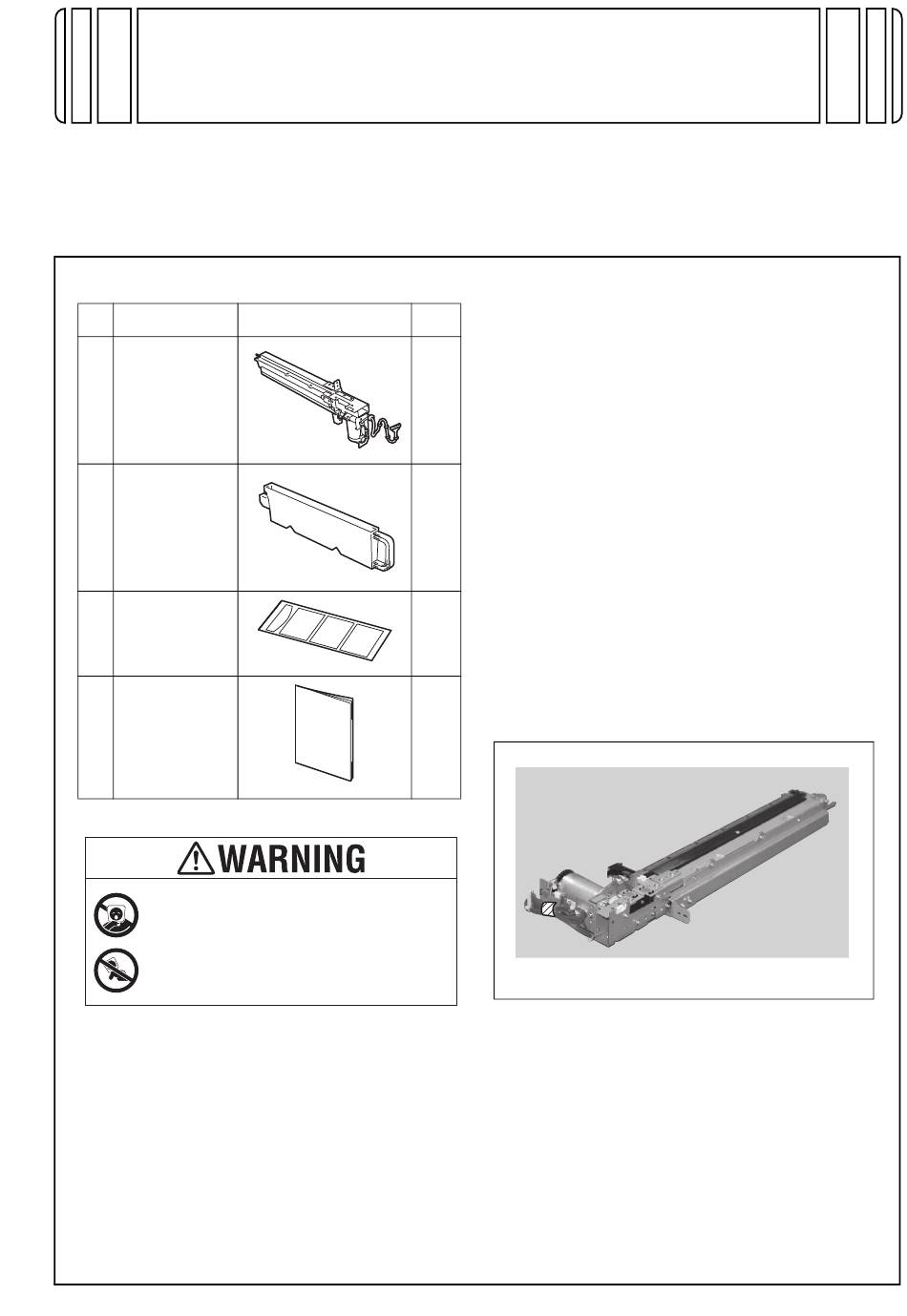

1. Accessory parts
No.
Name
1. Punch unit
2. Punch box
3. Label
4. Installation
manual
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
PK-520
INSTALLATION MANUAL
Shape
Q'ty
1
1
1
1
set
Punch Kit
Note:
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
2. Installation procedures
Note:
When mounting the punch kit, mount it before
mounting the finisher to the machine.
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Remove the protective tape.
E-1
A3ET-9550-01
