Pro-Form 405 fit ble User Manual page 9

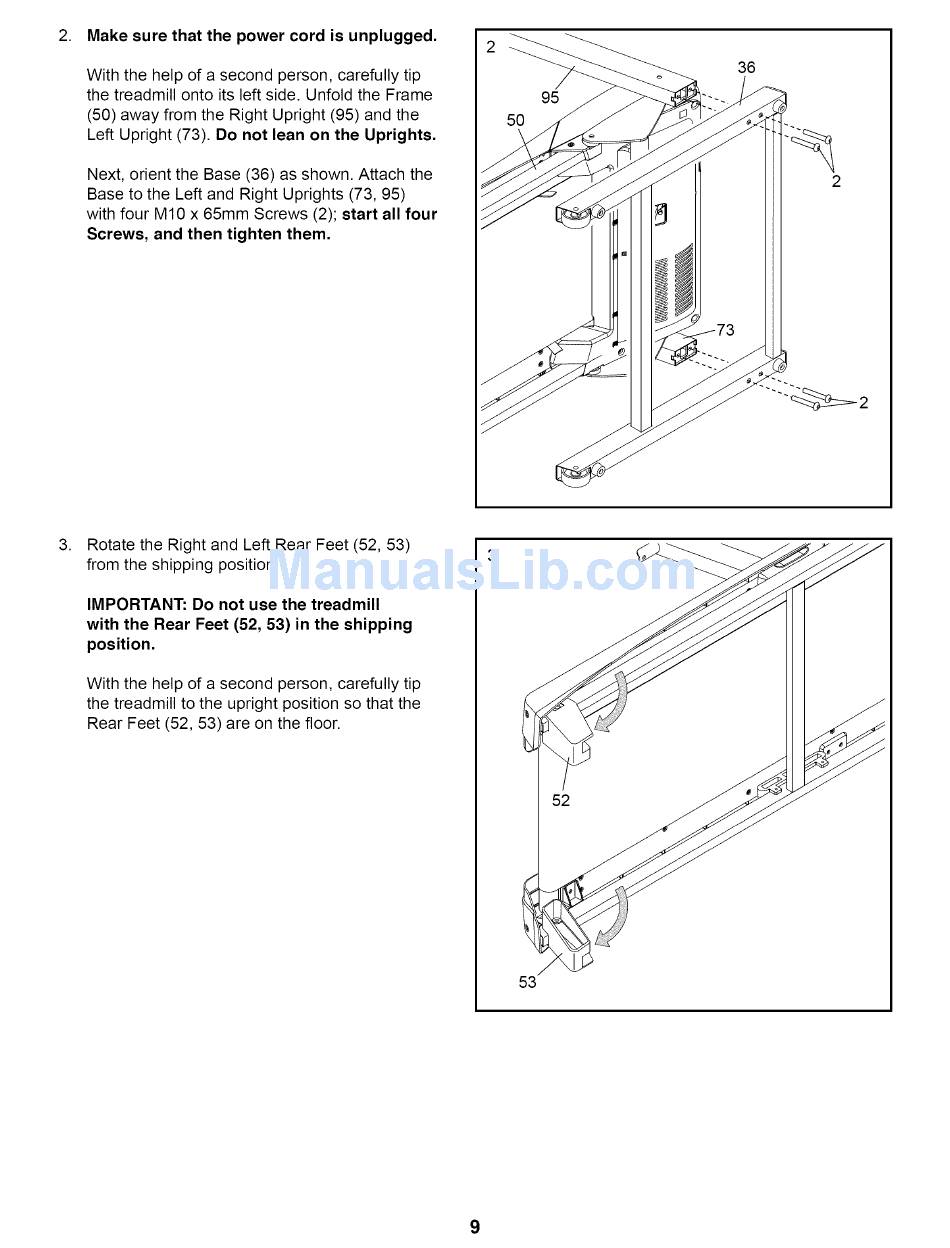

2. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Unfold the Frame
(50) away from the Right Upright (95) and the
Left Upright (73). Do not lean on the Uprights.
Next, orient the Base (36) as shown. Attach the
Base to the Left and Right Uprights (73, 95)
with four M10 x 65mm Screws (2); start all four
Screws, and then tighten them.
5O
95
36
2
..... _2
,
Rotate the Right and Left Rear Feet (52, 53)
from the shipping position.
IMPORTANT: Do not use the treadmill
with the Rear Feet (52, 53) in the shipping
position.
With the help of a second person, carefully tip
the treadmill to the upright position so that the
Rear Feet (52, 53) are on the floor.
53
9
