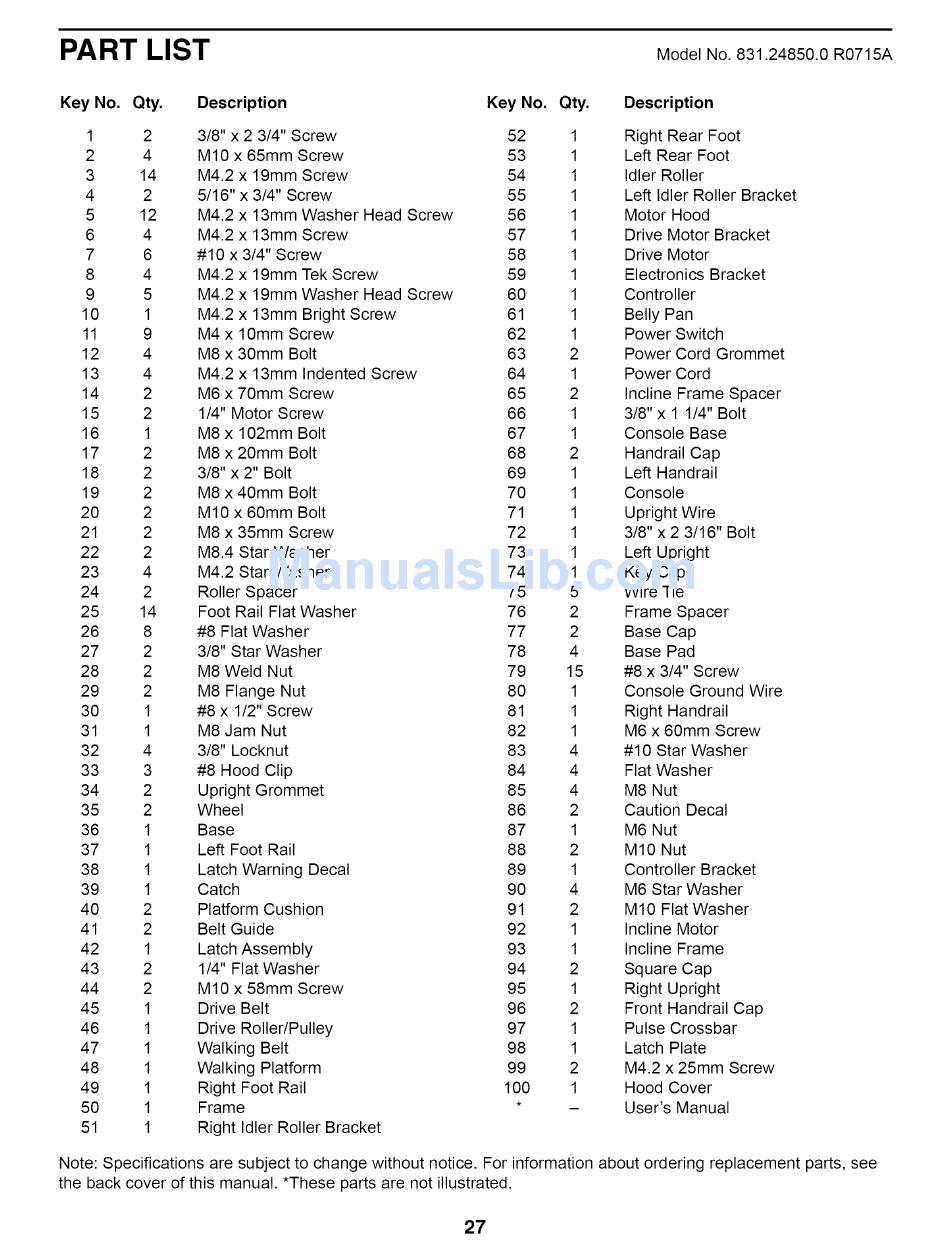

PART LIST
Model No. 831.24850.0 R0715A
Key No. Qty.
Description
Key No. Qty.
Description
1
2
3/8" x 2 3/4" Screw
52
1
Right Rear Foot
2
4
M10 x 65mm Screw
53
1
Left Rear Foot
3
14
M4.2 x 19mm Screw
54
1
Idler Roller
4
2
5/16" x 3/4" Screw
55
1
Left Idler Roller Bracket
5
12
M4.2 x 13mm Washer Head Screw
56
1
Motor Hood
6
4
M4.2 x 13mm Screw
57
1
Drive Motor Bracket
7
6
#10 x 3/4" Screw
58
1
Drive Motor
8
4
M4.2 x 19mm Tek Screw
59
1
Electronics Bracket
9
5
M4.2 x 19mm Washer Head Screw
60
1
Controller
10
1
M4.2 x 13mm Bright Screw
61
1
Belly Pan
11
9
M4 x 10mm Screw
62
1
Power Switch
12
4
M8 x 30mm Bolt
63
2
Power Cord Grommet
13
4
M4.2 x 13mm Indented Screw
64
1
Power Cord
14
2
M6 x 70mm Screw
65
2
Incline Frame Spacer
15
2
1/4" Motor Screw
66
1
3/8" x 1 1/4" Bolt
16
1
M8 x 102mm Bolt
67
1
Console Base
17
2
M8 x 20mm Bolt
68
2
Handrail Cap
18
2
3/8" x 2" Bolt
69
1
Left Handrail
19
2
M8 x 40mm Bolt
70
1
Console
20
2
M10 x 60mm Bolt
71
1
Upright Wire
21
2
M8 x 35mm Screw
72
1
3/8" x 2 3/16" Bolt
22
2
M8.4 Star Washer
73
1
Left Upright
23
4
M4.2 Star Washer
74
1
Key/Clip
24
2
Roller Spacer
75
5
Wire Tie
25
14
Foot Rail Flat Washer
76
2
Frame Spacer
26
8
#8 Flat Washer
77
2
Base Cap
27
2
3/8" Star Washer
78
4
Base Pad
28
2
M8 Weld Nut
79
15
#8 x 3/4" Screw
29
2
M8 Flange Nut
80
1
Console Ground Wire
30
1
#8 x 1/2" Screw
81
1
Right Handrail
31
1
M8 Jam Nut
82
1
M6 x 60mm Screw
32
4
3/8" Locknut
83
4
#10 Star Washer
33
3
#8 Hood Clip
84
4
Flat Washer
34
2
Upright Grommet
85
4
M8 Nut
35
2
Wheel
86
2
Caution Decal
36
1
Base
87
1
M6 Nut
37
1
Left Foot Rail
88
2
M10 Nut
38
1
Latch Warning Decal
89
1
Controller Bracket
39
1
Catch
90
4
M6 Star Washer
40
2
Platform Cushion
91
2
M10 Flat Washer
41
2
Belt Guide
92
1
Incline Motor
42
1
Latch Assembly
93
1
Incline Frame
43
2
1/4" Flat Washer
94
2
Square Cap
44
2
M10 x 58mm Screw
95
1
Right Upright
45
1
Drive Belt
96
2
Front Handrail Cap
46
1
Drive Roller/Pulley
97
1
Pulse Crossbar
47
1
Walking Belt
98
1
Latch Plate
48
1
Walking Platform
99
2
M4.2 x 25mm Screw
49
1
Right Foot Rail
100
1
Hood Cover
50
1
Frame
*
-
User's Manual
51
1
Right Idler Roller Bracket
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
