Pro-Form 405 fit ble User Manual page 12

,

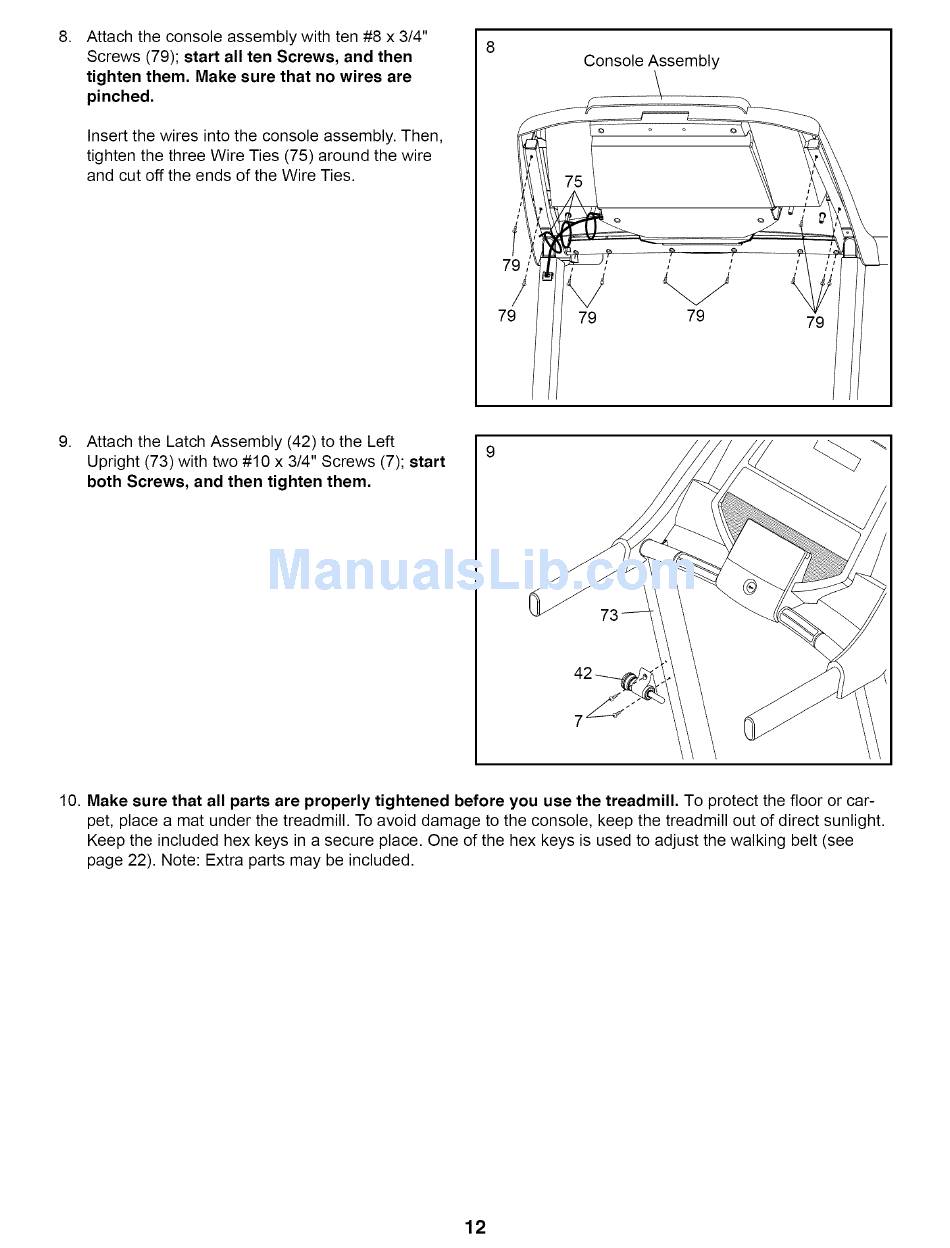

Attach the console assembly with ten #8 x 3/4"
Screws (79); start all ten Screws, and then
tighten them. Make sure that no wires are
pinched.
Insert the wires into the console assembly. Then,
tighten the three Wire Ties (75) around the wire
and cut off the ends of the Wire Ties.
Console Assembly
_
\
79
,
Attach the Latch Assembly (42) to the Left
Upright (73) with two #10 x 3/4" Screws (7); start
both Screws, and then tighten them.
10. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or car-
pet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight.
Keep the included hex keys in a secure place. One of the hex keys is used to adjust the walking belt (see
page 22). Note: Extra parts may be included.
12
