Summary of Contents for Ipevo iZiggi-HD

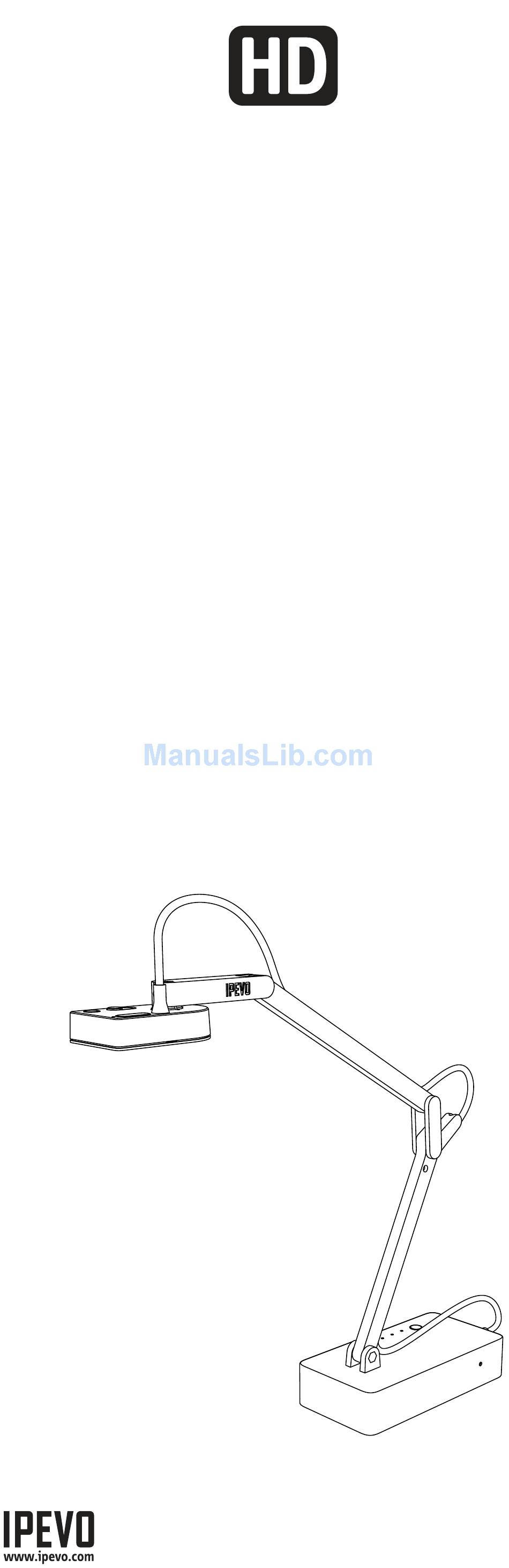

- Page 1 iZiggi Wireless Document Camera User Manual iZiggi...
-
Page 3: Table Of Contents
Setting Up Your iZiggi-HD ............. 4 Using iZiggi-HD with IPEVO Apps/Software ........6 Accessing iZiggi-HD’s Settings ............9 Connecting to the Internet with iZiggi-HD ........10 Using iZiggi-HD for Data Sharing ..........11 Setting Up Password Protection for Live View and WiFi ....11 Customizing Login Information............. -
Page 4: Package Contents
PC or Mac.* • Annotate and emphasize teaching material on iPad by drawing directly on the live feed with the free IPEVO Presenter (for iPad) or IPEVO Whiteboard. • Take advantage of iZiggi-HD’s dual USB ports. Stream live images from... -
Page 5: Getting To Know Your Iziggi-Hd
Exposure toggle • Exposure toggle: Provides on-the-fly exposure customization. • LED: If iZiggi-HD is on and providing an image, this LED will turn white. • Microphone: iZiggi-HD comes with a built-in microphone which is located on the underside of the camera body next to the lens. The microphone is on when iZiggi-HD is on. - Page 6 • Power button: Press once to turn on iZiggi-HD. Another press will power off the device. IPEVO Presenter (for iPad) / • USB ports: Two USB ports for the iZiggi-HD camera and for a USB stor- IPEVO Whiteboard age drive, if desired.
-
Page 7: Setting Up Your Iziggi-Hd
Connect the other end of the Micro-USB cable to the Micro-USB port on iZiggi-HD. 2. When iZiggi-HD is charging, the “PWR” LED will turn red. This light will go off once iZiggi-HD is fully charged by performing step 1. Note that iZiggi-HD is ready for use when power adapter is connected, regardless of the battery power status. -
Page 8: Usb Cable
0123456789ab Caution: IPEVO_NB 9:04 AM Apple Network ad1d70 On first time connection, it will take about 1 minute to link iPad and iZiggi-HD. Please 25123B01234 Apple Network ad1d70 Wi-Fi: Searching for Internet make sure the appears on the top left corner of iPad before launching IPEVO... -
Page 9: Using Iziggi-Hd With Ipevo Apps/Software
Follow these steps to connect IPEVO Presenter (for iPad) and iZiggi-HD: Apple Network 70 1. Connect your iPad to iZiggi-HD’s SSID. Refer to Section D on page 5. 2. Launch IPEVO Presenter (for iPad). 3. Tap on the “Select Video Device” menu and choose iZiggi-HD as the device. - Page 10 1. Connect your iPad to iZiggi-HD’s SSID. Refer to Section D on page 5. 2. Launch IPEVO Whiteboard. Annotation Functions Snapshots and Videos 3. Tap on the “Live View” icon and the live view coming from the iZiggi-HD will appear on your iPad. Annotation Functions Live View...
- Page 11 2. Select your iZiggi-HD as the device under the “Select Video Device” menu. Select Video Device Please note: When connecting iZiggi-HD to your computer via USB mode, please do not repeatedly plug and unplug it when viewing the live view as this may cause the iZiggi-HD to suffer a system error.
-
Page 12: Accessing Iziggi-Hd's Settings
1. Live View On Mac or PC 1. Launch your browser and connect to the IP address of iZiggi-HD by Enter IP address typing it into the address bar. The default for this IP address is 10.10.10.1. -
Page 13: Connecting To The Internet With Iziggi-Hd
Internet through iZiggi-HD. Please note: If you are not returned to the iZiggi-HD’s Settings page after the 100 second count- down, please reconnect your device to iZiggi-HD by going to Settings > Wi-Fi >... -
Page 14: Using Iziggi-Hd For Data Sharing
Using iZiggi-HD for Data Sharing iZiggi-HD’s two USB ports allow you to connect, and to view and share videos, music, photo and other files on an external USB storage drive via your browser. To take advantage of this feature, simply connect a USB storage drive to either USB port on iZiggi-HD’s base. -
Page 15: Customizing Login Information
You should connect the power adapter immediately. Red: iZiggi-HD is powered off and charging. 2. USB 1 and USB 2 — Corresponds to the two USB ports on iZiggi-HD’s base. If a USB device is connected, such as iZiggi-HD’s camera or a storage drive, the corresponding LED will turn green. -
Page 16: Using Iziggi-Hd Directly On Your Computer
Follow these steps to project live action from iZiggi-HD using Apple TV iPad Apple TV Airplay: 1. Connect your Apple TV device to iZiggi-HD. Navigate to Settings > Wi-Fi. PC or Mac Charging Time Usage Time Remaining 2. A list of available wireless networks will appear. Select iZiggi-HD’s... -
Page 17: Faq
Enter the IP Address, Subnet Mask, Default Gateway and other settings in their respective fields, and click OK. • How long does it take to fully charge iZiggi-HD? How long can I use iZiggi-HD if it is not fully charged? iZiggi-HD If iZiggi-HD’s battery is depleted, it takes about 3 hours to fully recharge... -
Page 18: Troubleshooting
Troubleshooting • I am not able to see a live image from iZiggi-HD on IPEVO Presenter (for iPad) or IPEVO Whiteboard. • Make sure the camera is connected to the USB port of iZiggi-HD’s base. • Make sure your device is connected to iZiggi-HD via Wi-Fi. Follow the steps starting on Page 5. - Page 19 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Model: iZiggi-HD/FCC ID: WKP-CDVW-01IP This device complies with Part 15 of the FCC Rules. Operation is subject to the...
- Page 20 © 2015 IPEVO inc. All rights reserved. IPEVO, iZiggi-HD, the IPEVO logo and other IPEVO marks are owned by IPEVO inc. and may be registered. All other trademarks are the property of their respective owners. Customer Service (USA) Customer Service (International) Email: cs@ipevo.com...
