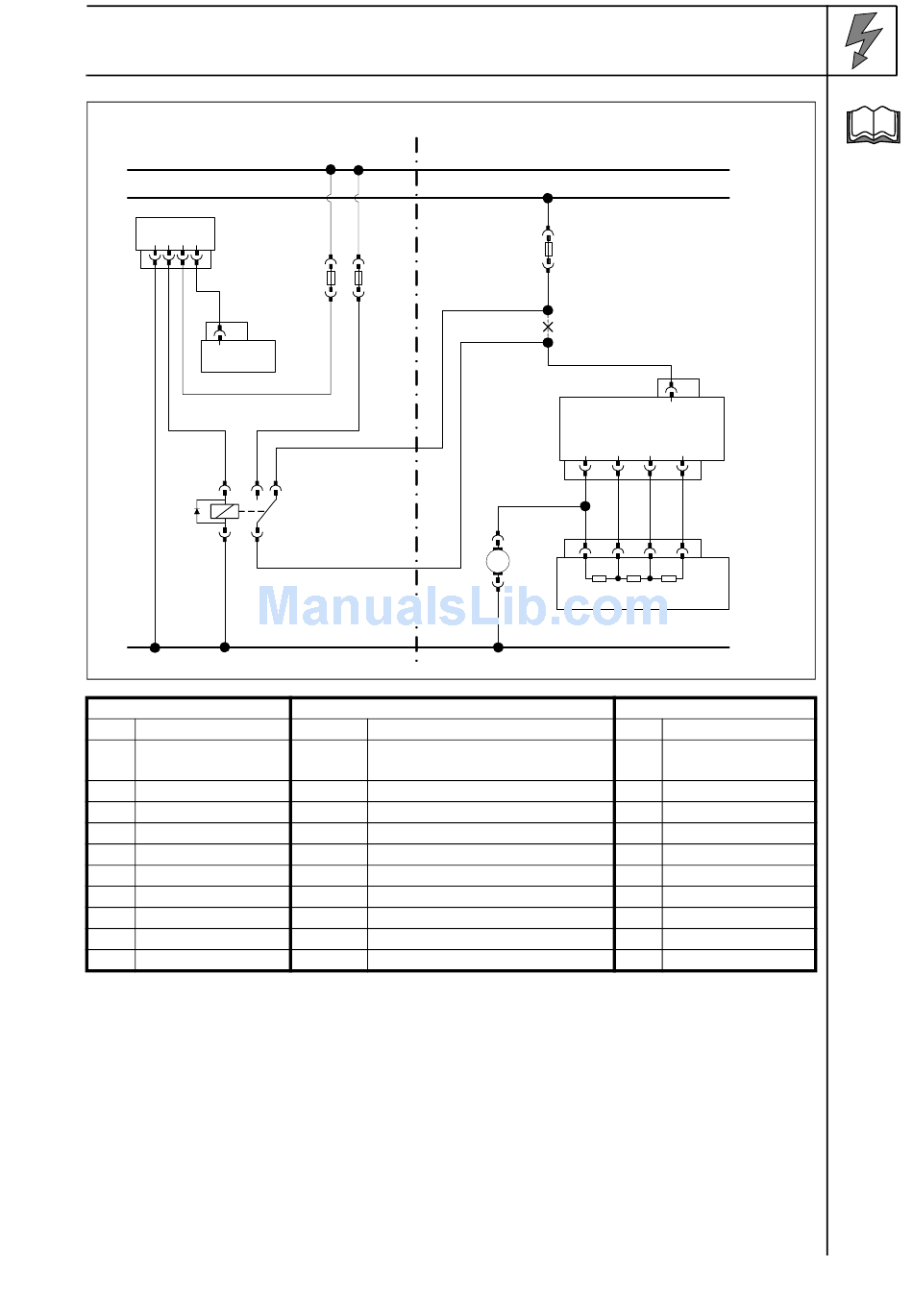

Webasto components
HG
TT-V heater unit
X1
6-pin connector
F1
1 A fuse
F2
Fuse 40A
K3
Fan relay
VWU Digital timer
rt/sw
F1
F2
rt/sw
rt/ge
rt
87a
K3
30
sw
VW Passat components
SC41
40 A fan fuse
KB
Control unit for air conditioning -
J301
WG
Resistor group - N24
GM
Fan motor - V2
T....
Plug connections
VW Passat Climatic
SC41
rt/sw
rt/sw
KB
4
1
rt/sw
+
1
4
GM
M
-
br
Colors and symbols
rt
ws
sw
br
ge
X
VW Passat
30
15
T5
5
2
3
T5
T4r
2
3
WG
31
red
white
black
brown
yellow
Cutting point
i
Climatic
wiring
diagram
Legend
