Splicing; How To Protect The Splice; Heating Procedure - INNO VIEW 5 User Manual

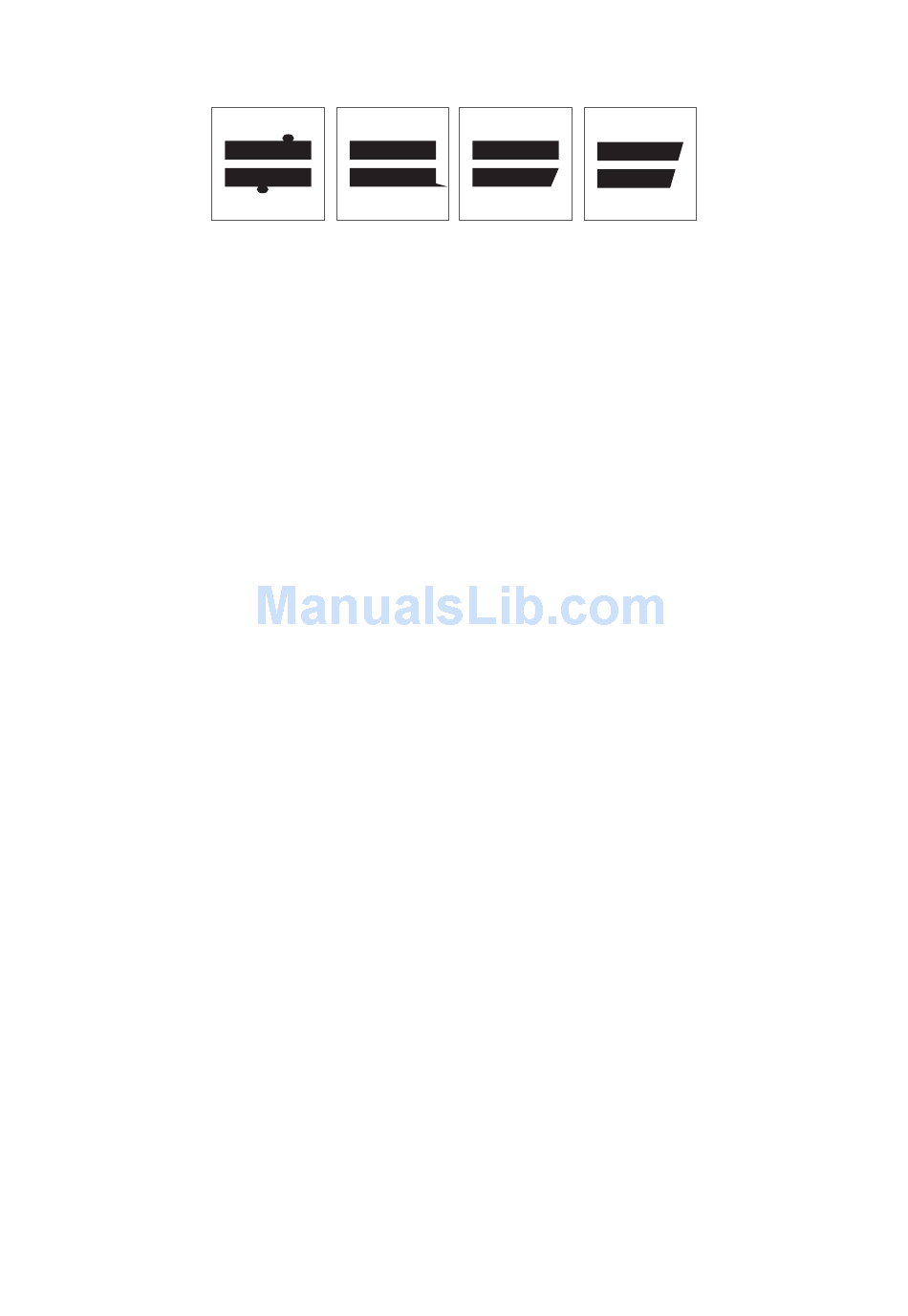

Dust on fiber
Note: The fibers are checked automatically when you press "Set" button. The
splicer automatically focuses the fibers and checks for damage or dust particles.

Splicing

Select any appropriate splice mode.
•
Start splicing by pressing [SET] button.
•
Note: If the splicer is set as "Auto mode", splicing will start automatically once
the windproof cover is closed.

How to protect the splice

After splicing, put the fiber with heat-shrink sleeve into the heat oven. Press [HEAT]
button to execute heat-shrink process to strengthen the splice point.

Heating procedure

Open the heat oven lid.
•
Lift the left and right fiber holders on the splicer. Hold the heat-shrink sleeve
•
(previously placed onto the fiber). Lift the spliced fibers and hold them taut. Then
move the heat-shrink sleeve to the splice point.
Place the fiber with heat-shrink sleeve in the heat oven clamp.
•
Press [HEAT] button to start heating. Upon completion, the heating LED
•
indicator will go off with buzzing.
