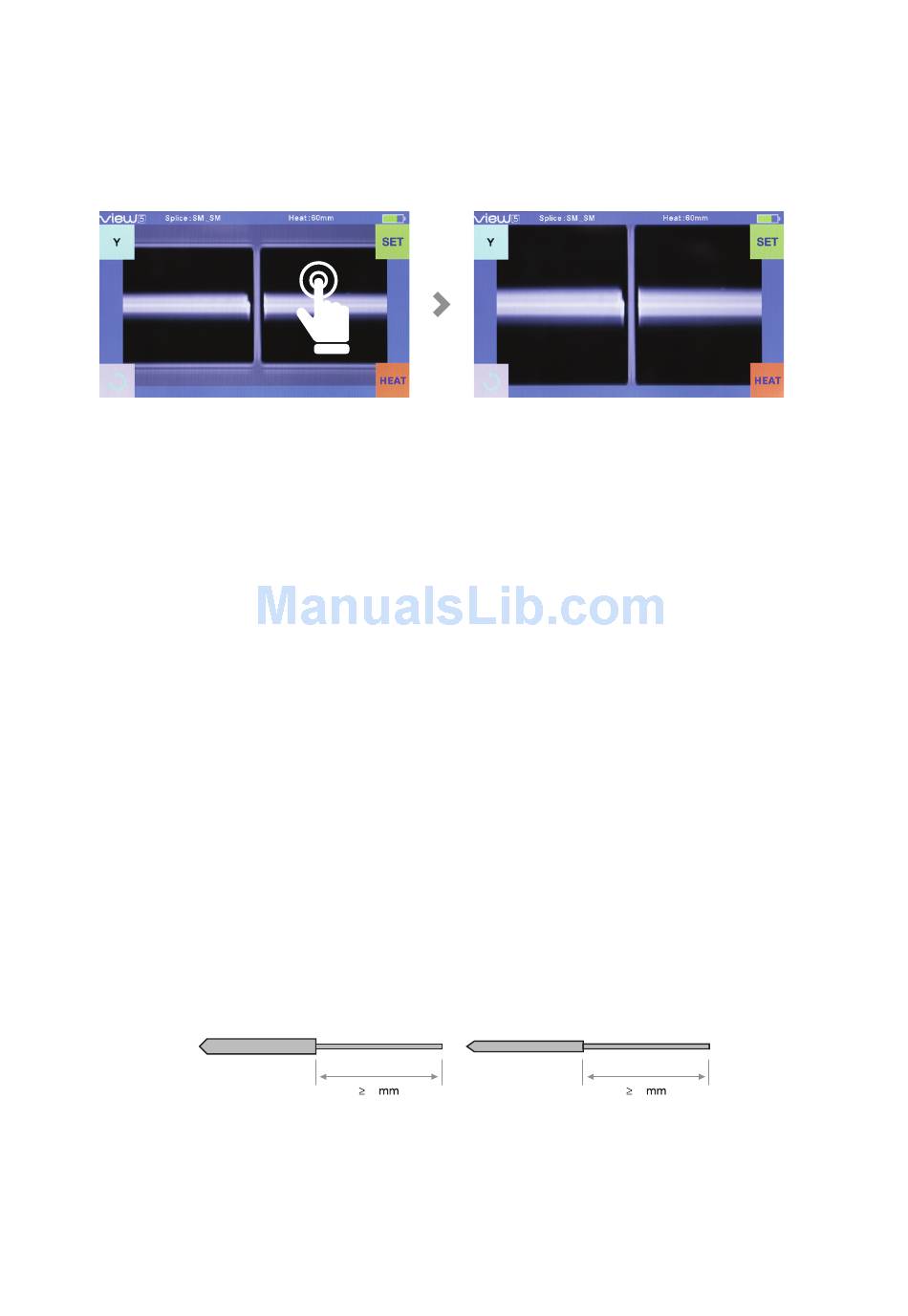

Fiber zoom function on screen

Users can zoom in the fiber image by double tapping on the screen so as to
observe the splicing result and check the splicing condition.

Preparing the fibers

3 Steps should be carried out before splicing:
Step 1: Strip the fiber
Remove at least 50mm of secondary coating (valid for both tight and loose tube
secondary coating) and approximately 30~40mm of primary coating with an
appropriate stripper.
Step 2: Clean the fiber
Clean bare fibers with pure alcohol-soaked gauze or lint-free tissue.
Step 3: Cleave the fiber
In order to ensure the best splicing result, cleave the fibers with high precision
cleaver such as INNO Instrument
cleaving lengths shown as below.
Note: Remember to slip a heat-shrink sleeve onto either end of the fibers at the
beginning of each fiber preparation.
Examples of cleaving lengths
Tight secondary coating
